TURCK Ni3-EG08-AN6X-V1131 4602850 Inductive sensor NPN
Limited time offer, ends 12/18 By Dazan Technology
- TURCK Ni3-EG08-AN6X-V1131 4602850 Inductive sensor NPN
+
+
Overview
Specs
Reviews
TURCK Ni3-EG08-AN6X-V1131 4602850 Inductive sensor NPN
Order number: 4602850

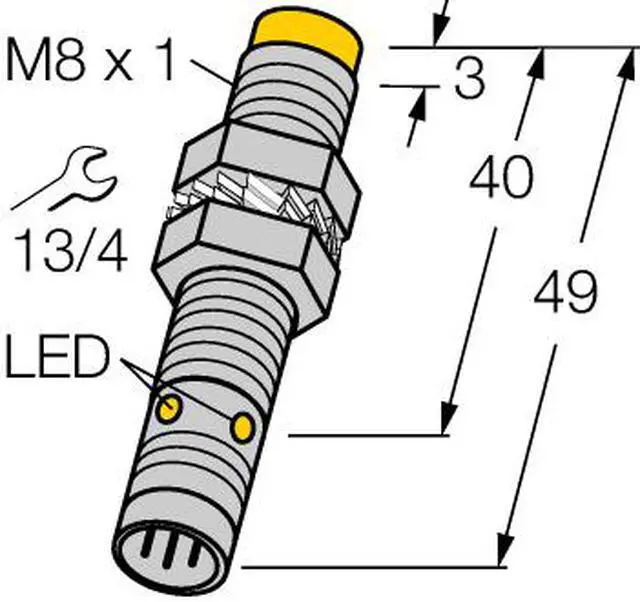

Threaded barrel, M8 x 1
Stainless steel, 1.4427 SO
DC 3-wire, 10…30 VDC
NO contact, NPN output
M8 x 1 male connector
EAN 4047101153361
eCl@ss-Code (V5.1.4): 27270101 -/- Inductive proximity switch
Customs tariff number 85365019
Country of origin CH
Weight 18 g
Technical Data
Design Threaded barrel
Construction size Threaded barrel, M8 × 1
Rated switching distance 3
Operating voltage DC
Switching element function NO contact
Output function NPN
Electrical connection Connector
Connector type M8 × 1
Housing material Stainless steel
Housing quality 1.4427 SO
Mounting Non-flush
Order number: 4602850
Threaded barrel, M8 x 1
Stainless steel, 1.4427 SO
DC 3-wire, 10…30 VDC
NO contact, NPN output
M8 x 1 male connector
EAN 4047101153361
eCl@ss-Code (V5.1.4): 27270101 -/- Inductive proximity switch
Customs tariff number 85365019
Country of origin CH
Weight 18 g
Technical Data
Design Threaded barrel
Construction size Threaded barrel, M8 × 1
Rated switching distance 3
Operating voltage DC
Switching element function NO contact
Output function NPN
Electrical connection Connector
Connector type M8 × 1
Housing material Stainless steel
Housing quality 1.4427 SO
Mounting Non-flush
