TURCK Ni20U-S30-AP6X-H1141 1646600 Inductive sensor PNP

TURCK Ni20U-S30-AP6X-H1141 1646600 Inductive sensor PNP
Order number: 1646600

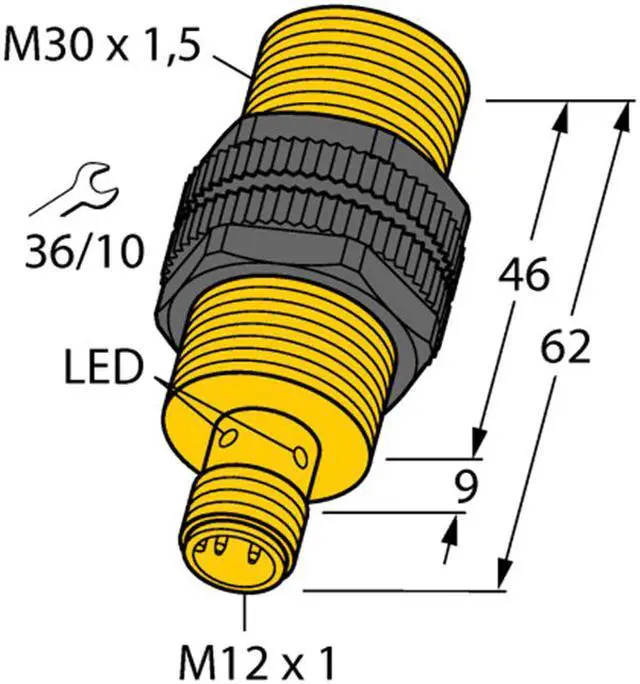

Threaded barrel, M30 x 1.5
Plastic, PBT-GF30
Factor 1 for all metals
Protection type IP67
Resistant to magnetic fields
Extended temperature range
High switching frequency
Auto-compensation protects against predamping
Laser engraving
DC 3-wire, 10…30 VDC
NO contact, PNP output
M12 x 1 male connector

EAN 4047101135527
eCl@ss-Code (V5.1.4): 27270101 -/- Inductive proximity switch
Customs tariff number 85365019
Country of origin DE
Weight 47 g
Technical Data
Design Threaded barrel
Construction size Threaded barrel, M30 × 1.5
Rated switching distance 20
Operating voltage DC
Switching element function NO contact
Output function PNP
Electrical connection Connector
Connector type M12 × 1
Housing material Plastic
Housing quality PBT-GF30
Mounting Non-flush
Special features uprox®+,-Factor 1,-Resistant to magnetic fields
