TURCK NI20U-M30-RP6X-H1141 1646130 Inductive sensor PNP

TURCK NI20U-M30-RP6X-H1141 1646130 Inductive sensor PNP
Order number: 1646130

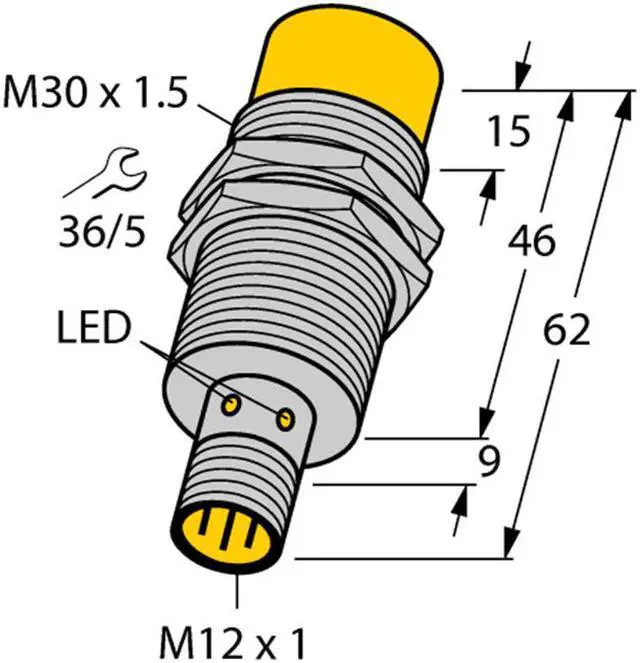

M30 × 1.5 threaded tube
Chrome-plated brass
Factor 1 for all metals
Protection class IP68
Resistant to magnetic fields
Extended temperature range
High switching frequency
DC 3-wire, 10…30 VDC
NC contact, PNP output
M12 x 1 male connector


Country of origin DE
Weight 92 g
Technical Data
Design Threaded barrel
Construction size Threaded barrel, M30 × 1.5
Rated switching distance 20
Operating voltage DC
Switching element function NC contact
Output function PNP
Electrical connection Connector
Connector type M12 × 1
Housing material Metal
Housing quality CuZn
Housing surface Chrome-plated
Mounting Non-flush
Special features uprox®+,-Factor 1,-Resistant to magnetic fields
