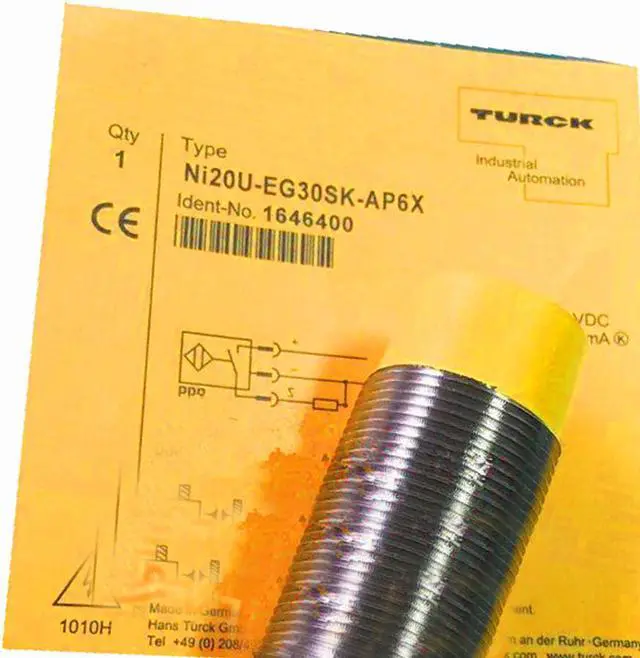

TURCK NI20U-EG30SK-AP6X 1646400 Inductive sensor PNP
- TURCK NI20U-EG30SK-AP6X 1646400 Inductive sensor PNP
+
+
Overview
Specs
Reviews
TURCK NI20U-EG30SK-AP6X 1646400 Inductive sensor PNP
Order number: 1646400

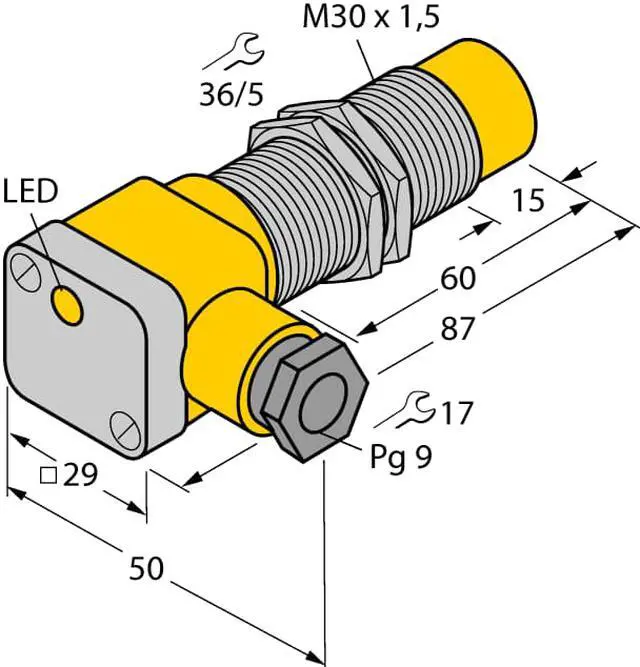

Threaded barrel, M30 x 1.5
Stainless steel, 1.4301
Factor 1 for all metals
Protection class IP68
Resistant to magnetic fields
Extended temperature range
High switching frequency
Auto-compensation protects against pre-attenuation
DC 3-wire, 10…30 VDC
NO contact, PNP output
Terminal chamber
Country of origin DE
Weight 123 g
Technical Data
Design Threaded barrel
Construction size Threaded barrel, M30 × 1.5
Rated switching distance 20
Operating voltage DC
Switching element function NO contact
Output function PNP
Electrical connection Terminal chamber
Housing material Stainless steel
Housing quality V2A (1.4301)
Mounting Non-flush
Special features uprox®+,-Factor 1,-Resistant to magnetic fields
Order number: 1646400
Threaded barrel, M30 x 1.5
Stainless steel, 1.4301
Factor 1 for all metals
Protection class IP68
Resistant to magnetic fields
Extended temperature range
High switching frequency
Auto-compensation protects against pre-attenuation
DC 3-wire, 10…30 VDC
NO contact, PNP output
Terminal chamber
Country of origin DE
Weight 123 g
Technical Data
Design Threaded barrel
Construction size Threaded barrel, M30 × 1.5
Rated switching distance 20
Operating voltage DC
Switching element function NO contact
Output function PNP
Electrical connection Terminal chamber
Housing material Stainless steel
Housing quality V2A (1.4301)
Mounting Non-flush
Special features uprox®+,-Factor 1,-Resistant to magnetic fields
