TURCK NI20-M30-AN6X-H1141 4670515 Inductive sensor NPN
- TURCK NI20-M30-AN6X-H1141 4670515 Inductive sensor NPN
+
+
Overview
Specs
Reviews
TURCK NI20-M30-AN6X-H1141 4670515 Inductive sensor NPN
Order number: 4670515

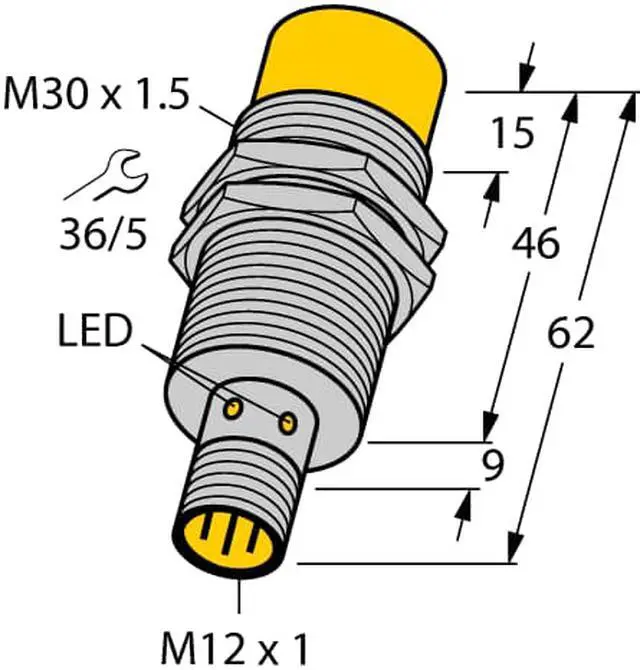

M30 × 1.5 threaded tube
Chrome-plated brass
Large sensing range
DC 3-wire, 10…30 VDC
NO contact, NPN output
M12 x 1 male connector
Country of origin None
Weight 112 g
Technical Data
Design Threaded barrel
Construction size Threaded barrel, M30 × 1.5
Rated switching distance 20
Operating voltage DC
Switching element function NO contact
Output function NPN
Electrical connection Connector
Connector type M12 × 1
Housing material Metal
Housing quality CuZn
Housing surface Chrome-plated
Mounting Non-flush
Special features Sn +
Order number: 4670515
M30 × 1.5 threaded tube
Chrome-plated brass
Large sensing range
DC 3-wire, 10…30 VDC
NO contact, NPN output
M12 x 1 male connector
Country of origin None
Weight 112 g
Technical Data
Design Threaded barrel
Construction size Threaded barrel, M30 × 1.5
Rated switching distance 20
Operating voltage DC
Switching element function NO contact
Output function NPN
Electrical connection Connector
Connector type M12 × 1
Housing material Metal
Housing quality CuZn
Housing surface Chrome-plated
Mounting Non-flush
Special features Sn +
