TURCK NI20-M30-ADZ30X2 4282810 Inductive sensor

TURCK NI20-M30-ADZ30X2 4282810 Inductive sensor
Order number: 4282810

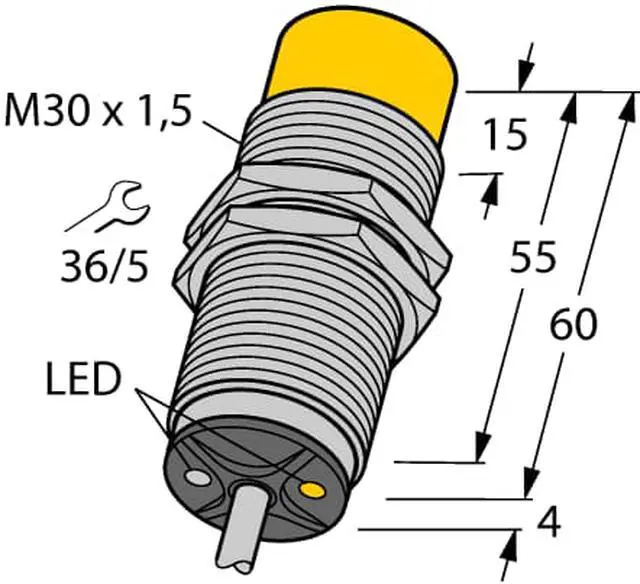

M30 × 1.5 threaded tube
Chrome-plated brass
Factor 1 for all metals
Protection class IP68
Resistant to magnetic fields
Extended temperature range
High switching frequency
AC 2-wire, 20250 VDC
DC 2-wire, 10300 VDC
NO contact
Cable connection

EAN 4047101136975
eCl@ss-Code (V 5.1. 4): 27270101 -/- Inductive proximity switch
Customs tariff number 85365080
Country of origin DE
Weight 182 g
Technical Data
Design Threaded barrel
Construction size Threaded barrel, M30 × 1.5
Rated switching distance 20
Operating voltage AC/DC
Switching element function NO contact
Electrical connection Cables
Housing material Metal
Housing quality CuZn
Housing surface Chrome-plated
Mounting Non-flush
Special features uprox®+, -Factor 1, -Resistant to magnetic fields
