TURCK NI20-CP40-Y1X 10111 Inductive sensor
- TURCK NI20-CP40-Y1X 10111 Inductive sensor
+
+
Overview
Specs
Reviews
TURCK NI20-CP40-Y1X 10111 Inductive sensor
Order number: 10111
Rectangular, height 40 mm
Variable orientation of active face in 9 directions
Plastic, PBT-GF30-V0
DC 2-wire, nom. 8.2 VDC
Output acc. to DIN EN 60947-5-6 (NAMUR)
Terminal chamber
Country of origin DE
Weight 234 g
Technical Data
Design Rectangular

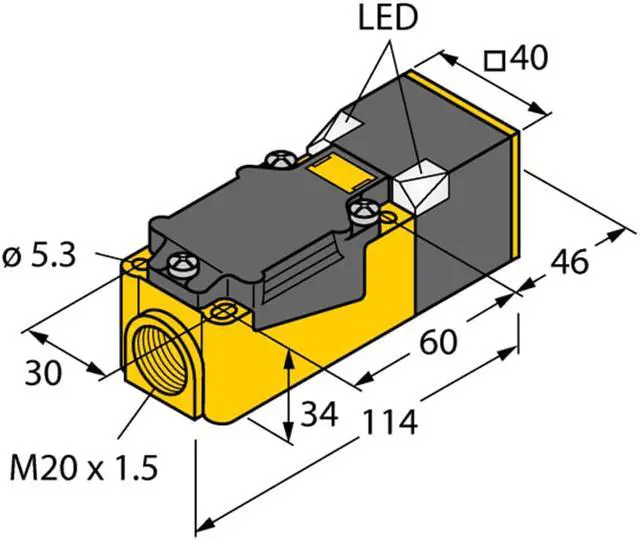

Construction size Rectangular, CP40, 114 x 40 x 40 mm
Rated switching distance 20
Operating voltage DC
Output function NAMUR
Electrical connection Terminal chamber
Housing material Plastic
Housing quality PBT-GF30-V0
Housing surface Black
Mounting Non-flush
Order number: 10111
Rectangular, height 40 mm
Variable orientation of active face in 9 directions
Plastic, PBT-GF30-V0
DC 2-wire, nom. 8.2 VDC
Output acc. to DIN EN 60947-5-6 (NAMUR)
Terminal chamber
Country of origin DE
Weight 234 g
Technical Data
Design Rectangular
Construction size Rectangular, CP40, 114 x 40 x 40 mm
Rated switching distance 20
Operating voltage DC
Output function NAMUR
Electrical connection Terminal chamber
Housing material Plastic
Housing quality PBT-GF30-V0
Housing surface Black
Mounting Non-flush
