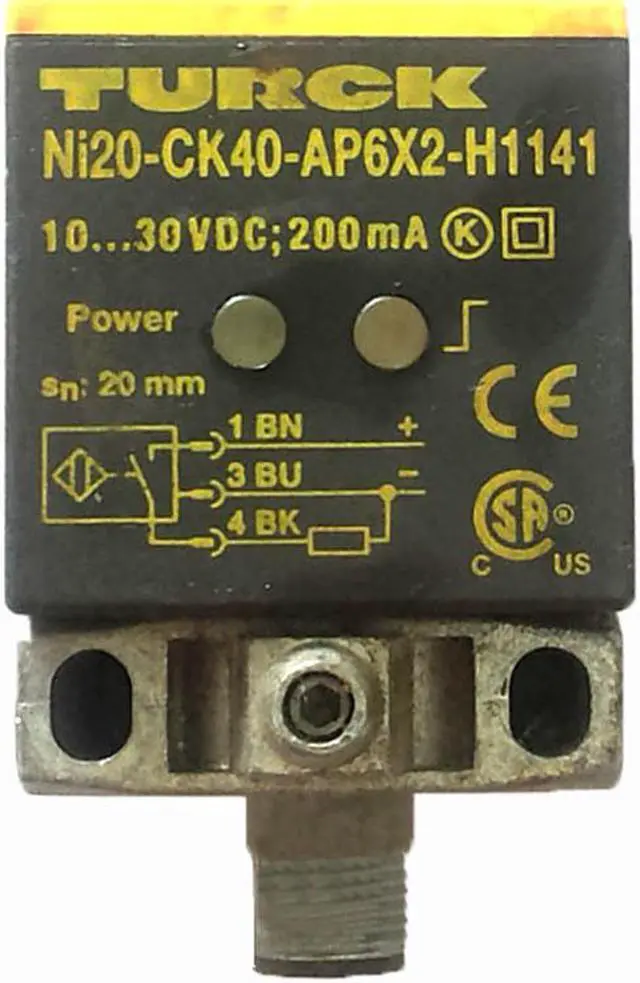

TURCK NI20-CK40-AP6X2-H1141 16252 Inductive sensor PNP

TURCK NI20-CK40-AP6X2-H1141 16252 Inductive sensor PNP
Order number: 16252
Rectangular, height 40 mm
Variable orientation of active face in 5 directions
Plastic, PBT-GF30-V0
High luminance corner LEDs
Optimum view on supply voltage and switching state from any position
DC 3-wire, 10…30 VDC
NO contact, PNP output
M12 x 1 male connector


Country of origin DE
Weight 206 g
Technical Data
Design Rectangular
Construction size Rectangular, CK40, 65 x 40 x 40 mm
Rated switching distance 20
Operating voltage DC
Switching element function NO contact
Output function PNP
Electrical connection Connector
Connector type M12 × 1
Housing material Plastic
Housing quality PBT-GF20-V0
Housing surface Black
Mounting Non-flush
