TURCK NI15U-EM18WD-AP6X-H1141 1634818 Inductive sensor PNP

TURCK NI15U-EM18WD-AP6X-H1141 1634818 Inductive sensor PNP\
Order number: 1634818

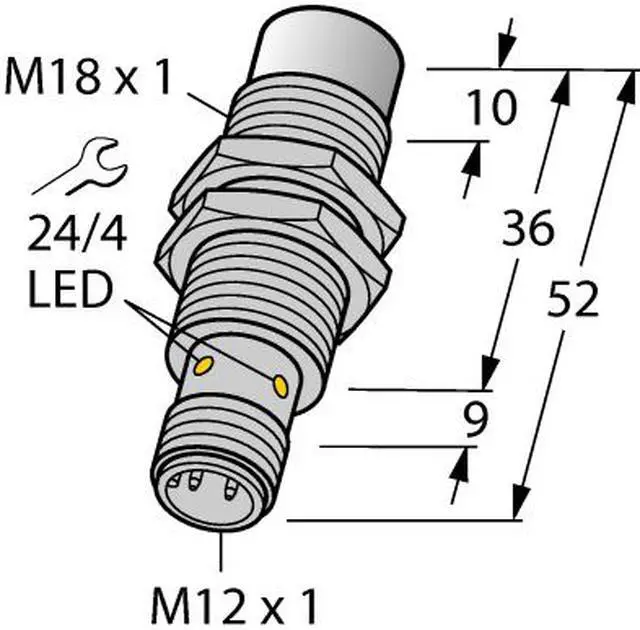

M18 × 1 threaded barrel
Stainless steel, 1.4404
Front cap made of liquid crystal polymer
Factor 1 for all metals
Resistant to magnetic fields
Temperatures -40 °C … +100 °C
High protection class IP69K, for harsh environments
Special double-lip seal
Protection against all common acid and alkaline cleaning agents
Laser engraved label, permanently legible
DC 3-wire, 10…30 VDC
NO contact, PNP output
M12 x 1 male connector

Country of origin DE
Weight 48 g
Technical Data
Design Threaded barrel
Construction size Threaded barrel, M18 × 1
Rated switching distance 15
Operating voltage DC
Switching element function NO contact
Output function PNP
Electrical connection Connector
Connector type M12 × 1
Housing material Stainless steel
Housing quality V4A (1.4404)
Mounting Non-flush
Special mechanical features 15 bar
Special features uprox®+,-Wash down,-Factor 1,-Sn +,-Resistant to magnetic fields
