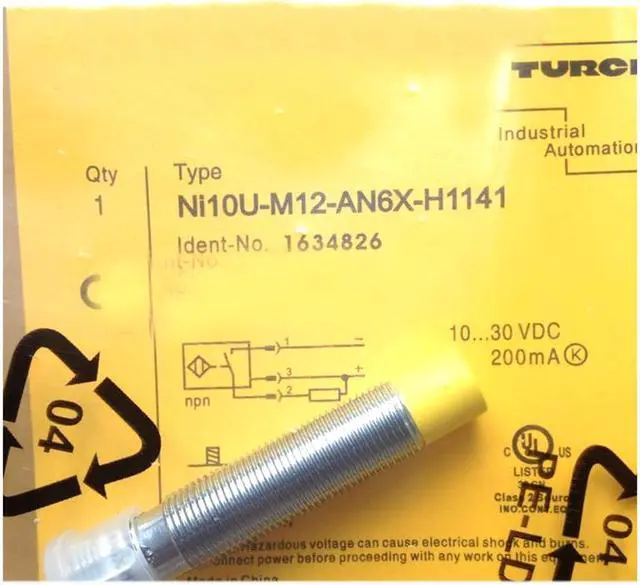

TURCK Ni10U-M12-AN6X-H1141 1634826 Inductive sensor NPN
- TURCK Ni10U-M12-AN6X-H1141 1634826 Inductive sensor NPN
+
+
Overview
Specs
Reviews
TURCK Ni10U-M12-AN6X-H1141 1634826 Inductive sensor NPN
Order number: 1634826

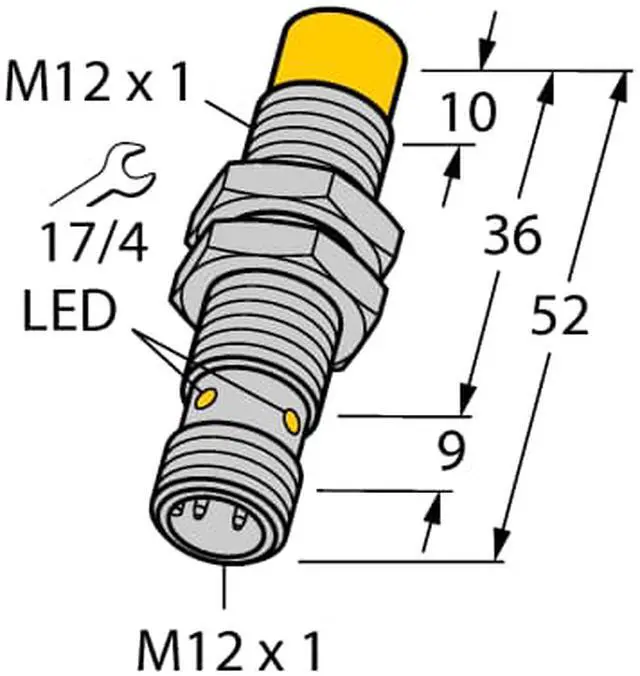

M12 × 1 threaded barrel
Chrome-plated brass
Factor 1 for all metals
Protection class IP68
Resistant to magnetic fields
Large switching distance
Integrated protection against pre-attenuation
Little metal-free spaces
DC 3-wire, 10…30 VDC
NO contact, NPN output
M12 x 1 male connector
Country of origin DE
Weight 30 g
Technical Data
Design Threaded barrel
Construction size Threaded barrel, M12 × 1
Rated switching distance 10
Operating voltage DC
Switching element function NO contact
Output function NPN
Electrical connection Connector
Connector type M12 × 1
Housing material Metal
Housing quality CuZn
Housing surface Chrome-plated
Mounting Non-flush
Special features uprox®+,-Factor 1,-Resistant to magnetic fields
Order number: 1634826
M12 × 1 threaded barrel
Chrome-plated brass
Factor 1 for all metals
Protection class IP68
Resistant to magnetic fields
Large switching distance
Integrated protection against pre-attenuation
Little metal-free spaces
DC 3-wire, 10…30 VDC
NO contact, NPN output
M12 x 1 male connector
Country of origin DE
Weight 30 g
Technical Data
Design Threaded barrel
Construction size Threaded barrel, M12 × 1
Rated switching distance 10
Operating voltage DC
Switching element function NO contact
Output function NPN
Electrical connection Connector
Connector type M12 × 1
Housing material Metal
Housing quality CuZn
Housing surface Chrome-plated
Mounting Non-flush
Special features uprox®+,-Factor 1,-Resistant to magnetic fields
