TURCK IM34-11EX-I 7506630 Temperature measuring amplifier
- TURCK IM34-11EX-I 7506630 Temperature measuring amplifier
+
+
Overview
Specs
Reviews
TURCK IM34-11EX-I 7506630 Temperature measuring amplifier

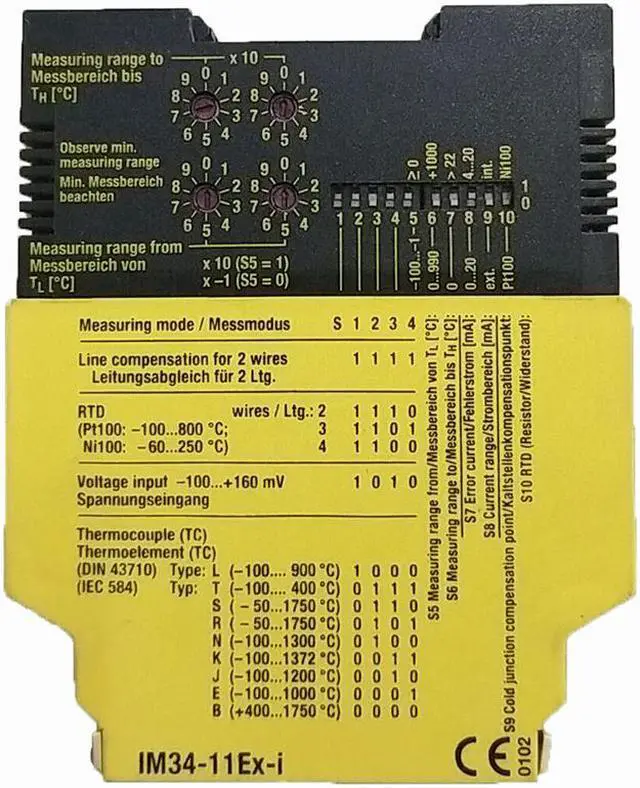

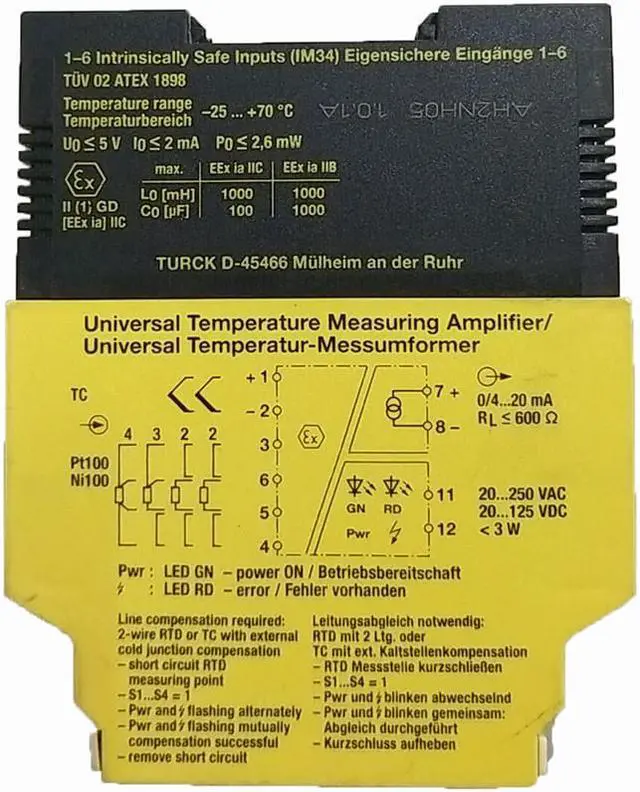

Order number: 7506630 Input for Pt100/ Ni100 resistors, thermocouples and millivolt signals in 2, 3 or 4-wire technology
Output circuit: 0/4…20 mA Upper and lower limit adjustable via rotary coding switch Complete galvanic isolation Input reverse-polarity protected Country of origin DE Weight 150 g Technical Data Signal type Temperature input Device type Temperature measuring amplifier Ex version yes Approvals ATEX, IECEx, UL, subscript c subscript FM subscript us subscript, TR CU, INMETRO, CCOE Nominal voltage Wide voltage range Protection class IP20 Product series IM
Order number: 7506630 Input for Pt100/ Ni100 resistors, thermocouples and millivolt signals in 2, 3 or 4-wire technology
Output circuit: 0/4…20 mA Upper and lower limit adjustable via rotary coding switch Complete galvanic isolation Input reverse-polarity protected Country of origin DE Weight 150 g Technical Data Signal type Temperature input Device type Temperature measuring amplifier Ex version yes Approvals ATEX, IECEx, UL, subscript c subscript FM subscript us subscript, TR CU, INMETRO, CCOE Nominal voltage Wide voltage range Protection class IP20 Product series IM
