TURCK DBI10U-M30-AP4X2 1582231 Inductive sensor PNP

TURCK DBI10U-M30-AP4X2 1582231 Inductive sensor PNP
Order number: 1582231

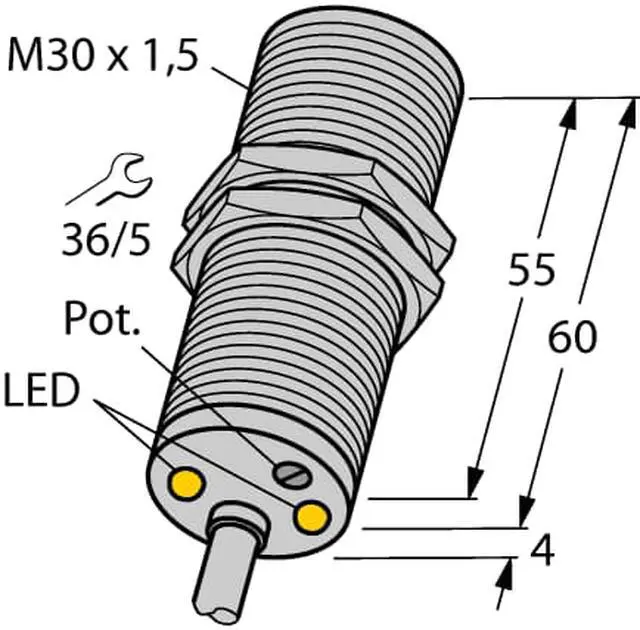

M30 × 1.5 threaded tube
Chrome-plated brass
Large monitoring range of 3 to 3000 1/min
Adjusted via potentiometer
Fixed start-up time delay 5 s
Resistant to magnetic fields

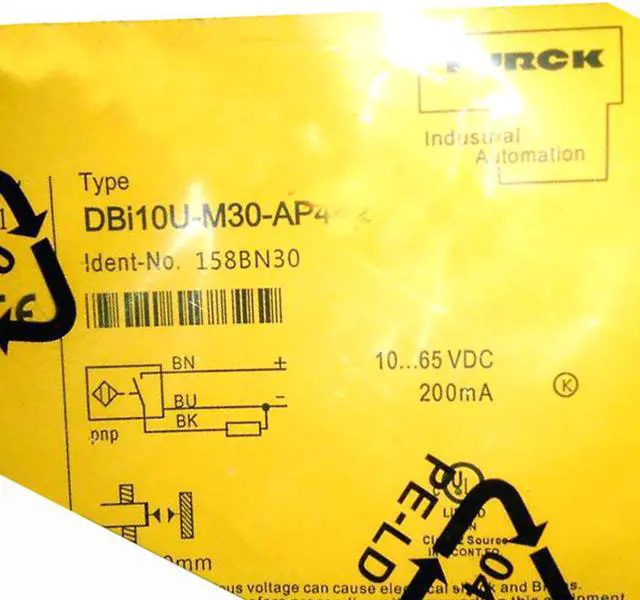

DC 3-wire, 10…65 VDC
NO contact, PNP output
Cable connection


Country of origin DE
Weight 197 g
Technical Data
Design Threaded barrel
Construction size Threaded barrel, M30 × 1.5
Rated switching distance 10
Operating voltage DC
Switching element function NO contact
Output function PNP
Electrical connection Cables
Housing material Metal
Housing quality CuZn
Housing surface Chrome-plated
Mounting Flush
Special features Rotation speed monitoring
