TURCK BIM-M12E-Y1X-H1141 1074003 Inductive sensor
Limited time offer, ends 12/18 By Dazan Technology
- TURCK BIM-M12E-Y1X-H1141 1074003 Inductive sensor
+
+
Overview
Specs
Reviews

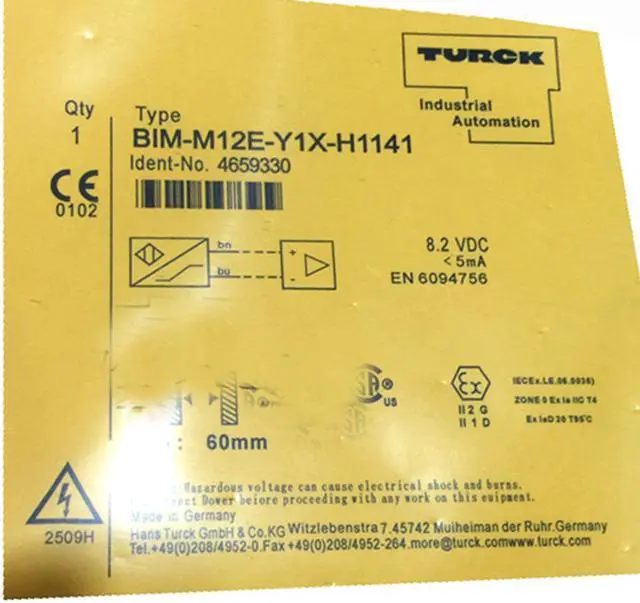

TURCK BIM-M12E-Y1X-H1141 1074003 Inductive sensor

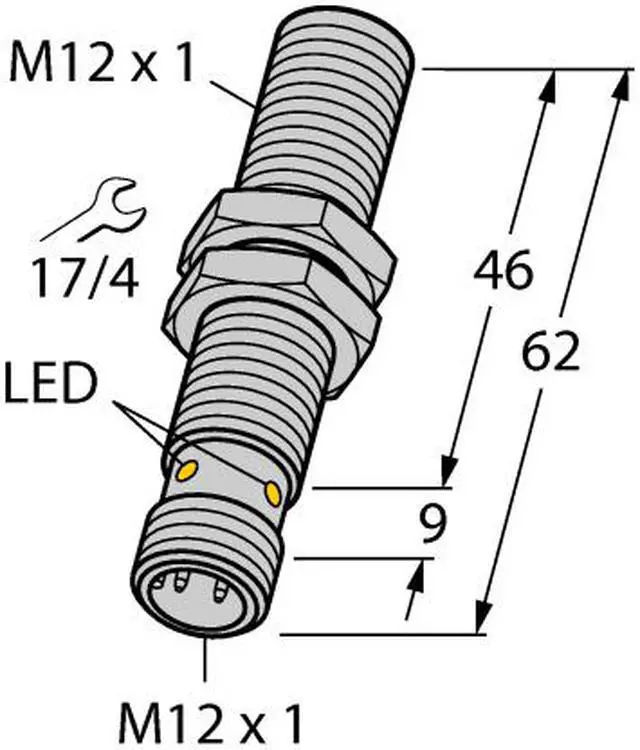

Order number: 1074003 Threaded barrel, M12 x 1 Chrome-plated brass Rated operating distance 90 mm with DMR31-15-5 magnet DC 2-wire, nom. 8.2 VDC Output acc. to DIN EN 60947-5-6 (NAMUR) Male connector M12 x 1 Country of origin DE Weight 48 g Technical Data Rated switching distance 90 Construction size Threaded barrel, M12 × 1 Design Threaded barrel Operating voltage DC Output function NAMUR Electrical connection Connector Connector type M12 × 1 Housing material Metal Special features Magnetic-inductive Approvals ATEX II 1G, ATEX II 2G, ATEX II 3G, ATEX II 1D, ATEX II 2D, ATEX II 3D, SIL2, PLc
Order number: 1074003 Threaded barrel, M12 x 1 Chrome-plated brass Rated operating distance 90 mm with DMR31-15-5 magnet DC 2-wire, nom. 8.2 VDC Output acc. to DIN EN 60947-5-6 (NAMUR) Male connector M12 x 1 Country of origin DE Weight 48 g Technical Data Rated switching distance 90 Construction size Threaded barrel, M12 × 1 Design Threaded barrel Operating voltage DC Output function NAMUR Electrical connection Connector Connector type M12 × 1 Housing material Metal Special features Magnetic-inductive Approvals ATEX II 1G, ATEX II 2G, ATEX II 3G, ATEX II 1D, ATEX II 2D, ATEX II 3D, SIL2, PLc
