TURCK BI8U-M18E-AP6X-H1141 1644735 Inductive sensor PNP
- TURCK BI8U-M18E-AP6X-H1141 1644735 Inductive sensor PNP
+
+
Overview
Specs
Reviews
TURCK BI8U-M18E-AP6X-H1141 1644735 Inductive sensor PNP
Order number: 1644735

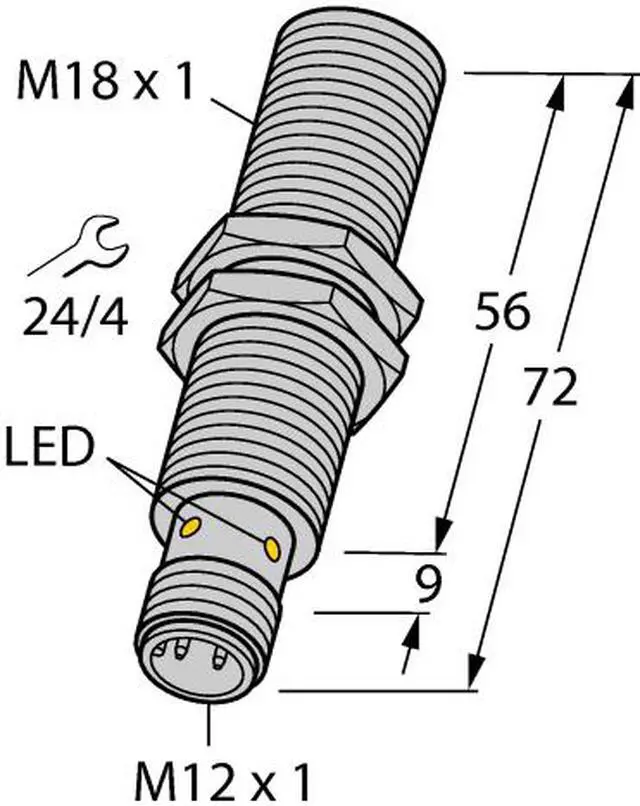

Threaded barrel, M18 x 1
Chrome-plated brass
Factor 1 for all metals
Protection class IP68
Resistant to magnetic fields
Large switching distance
Recessed mountable
DC 3-wire, 10…30 VDC
NO contact, PNP output
M12 x 1 male connector
Country of origin None
Weight 57 g
Technical Data
Design Threaded barrel
Construction size Threaded barrel, M18 × 1
Rated switching distance 8
Operating voltage DC
Switching element function NO contact
Output function PNP
Electrical connection Connector
Connector type M12 × 1
Housing material Metal
Housing quality CuZn
Housing surface Chrome-plated
Mounting Flush
Special features uprox®+,-Factor 1,-Resistant to magnetic fields
Order number: 1644735
Threaded barrel, M18 x 1
Chrome-plated brass
Factor 1 for all metals
Protection class IP68
Resistant to magnetic fields
Large switching distance
Recessed mountable
DC 3-wire, 10…30 VDC
NO contact, PNP output
M12 x 1 male connector
Country of origin None
Weight 57 g
Technical Data
Design Threaded barrel
Construction size Threaded barrel, M18 × 1
Rated switching distance 8
Operating voltage DC
Switching element function NO contact
Output function PNP
Electrical connection Connector
Connector type M12 × 1
Housing material Metal
Housing quality CuZn
Housing surface Chrome-plated
Mounting Flush
Special features uprox®+,-Factor 1,-Resistant to magnetic fields
