TURCK BI5U-M18E-AP6X 1635101 Inductive sensor PNP

TURCK BI5U-M18E-AP6X 1635101 Inductive sensor PNP
Order number: 1635101

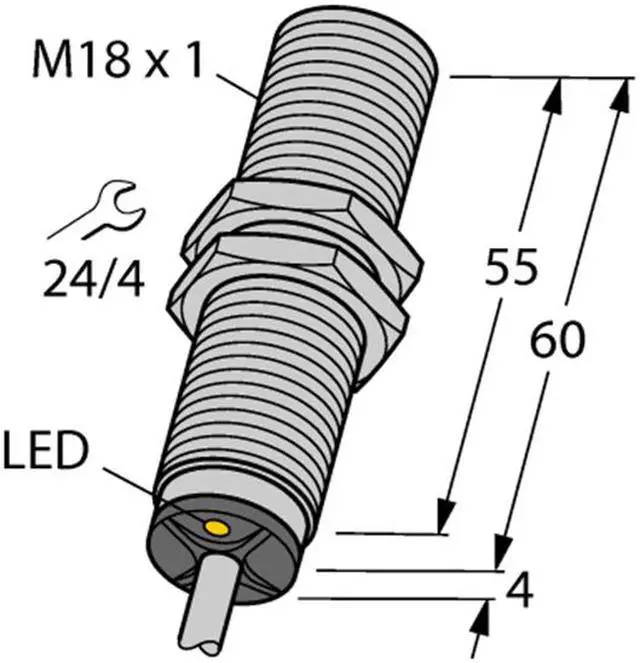

Threaded barrel, M18 x 1
Chrome-plated brass
Factor 1 for all metals
Protection class IP68
Resistant to magnetic fields
Extended temperature range
High switching frequency
DC 3-wire, 1030 VDC
NO contact, PNP output
Cable connection


Country of origin None
Weight 129 g
Technical Data
Design Threaded barrel
Construction size Threaded barrel, M18 × 1
Rated switching distance 5
Operating voltage DC
Switching element function NO contact
Output function PNP
Electrical connection Cables
Housing material Metal
Housing quality CuZn
Housing surface Chrome-plated
Mounting Flush
Special features uprox®+, -Factor 1, -Resistant to magnetic fields
