TURCK BI5-P18-Y1X/S97 4035001 Inductive sensor
- TURCK BI5-P18-Y1X/S97 4035001 Inductive sensor
+
+
Overview
Specs
Reviews

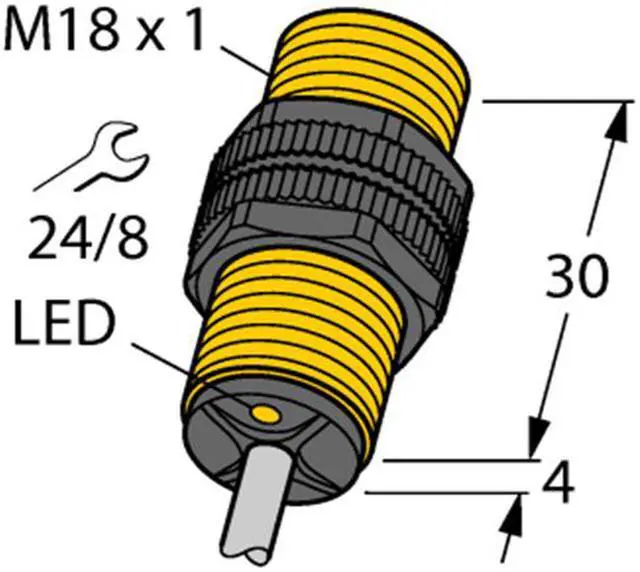

TURCK BI5-P18-Y1X/S97 4035001 Inductive sensor
Order number: 4035001
Threaded barrel, M18 x 1
Plastic, PA12-GF30-V0
Temperatures up to -40 °C
DC 2-wire, nom. 8.2 VDC
Output acc. to DIN EN 60947-5-6 (NAMUR)
Cable connection
Country of origin DE
Weight 107 g
Technical Data
Design Threaded barrel
Construction size Threaded barrel, M18 × 1
Rated switching distance 5
Operating voltage DC
Output function NAMUR
Electrical connection Cables
Housing material Plastic
Housing quality PA12-GF30
Mounting Flush
Approvals ATEX II 2G, ATEX II 3G, ATEX II 1D, ATEX II 2D, ATEX II 3D, SIL2, PLc
Order number: 4035001
Threaded barrel, M18 x 1
Plastic, PA12-GF30-V0
Temperatures up to -40 °C
DC 2-wire, nom. 8.2 VDC
Output acc. to DIN EN 60947-5-6 (NAMUR)
Cable connection
Country of origin DE
Weight 107 g
Technical Data
Design Threaded barrel
Construction size Threaded barrel, M18 × 1
Rated switching distance 5
Operating voltage DC
Output function NAMUR
Electrical connection Cables
Housing material Plastic
Housing quality PA12-GF30
Mounting Flush
Approvals ATEX II 2G, ATEX II 3G, ATEX II 1D, ATEX II 2D, ATEX II 3D, SIL2, PLc
