TURCK BI5-M18-Y1X-H1141 40152 Inductive sensor
- TURCK BI5-M18-Y1X-H1141 40152 Inductive sensor
+
+
Overview
Specs
Reviews

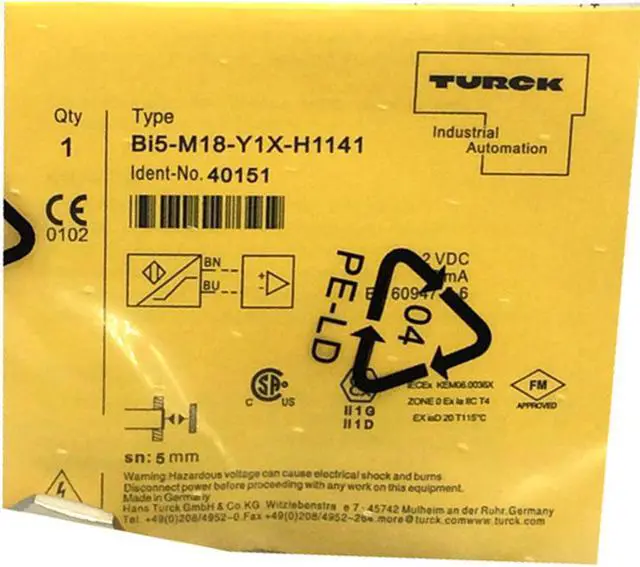

TURCK BI5-M18-Y1X-H1141 40152 Inductive sensor
Order number: 40152

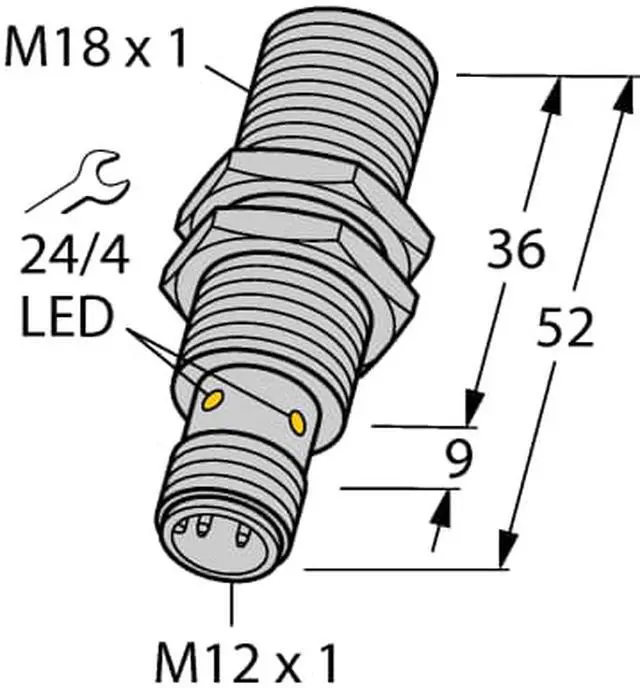

Threaded barrel, M18 x 1
Chrome-plated brass
DC 2-wire, nom. 8.2 VDC
Output acc. to DIN EN 60947-5-6 (NAMUR)
M12 x 1 male connector
Country of origin None
Weight 66 g
Technical Data
Design Threaded barrel
Construction size Threaded barrel, M18 × 1
Rated switching distance 5
Operating voltage DC
Output function NAMUR
Electrical connection Connector
Connector type M12 × 1
Housing material Metal
Housing quality CuZn
Housing surface Chrome-plated
Mounting Flush
Approvals ATEX II 1G, ATEX II 2G, ATEX II 3G, ATEX II 1D, ATEX II 2D, ATEX II 3D, SIL2, PLc
Order number: 40152
Threaded barrel, M18 x 1
Chrome-plated brass
DC 2-wire, nom. 8.2 VDC
Output acc. to DIN EN 60947-5-6 (NAMUR)
M12 x 1 male connector
Country of origin None
Weight 66 g
Technical Data
Design Threaded barrel
Construction size Threaded barrel, M18 × 1
Rated switching distance 5
Operating voltage DC
Output function NAMUR
Electrical connection Connector
Connector type M12 × 1
Housing material Metal
Housing quality CuZn
Housing surface Chrome-plated
Mounting Flush
Approvals ATEX II 1G, ATEX II 2G, ATEX II 3G, ATEX II 1D, ATEX II 2D, ATEX II 3D, SIL2, PLc
