TURCK BI15U-Q20-AN6X2 1608810 Inductive sensor NPN

TURCK BI15U-Q20-AN6X2 1608810 Inductive sensor NPN
Order number: 1608810
Rectangular, height 20 mm
Active face on top
Plastic, PBT-GF30-V0
Factor 1 for all metals
Resistant to magnetic fields
Extended temperature range
High switching frequency
DC 3-wire, 10…30 VDC
NO contact, NPN output
Cable connection

Country of origin DE
Weight 156 g
Technical Data
Design Rectangular

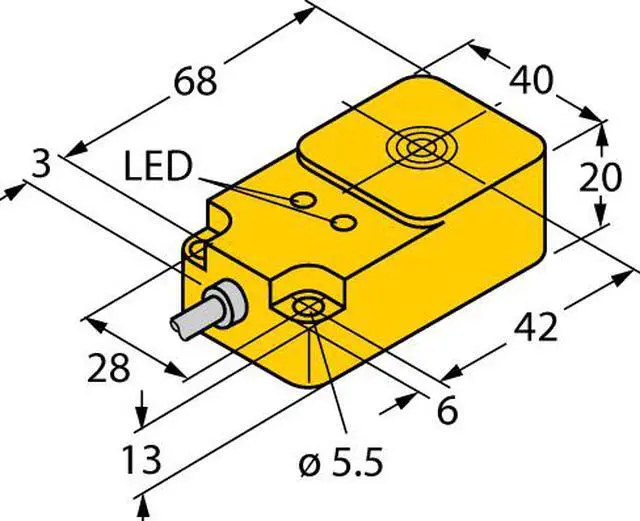

Construction size Rectangular, Q20, 68 x 40 x 20 mm
Rated switching distance 15
Operating voltage DC
Switching element function NO contact
Output function NPN
Electrical connection Cables
Housing material Plastic
Housing quality PBT-GF30-V0
Mounting Flush
Special features uprox®+,-Factor 1,-Resistant to magnetic fields
