TURCK BI15-CP40-LIU 15356 Inductive sensor
- TURCK BI15-CP40-LIU 15356 Inductive sensor
+
+
Overview
Specs
Reviews

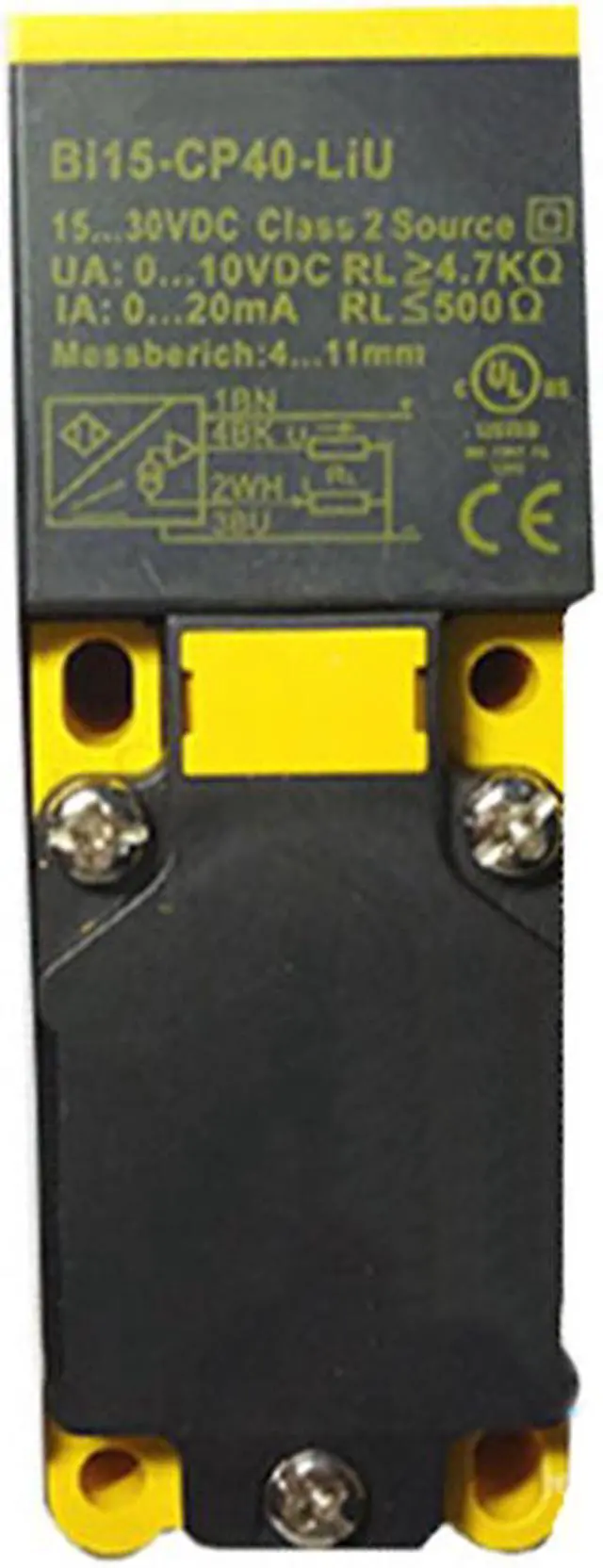

TURCK BI15-CP40-LIU 15356 Inductive sensor
Order number: 15356
Rectangular, height 40 mm
Variable orientation of active face in 9 directions
Plastic, PBT-GF30-V0
4-wire, 15…30 VDC
Analog output
0…10 V and 0…20 mA
Terminal chamber
Country of origin DE
Weight 233 g
Technical Data
Design Rectangular

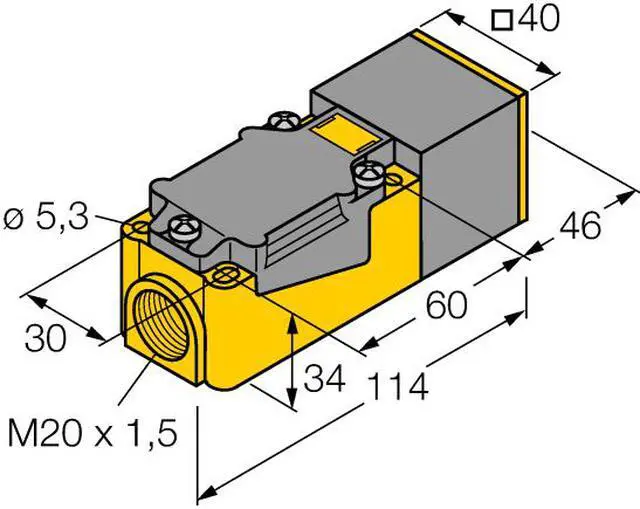

Construction size Rectangular, CP40, 114 x 40 x 40 mm
Rated switching distance 15
Max. measuring range 11
Operating voltage DC
Output function Analog output
Electrical connection Terminal chamber
Housing material Plastic
Housing quality PBT-GF30-V0
Housing surface Black
Mounting Flush
Order number: 15356
Rectangular, height 40 mm
Variable orientation of active face in 9 directions
Plastic, PBT-GF30-V0
4-wire, 15…30 VDC
Analog output
0…10 V and 0…20 mA
Terminal chamber
Country of origin DE
Weight 233 g
Technical Data
Design Rectangular
Construction size Rectangular, CP40, 114 x 40 x 40 mm
Rated switching distance 15
Max. measuring range 11
Operating voltage DC
Output function Analog output
Electrical connection Terminal chamber
Housing material Plastic
Housing quality PBT-GF30-V0
Housing surface Black
Mounting Flush
