TURCK BI10U-M30-AP6X-H1141 1636140 Inductive sensor PNP
- TURCK BI10U-M30-AP6X-H1141 1636140 Inductive sensor PNP
+
+
Overview
Specs
Reviews
TURCK BI10U-M30-AP6X-H1141 1636140 Inductive sensor PNP
Order number: 1636140

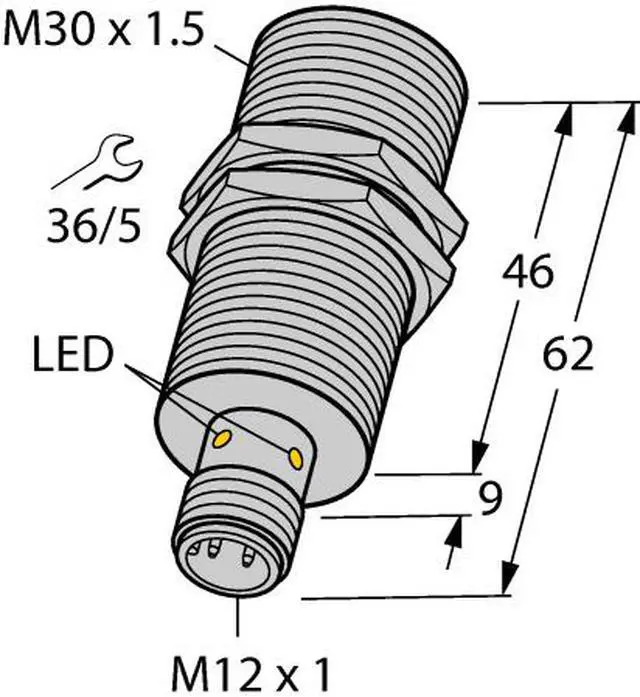

M30 × 1.5 threaded tube
Chrome-plated brass
Factor 1 for all metals
Protection class IP68
Resistant to magnetic fields
Extended temperature range
High switching frequency
DC 3-wire, 10…30 VDC
NO contact, PNP output
M12 x 1 male connector
Country of origin DE
Weight 104 g
Technical Data
Design Threaded barrel
Construction size Threaded barrel, M30 × 1.5
Rated switching distance 10
Operating voltage DC
Switching element function NO contact
Output function PNP
Electrical connection Connector
Connector type M12 × 1
Housing material Metal
Housing quality CuZn
Housing surface Chrome-plated
Mounting Flush
Special features uprox®+,-Factor 1,-Resistant to magnetic fields
Order number: 1636140
M30 × 1.5 threaded tube
Chrome-plated brass
Factor 1 for all metals
Protection class IP68
Resistant to magnetic fields
Extended temperature range
High switching frequency
DC 3-wire, 10…30 VDC
NO contact, PNP output
M12 x 1 male connector
Country of origin DE
Weight 104 g
Technical Data
Design Threaded barrel
Construction size Threaded barrel, M30 × 1.5
Rated switching distance 10
Operating voltage DC
Switching element function NO contact
Output function PNP
Electrical connection Connector
Connector type M12 × 1
Housing material Metal
Housing quality CuZn
Housing surface Chrome-plated
Mounting Flush
Special features uprox®+,-Factor 1,-Resistant to magnetic fields
