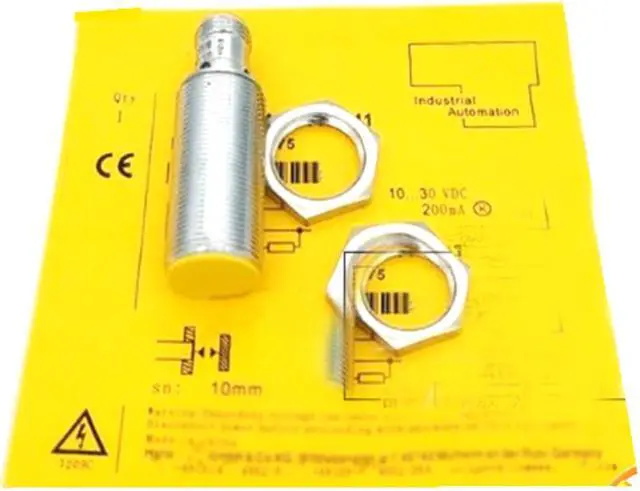

TURCK BI10-S30-AP6X-H1141 1636600 Inductive sensor PNP

TURCK BI10-S30-AP6X-H1141 1636600 Inductive sensor PNP
Order number: 1636600
Threaded barrel, M30 x 1.5
Plastic, PBT-GF30
Factor 1 for all metals
Protection class IP68
Resistant to magnetic fields
Extended temperature range
High switching frequency
DC 3-wire, 10…30 VDC
NO contact, PNP output
M12 x 1 male connector

EAN 4047101131956
eCl@ss-Code (V5.1.4): 27270101 -/- Inductive proximity switch
Customs tariff number 85365019
Country of origin DE
Weight 49 g
Technical Data
Design Threaded barrel
Construction size Threaded barrel, M30 × 1.5
Rated switching distance 10
Operating voltage DC
Switching element function NO contact
Output function PNP
Electrical connection Connector
Connector type M12 × 1
Housing material Plastic
Housing quality PBT-GF30
Mounting Flush
Special features uprox®+,-Factor 1,-Resistant to magnetic fields
