TURCK BI10-M30-AP6X 1636100 Inductive sensor PNP
- TURCK BI10-M30-AP6X 1636100 Inductive sensor PNP
+
+
Overview
Specs
Reviews
TURCK BI10-M30-AP6X 1636100 Inductive sensor PNP
Order number: 1636100

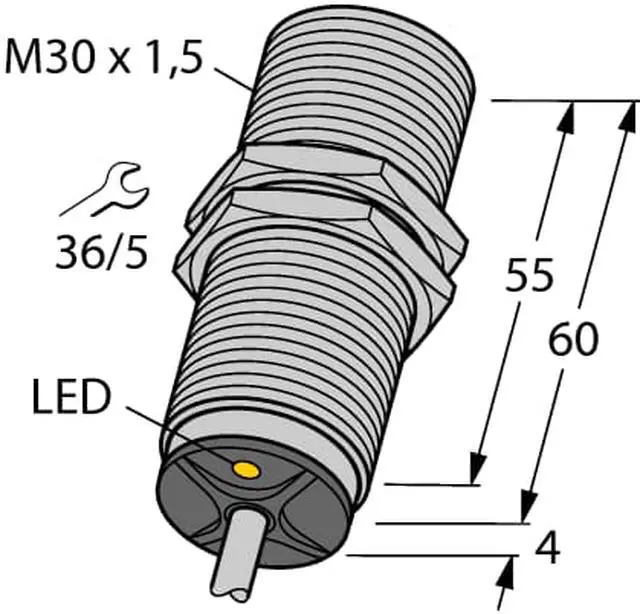

M30 × 1.5 threaded tube
Chrome-plated brass
Factor 1 for all metals
Protection class IP68
Resistant to magnetic fields
Extended temperature range
High switching frequency
DC 3-wire, 10…30 VDC
NO contact, PNP output
Cable connection
EAN 4047101131345
eCl@ss-Code (V5.1.4): 27270101 -/- Inductive proximity switch
Customs tariff number 85365019
Country of origin DE
Weight 183 g
Technical Data
Design Threaded barrel
Construction size Threaded barrel, M30 × 1.5
Rated switching distance 10
Operating voltage DC
Switching element function NO contact
Output function PNP
Electrical connection Cables
Housing material Metal
Housing quality CuZn
Housing surface Chrome-plated
Mounting Flush
Special features uprox®+,-Factor 1,-Resistant to magnetic fields
Order number: 1636100
M30 × 1.5 threaded tube
Chrome-plated brass
Factor 1 for all metals
Protection class IP68
Resistant to magnetic fields
Extended temperature range
High switching frequency
DC 3-wire, 10…30 VDC
NO contact, PNP output
Cable connection
EAN 4047101131345
eCl@ss-Code (V5.1.4): 27270101 -/- Inductive proximity switch
Customs tariff number 85365019
Country of origin DE
Weight 183 g
Technical Data
Design Threaded barrel
Construction size Threaded barrel, M30 × 1.5
Rated switching distance 10
Operating voltage DC
Switching element function NO contact
Output function PNP
Electrical connection Cables
Housing material Metal
Housing quality CuZn
Housing surface Chrome-plated
Mounting Flush
Special features uprox®+,-Factor 1,-Resistant to magnetic fields
