TURCK BC10-M30K-VP4X 2503022 Inductive sensor PNP
- TURCK BC10-M30K-VP4X 2503022 Inductive sensor PNP
+
+
Overview
Specs
Reviews
TURCK BC10-M30K-VP4X 2503022 Inductive sensor PNP
Order number: 2503022

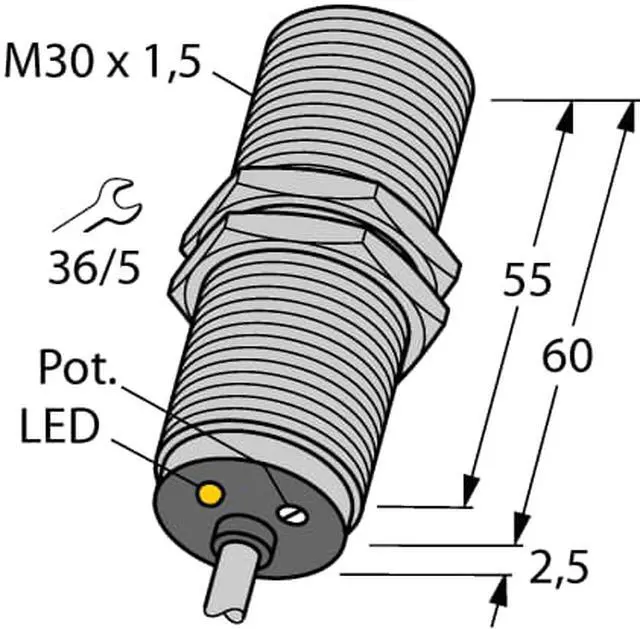

M30 × 1.5 threaded barrel
Chrome-plated brass
Fine adjustment via potentiometer
DC 4-wire, 10…65 VDC
Complementary contact, PNP output
Cable connection
Country of origin DE
Weight 210 g
Technical Data
Construction size Threaded barrel, M30 × 1.5
Rated switching distance (flush) 10 mm
Operating voltage DC
Switching element function Complementary contact
Output function PNP
Electrical connection Cables
Housing material Metal
Housing quality CuZn
Housing surface Chrome-plated
Approvals cULus
Order number: 2503022
M30 × 1.5 threaded barrel
Chrome-plated brass
Fine adjustment via potentiometer
DC 4-wire, 10…65 VDC
Complementary contact, PNP output
Cable connection
Country of origin DE
Weight 210 g
Technical Data
Construction size Threaded barrel, M30 × 1.5
Rated switching distance (flush) 10 mm
Operating voltage DC
Switching element function Complementary contact
Output function PNP
Electrical connection Cables
Housing material Metal
Housing quality CuZn
Housing surface Chrome-plated
Approvals cULus
