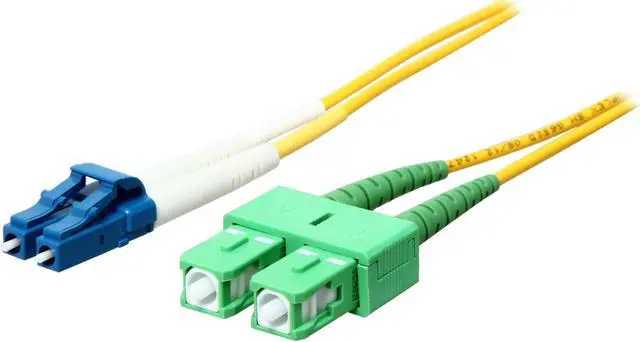

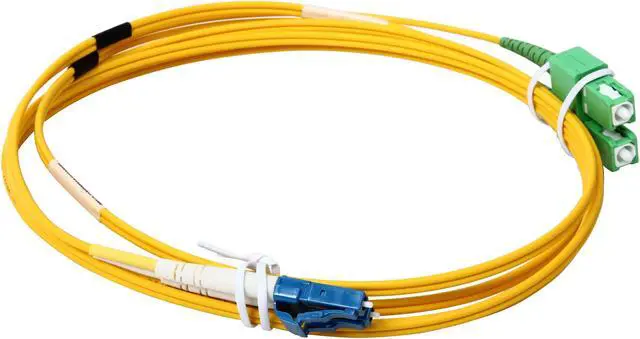

Tripp Lite's 2-meter, single mode duplex fiber optic LC to SC/APC patch cable is manufactured from 8.3/125 zipcord fiber. The cable has SC Angle Physical Polish connectors on one end, LC connectors on the other, a PVC jacket, and is FDDI and OFNR rated. Duplex single mode fiber is most commonly used in LAN applications. The Angled connector face prevents light entering the fiber to bounce back into the laser, destabilizing it. Check your fiber transceivers user manual to see if an APC cable is warranted. Tripp Lite warrants this product to be free from defects in materials and workmanship for life.
Learn more about the Tripp Lite N366-02M-AP
Model| Brand | Tripp Lite |
|---|
| Model | N366-02M-AP |
|---|
| Type | Others |
|---|
| Type | Fiber Optic |
|---|
Details| Length | 6 ft. |
|---|
| Connector Number | 4 |
|---|
| Connector Detail | Connector A: LC Connector B: SC/APC |
|---|
| Specifications | Clad Diameter: 125
Core Diameter: 8.3
Fiber Type: Singlemode
Number of Fibers:2
PVC: jacket
Intended Application: Computer Networking (Fiber)
Typical Applications: Networking equipment that requires single mode fiber optic patch cables as well as Angle Physical Contact (APC) connectors

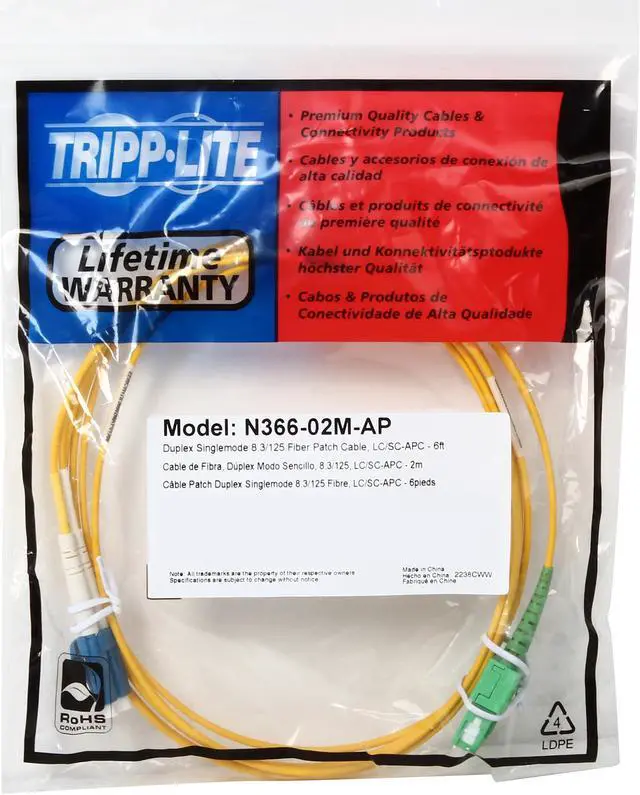

Package Includes: 2 Meter (6-ft.) Duplex SMF 8.3/125 Patch Cable, LC to SC/APC IEEE 802.3ae and TIA LOMMF compliant |
|---|
Features| Features | LC to SC/APC (Angle Physical Contact), 2 Meter Fiber Patch cable
Manufactured from 8.3/125 duplex (zipcord) fiber
Insertion loss testing performed on every connector (0.2db typical) and provided with cable
Beveled edge on ends of glass makes insertion of plug a breeze
Fiber made from glass (not a polymer)
Color coded shrouds identify transmit and receive
Fiber optic distributed data interface (FDDI) rated
OFNR (riser rated) |
|---|
Additional Information| First Listed on Newegg | April 03, 2025 |
|---|
