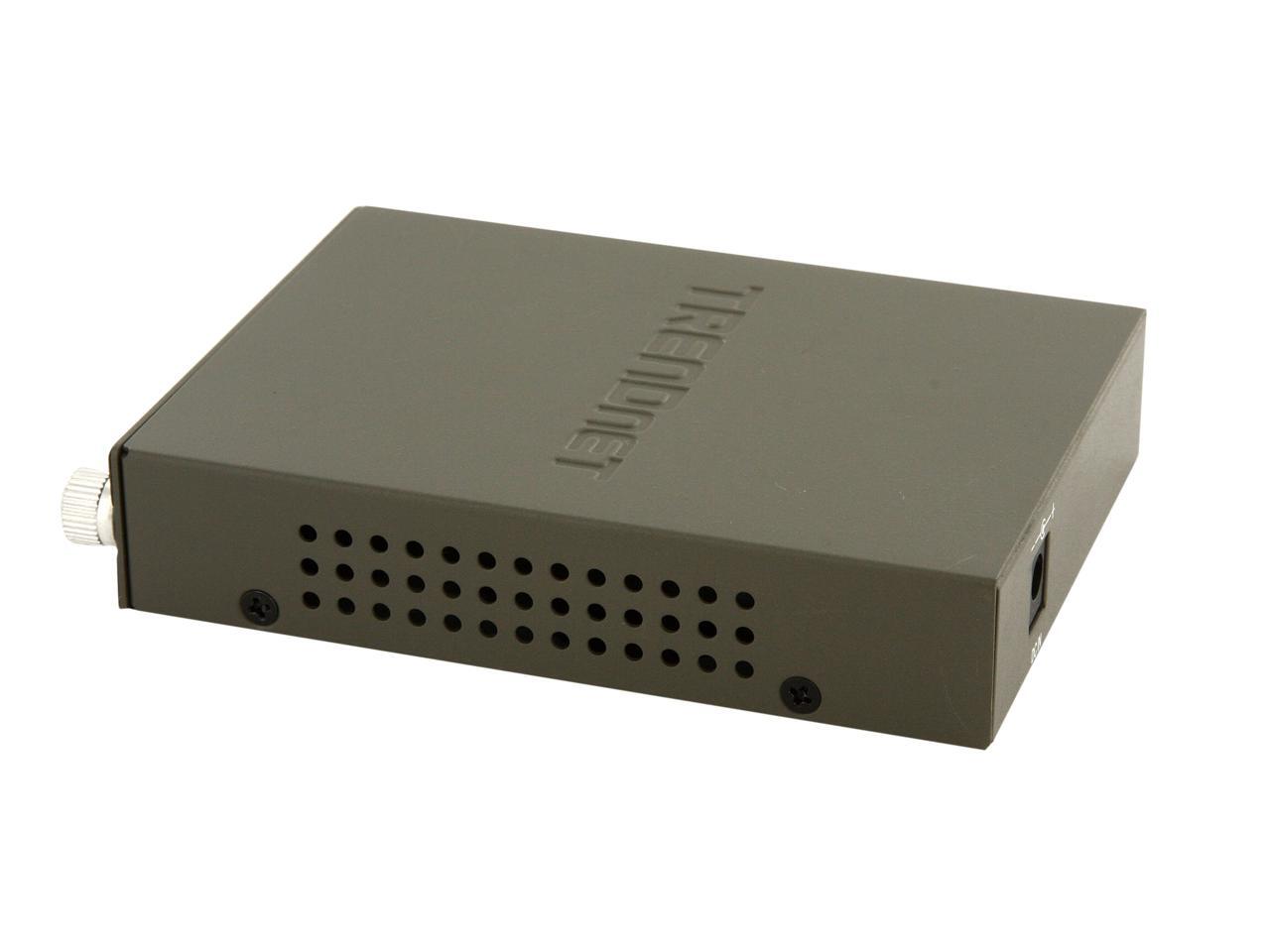

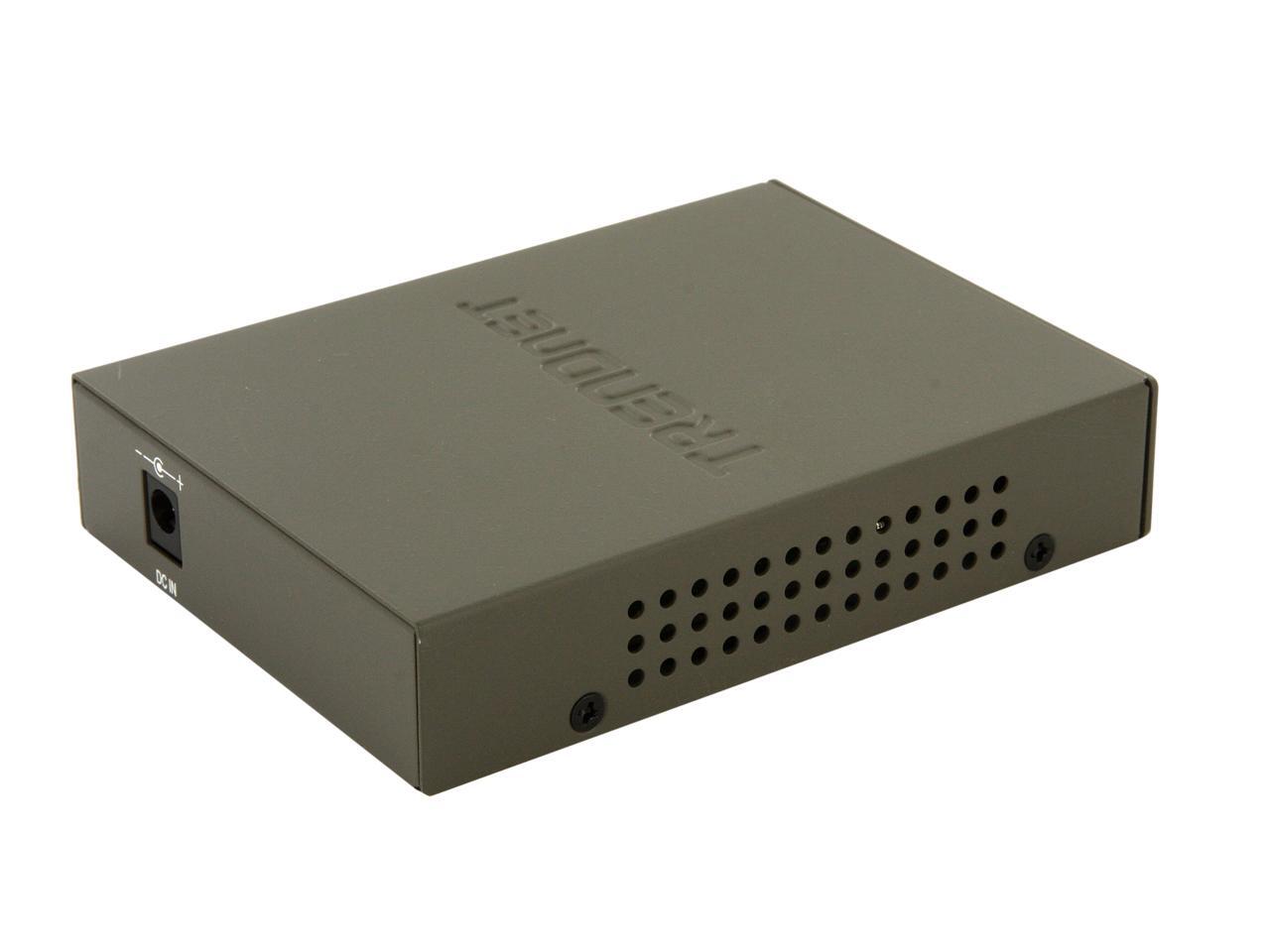

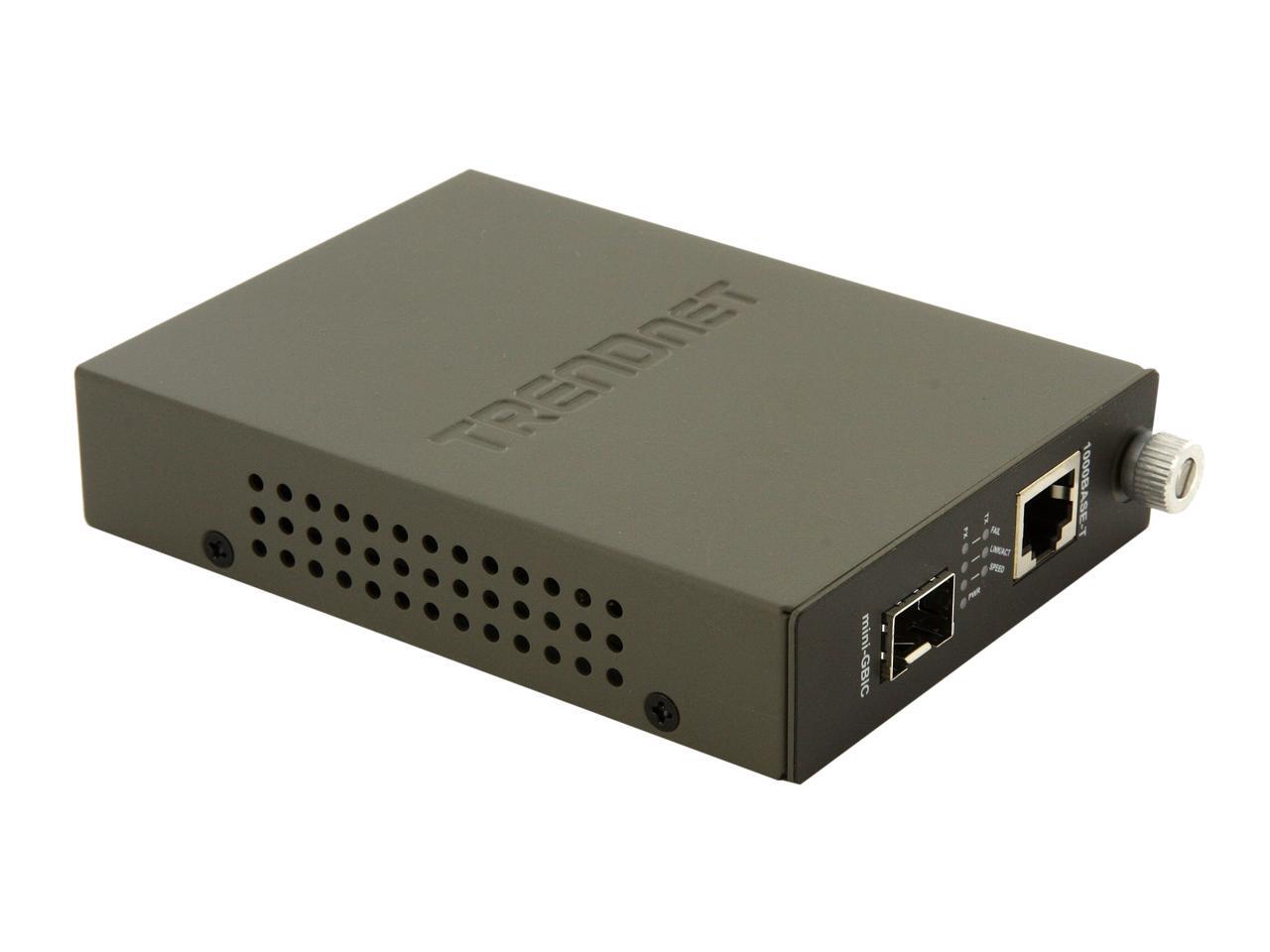

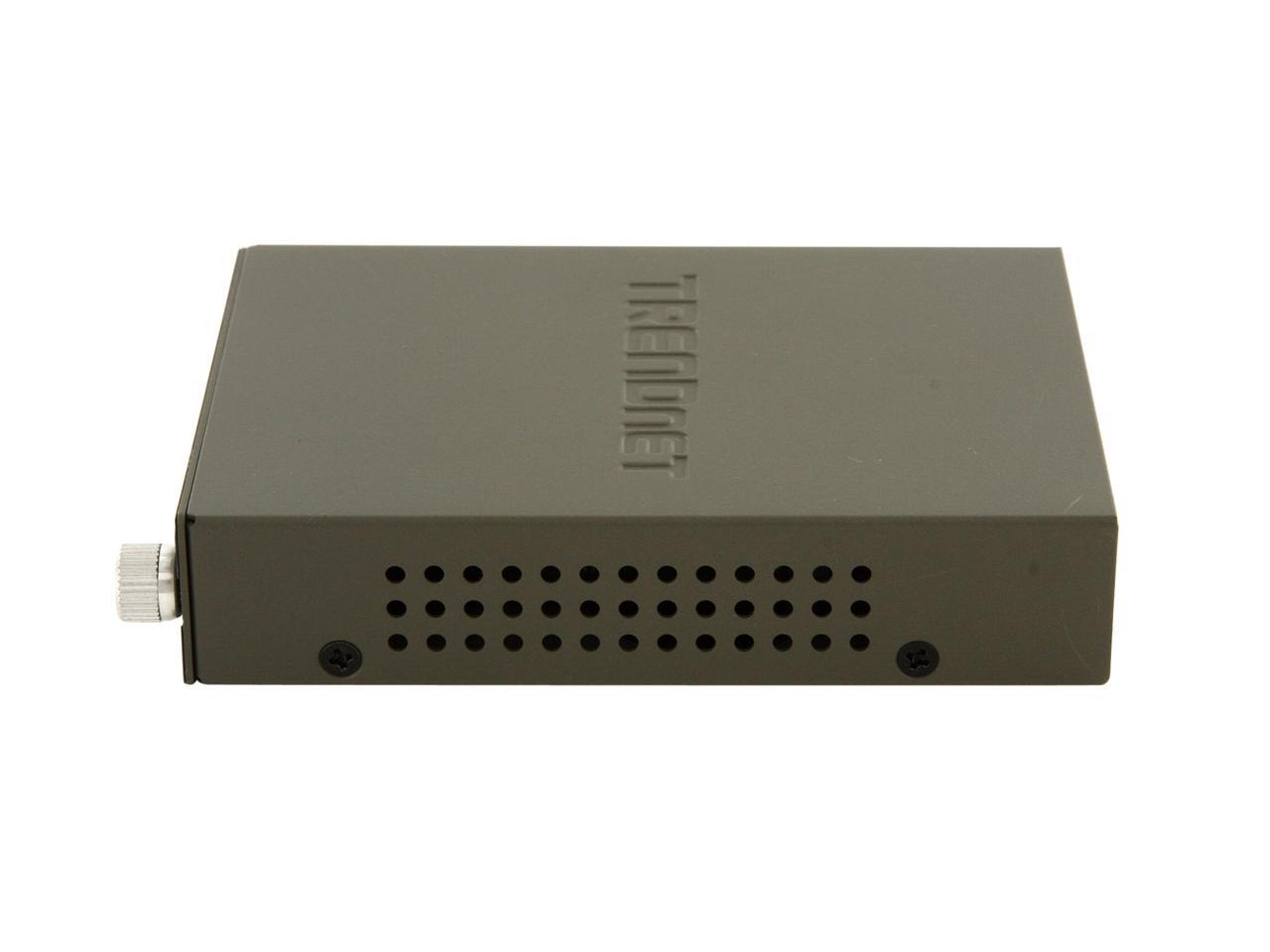

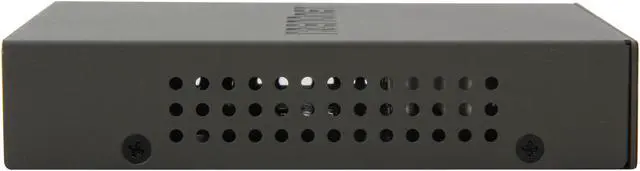

TRENDnet 100/1000Base-T To SFP Fiber Media Converter, Fiber To Ethernet Converter, 1 x 10/100/1000Base-T RJ-45 Port,1 x Mini-GBIC Slot, Lifetime Protection, Black, TFC-1000MGA

Overview

Specs

Reviews

100/1000 BASE-T TO SFP MEDIA CONVERTER

Model
Brand	TRENDnet
Model	TFC-1000MGA

Details
Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Network Media	10/100Base-TX: Cat. 5 EIA/TIA-568 100-ohm UTP/STP, up to 100m 1000Base-T: Cat. 5E or Cat. 6 EIA/TIA-568 100-ohm UTP/STP, up to 100m Multi-mode fiber optic cable 50/125 µm, up to 550m Multi-mode fiber optic cable 62.5/125 µm, up to 220m Single-mode fiber optic cable 9/125 µm, up to 80km (TEG-MGBS80)
Protocols	CSMA/CD

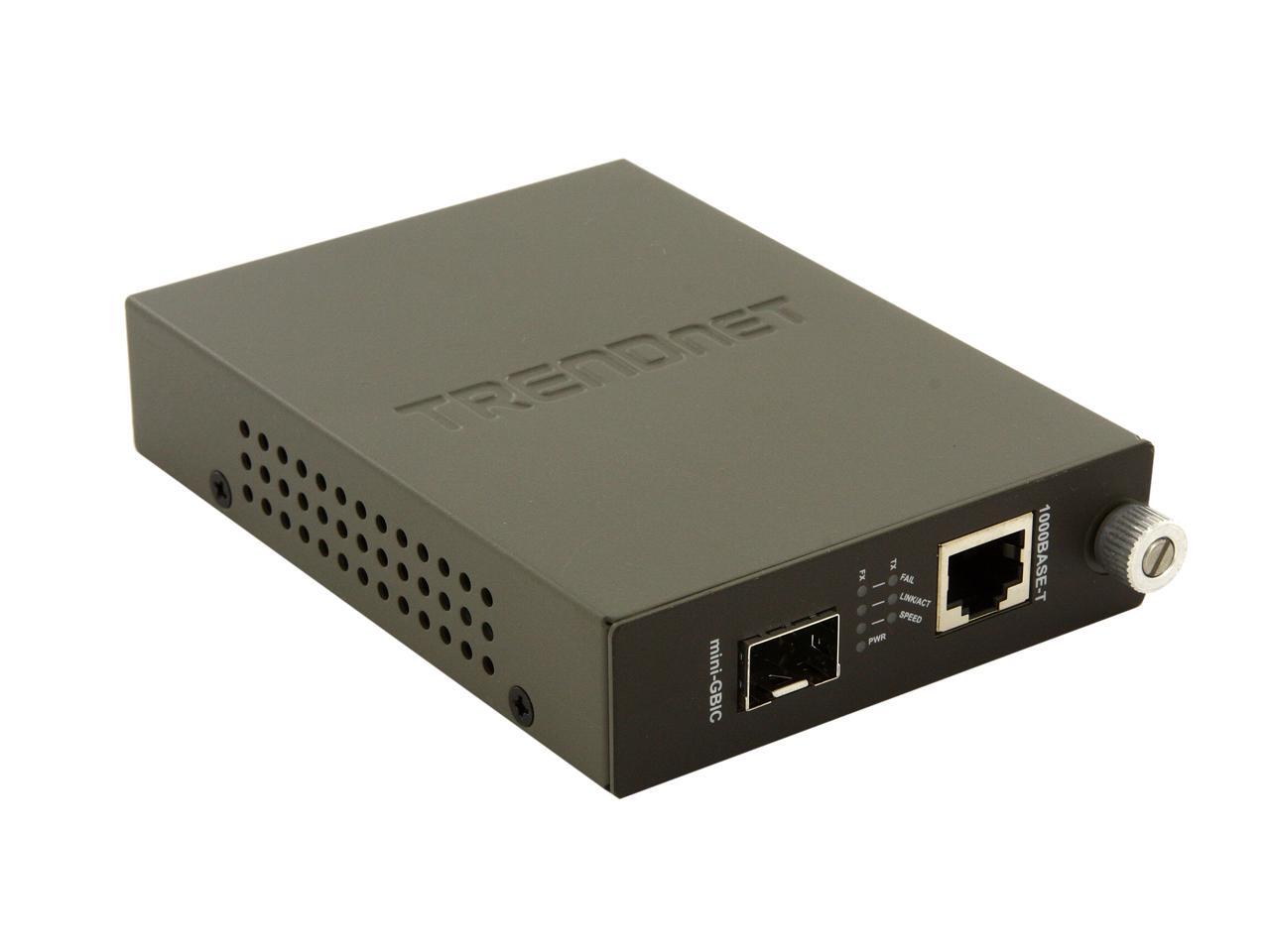

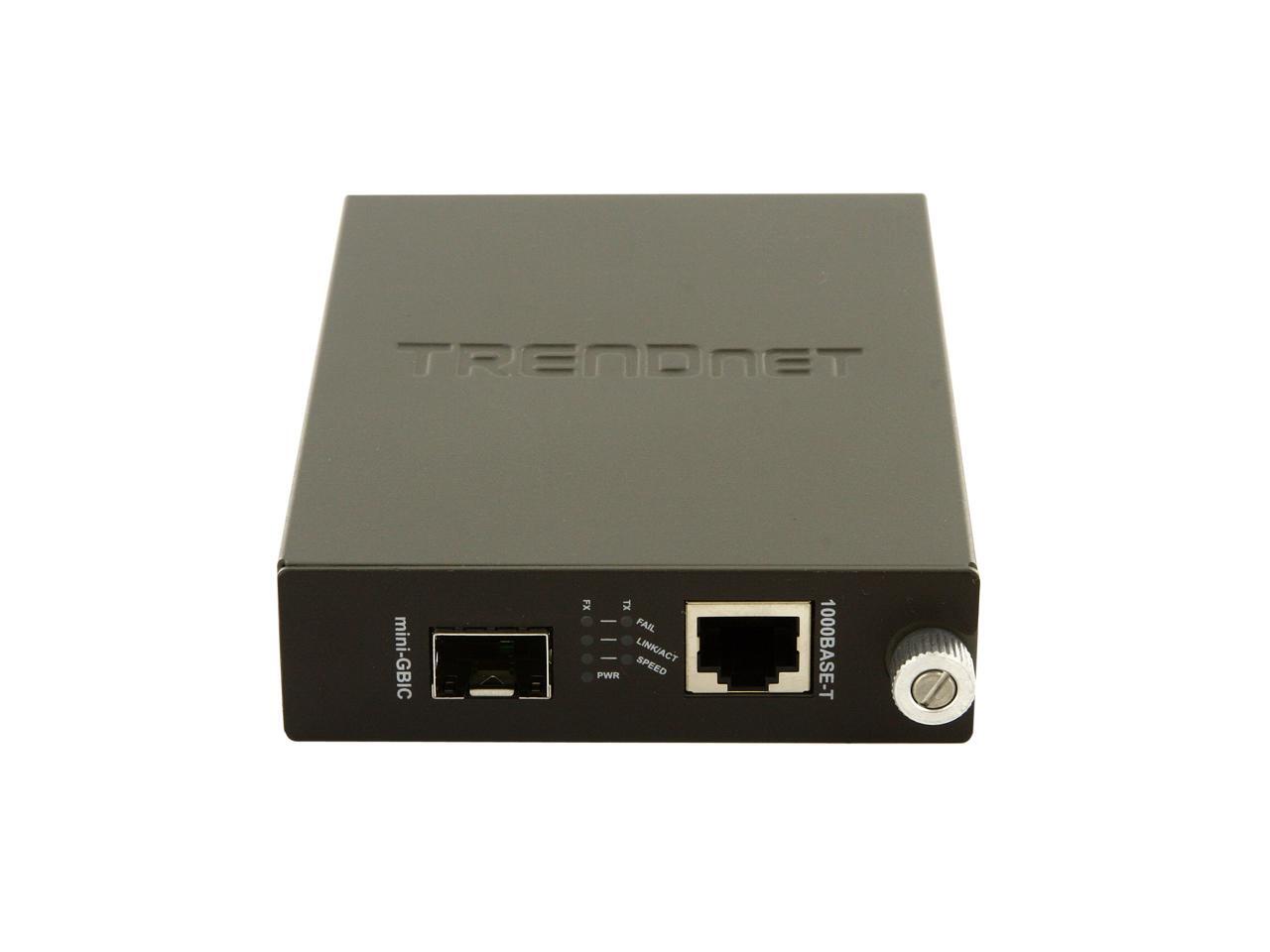

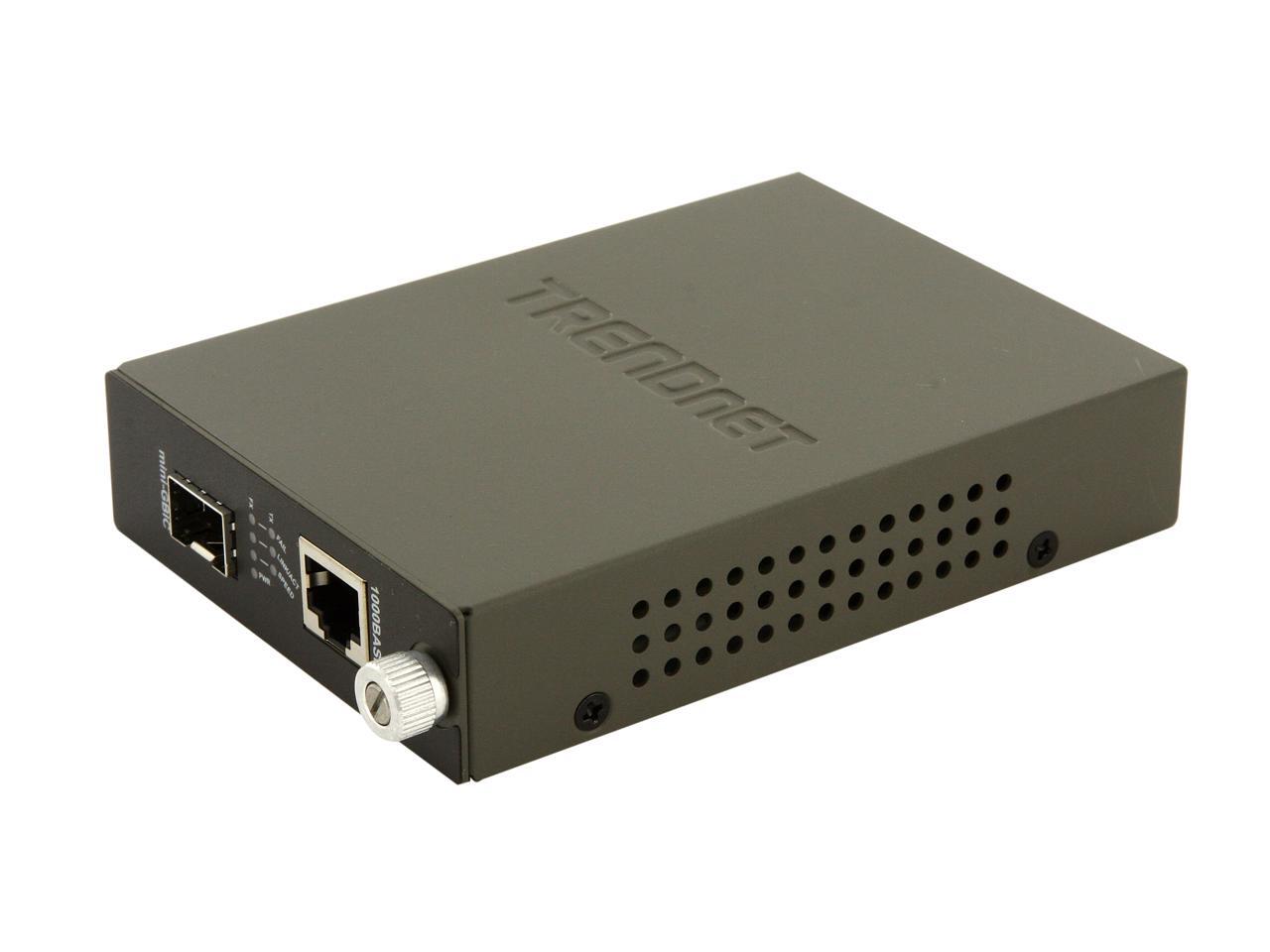

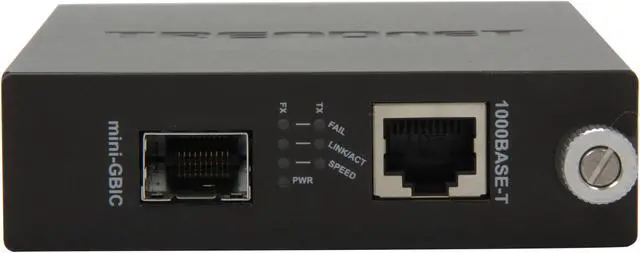

Ports	1 x 10/100/1000Mbps Gigabit port 1 x 100/1000Base-SX/LX Mini-GBIC slot for optional Mini-GBIC modules
LEDs	Per Unit : Power Per Port : Link/Activity/Fail

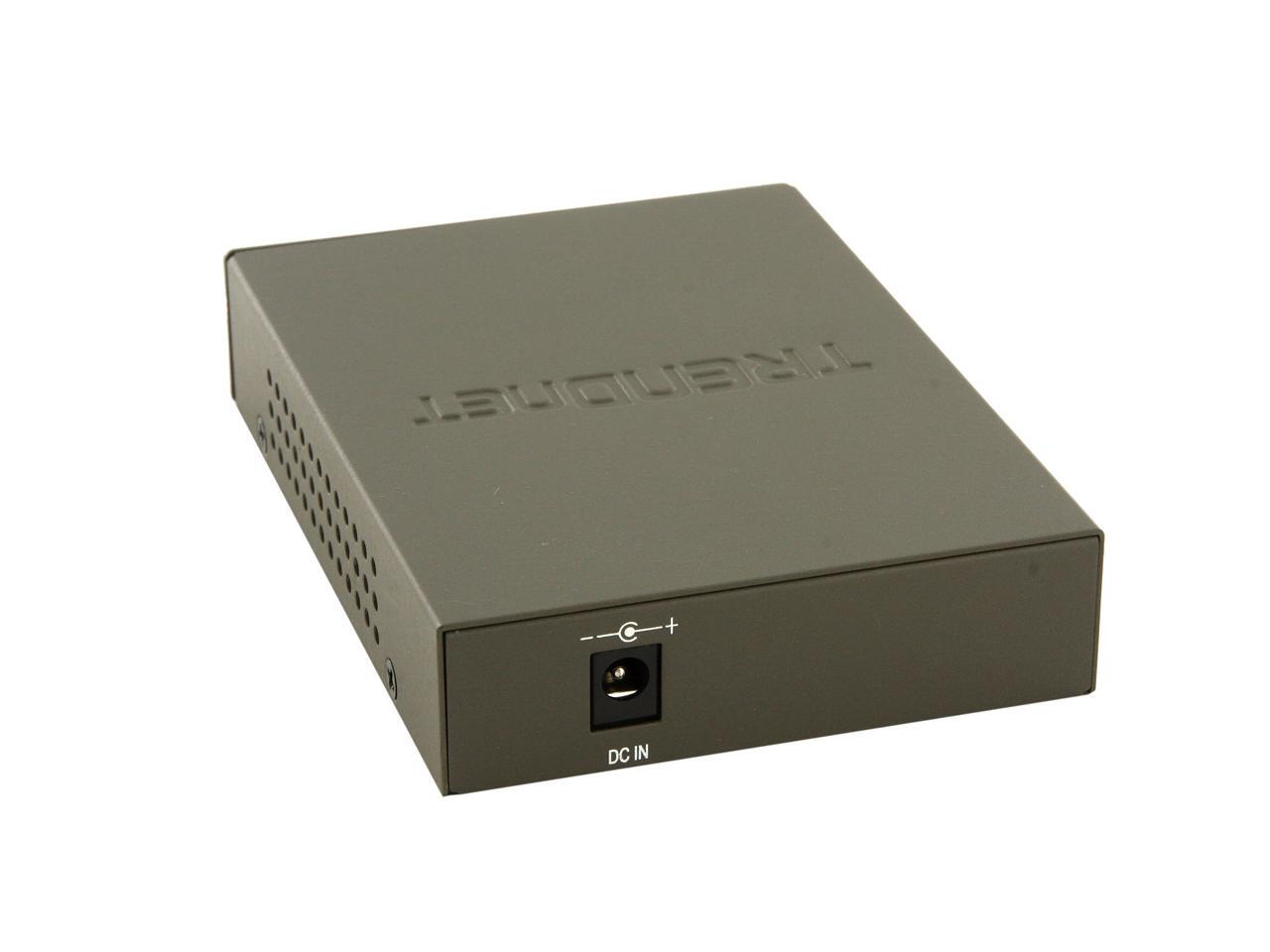

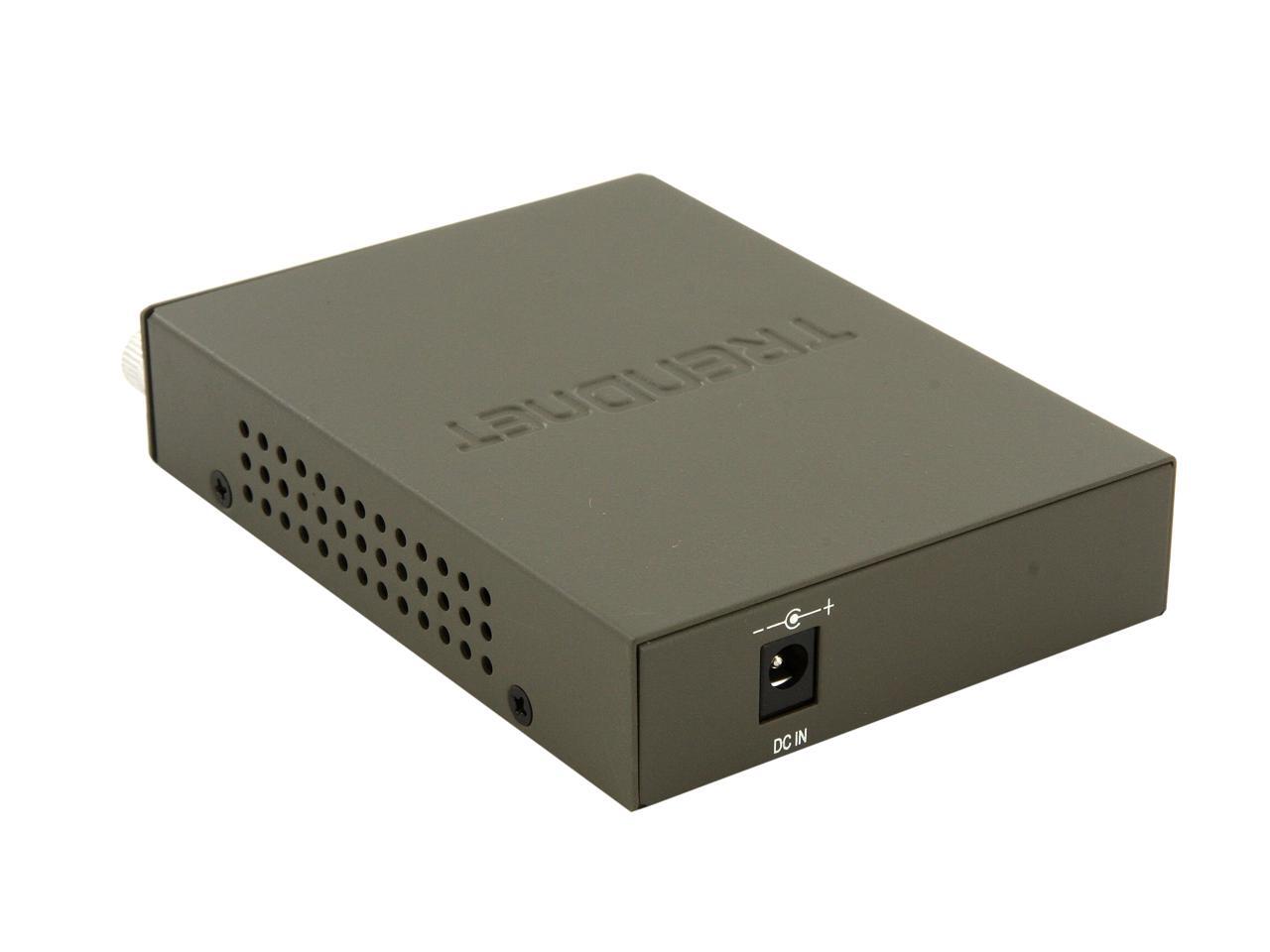

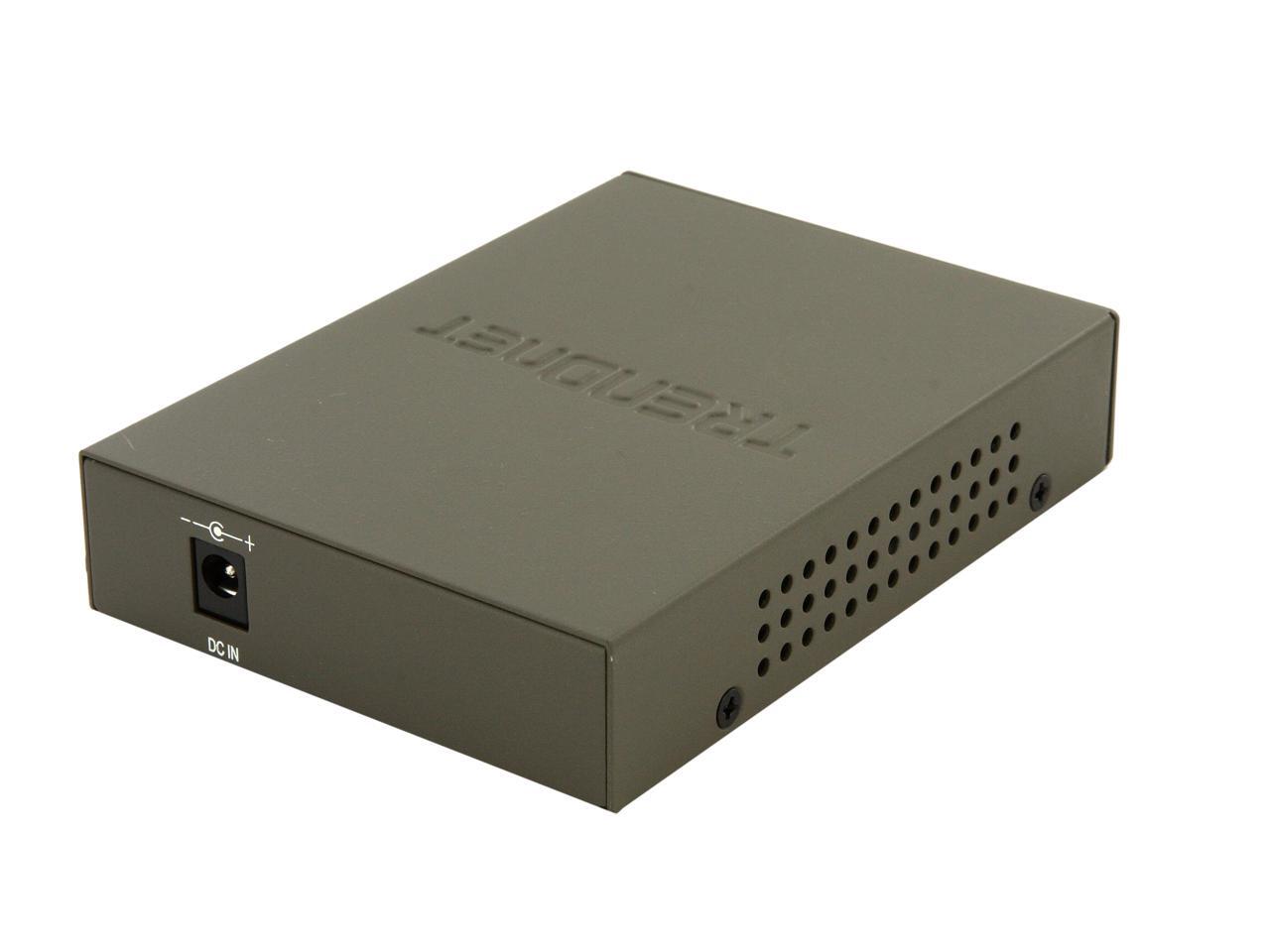

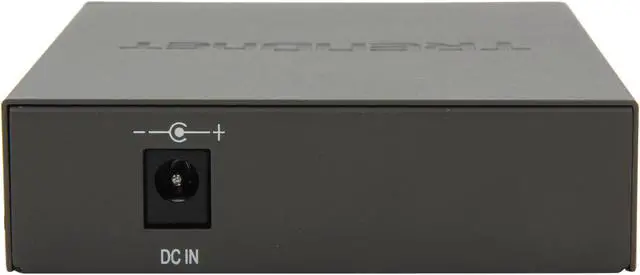

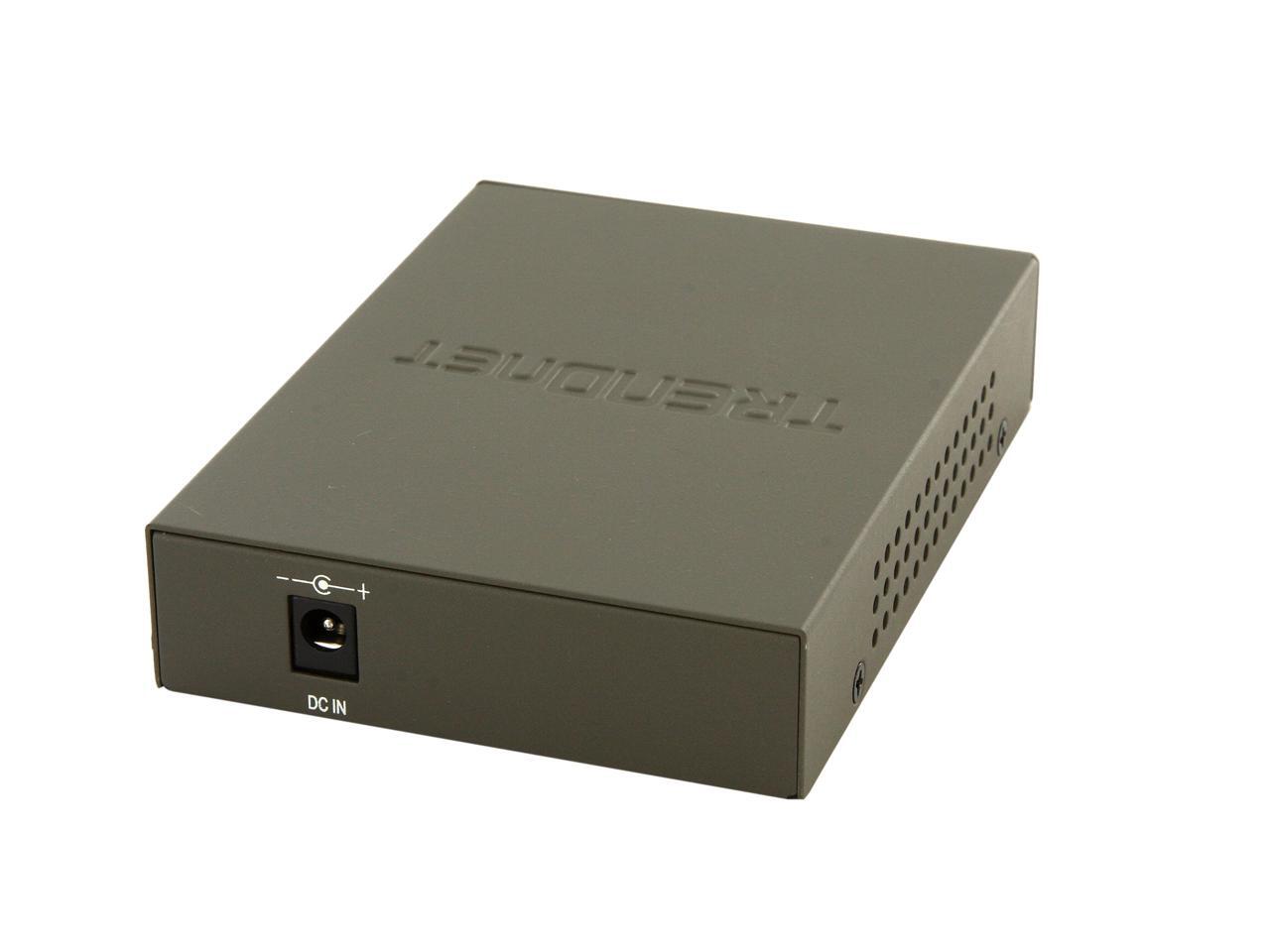

Power Adapter	5V DC, 1A external power adapter

Environmental
Temperature	0° ~ 40° C
Humidity	Max. 90% (non-condensing)

Features
Feature	Supported Frame Size: Standard Ethernet up to 10Kbytes Dip Switch: Fiber (forced/auto-negotiation), LLCF (enable/disable) Mini-GBIC slot accommodates Multi (SX) or Single-Mode (LX) fiber modules 100/1000Base-T Auto-Sensing / Negotiation Ethernet port 100Base-FX / 1000Base-SX / LX Mini-GBIC slot Functions as a standalone converter or with the TFC-1600 fiber chassis Provides Dip switch to set: Fiber (Forced/Auto-Negotiation), LLR (Enable/Disable) Support LLCF (Link Loss Carry Forward, Link Pass Through) Monitor and configure Ethernet or Fiber’s duplex mode, LLR, and receive link down information via management module TFC-1600MM and chassis TFC-1600 Status LED indicators for Power, Link/Activity and Fail Wall mountable Compatible with TRENDnet’s 16-Bay Fiber Converter Chassis System, model TFC-1600 (holds up to 16 TFC series Media Converters).

Dimensions & Weight
Dimensions	4.7" x 3.46" x 0.98"
Weight	10.2 oz.

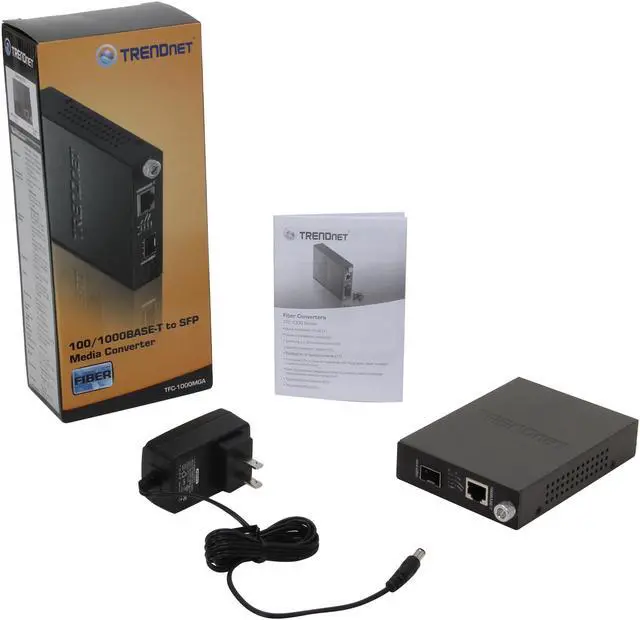

Package Contents
Package Contents	66637Q

Additional Information
First Listed on Newegg	February 03, 2012
