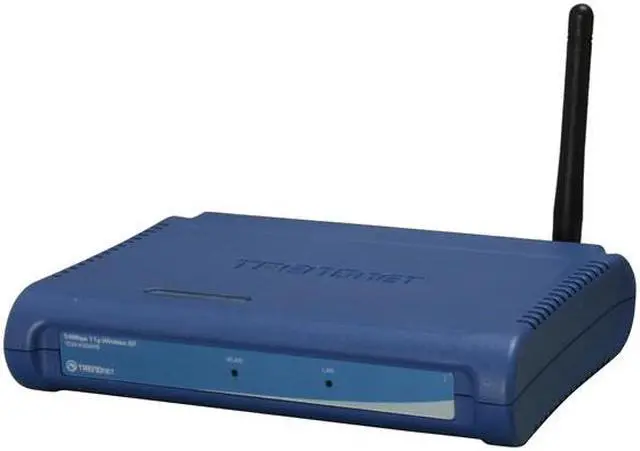

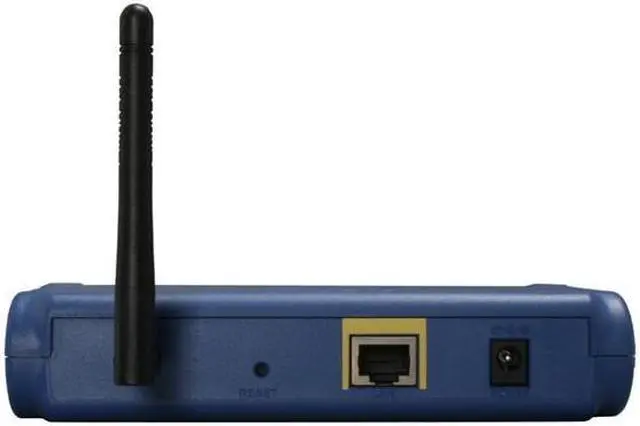

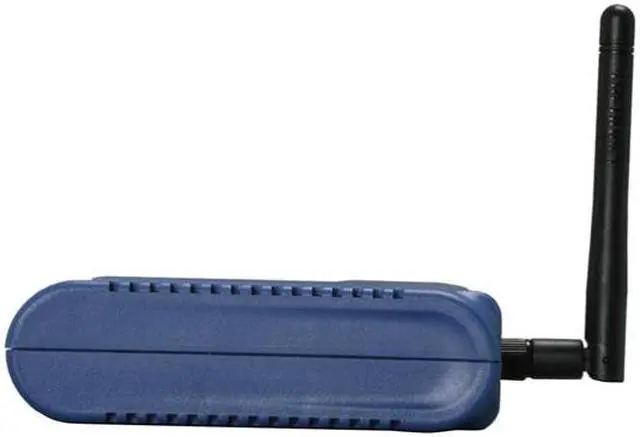

TRENDnet TEW-430APB 54Mbps 802.11g Wireless Access Point

Be the first to review this product...

Up to 54Mbps Wireless Data Rates
IEEE 802.11g, 802.3u
2.412 GHz - 2.484 GHz

Overview

Specs

Reviews

The TEW-430APB Wireless Access Point is today's link to Wireless Technology. Compliant with the IEEE Wireless Networking Standard 802.11g, it provides Direct Sequence Spread Spectrum (DSSS) operation for transparent bridging and roaming capabilities for wireless nodes. The TEW-430APB also provides WDS bridging functions, allowing users to connect two or more Access Points together, wirelessly. With this Wireless Access Point and Wireless Network Adapters, users can connect to Ethernet/Fast Ethernet LAN at home or office to access network resources with coverage up to 300 meters.

Model
Brand	TRENDnet
Model	TEW-430APB

Details
Standards	IEEE 802.11g, 802.3u
Device Management	Web-Based
Wireless Data Rates	Up to 54Mbps
Security	64/128-bit WEP (Hex) & WPA, WPA (TKIP), 802.1x Authentication & MAC Address Access Control List (ACL)
Frequency Band	2.412 GHz - 2.484 GHz
Channels	1 ~ 14 Channels (Universal Support)
Antenna	1 x 2dBi Detachable Diversity Antennas with Female Reverse SMA Connector
Transmitted Power	802.11b: 12dBm (typically) 802.11g: 15dBm (typically)
Receiver Sensitivity	54Mbps: -68dBm @ 10% PER (Packet Error Rate) 11Mbps: -81dBm @ 8% PER (Packet Error Rate)
Modulation	DSSS; DBPSK/DQPSK/CCK/OFDM
LEDs	Power, LAN & WLAN
WAN Ports	1 x 10/100M
Power Supply	5V, 1.2A External Power Adapter

Environmental
Temperature	0°C - 40°C (32°F - 104°F)
Humidity	90% Maximum, Non-Condensing

Dimensions & Weight
Dimensions	4.9" x 3.4" x 1.6"
Weight	0.26 lbs.

Features
Features	Operates as Access Point or WDS Wireless Bridge/Repeater mode Provides Security with 64/128-Bit WEP and WPA Supports 802.1x Authentication and MAC Address Control for Authorization Access (20 entries) Supports Most Operating Systems, such as Windows 95/98/ME/NT/2000/XP, Unix and Mac Allow Users to Disable ESSID Broadcast to Increase Wireless Security Built-in 10/100Mbps Auto-Sensing Fast Ethernet Port Dynamic Data Rate Scaling at 54, 48, 36, 24, 18, 12, 9 and 6 Mbps for 802.11g Dynamic Data Rate Scaling at 11, 5.5, 2 and 1 Mbps for 802.11b Allow Auto Fallback Data Rate for Optimized Reliability, Throughput and Transmission Range 2dBi Detachable Diversity Antenna. Replace with Optional High-Gain Antenna to Extend the Range/Coverage Area. Easy Configuration and Maintenance with Web Browser (HTTP) Flash Memory for Firmware Upgrade and Save/Restore Settings Distance coverage 50 to100 meters indoor, 100 to 300 meters outdoors depending on the environment

Packaging
Package Contents	TEW-430APB Manual Resource Disk Power Adapter Other Accessory

Additional Information
First Listed on Newegg	August 31, 2010
