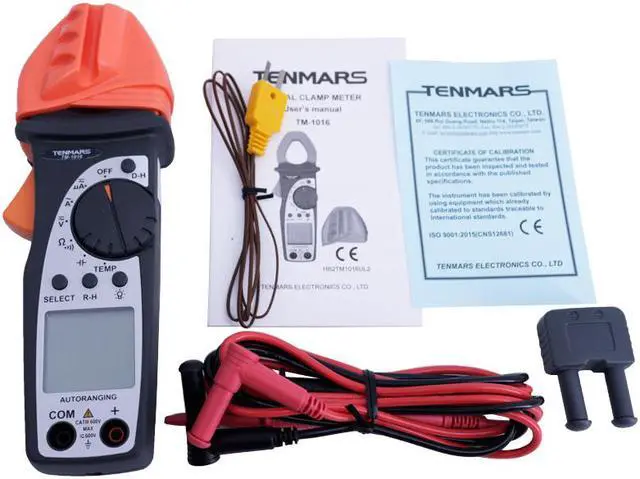

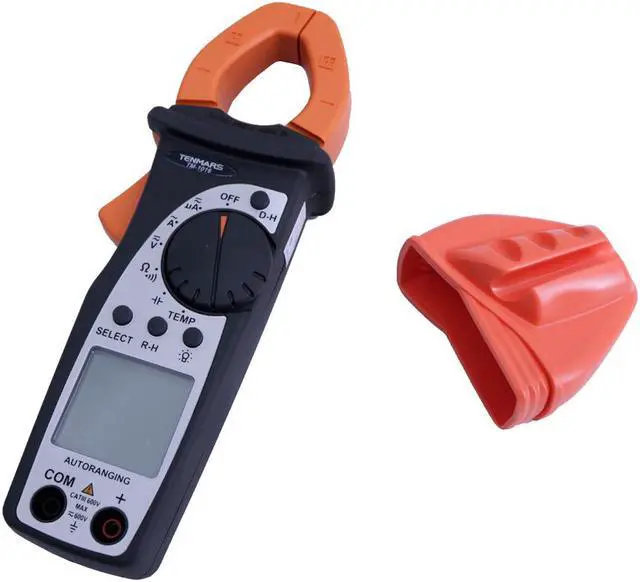

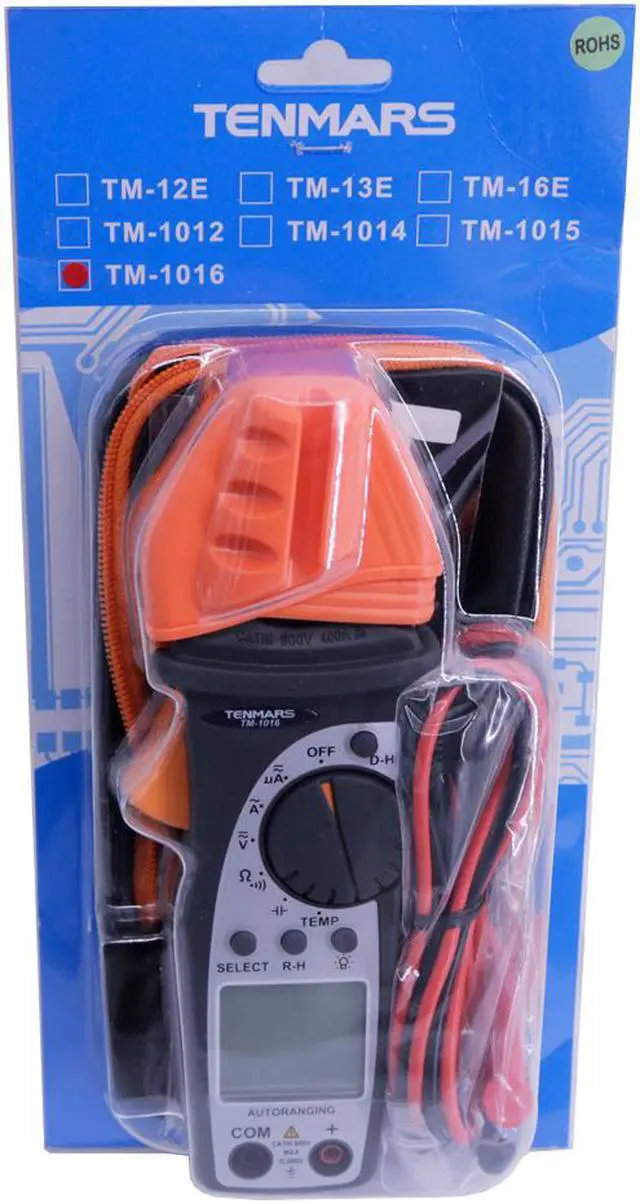

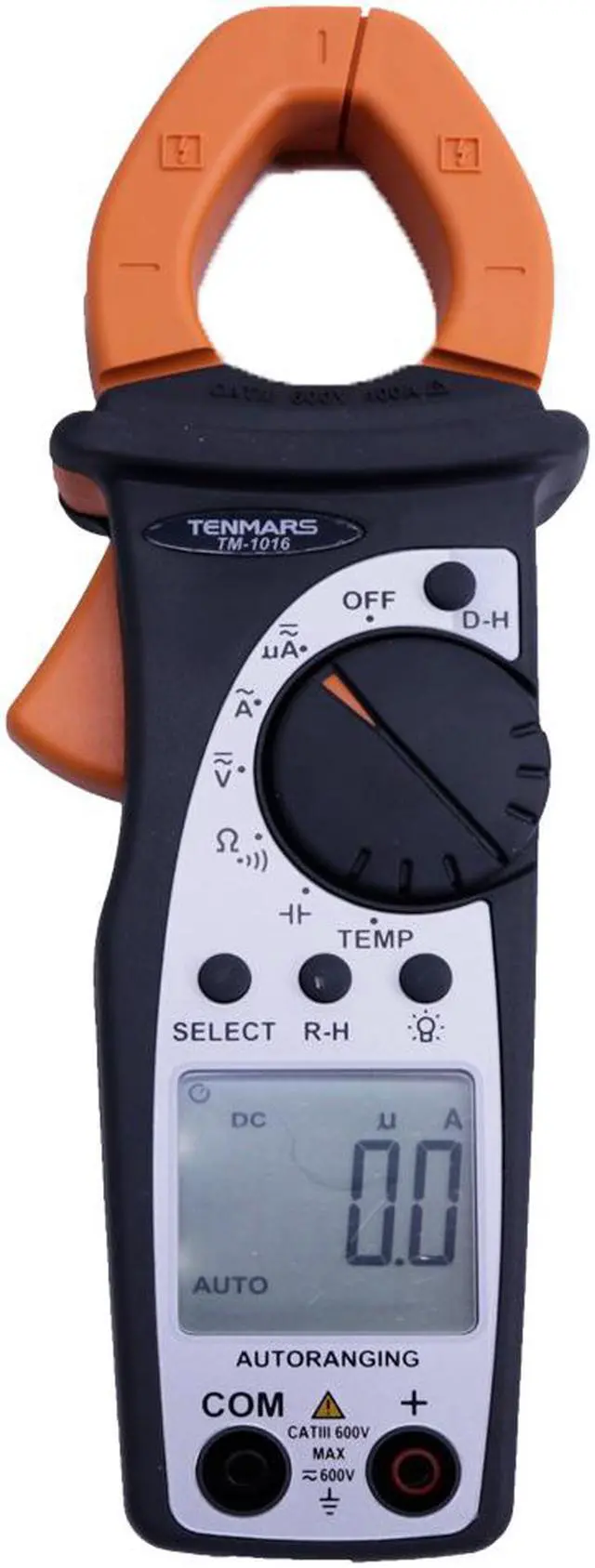

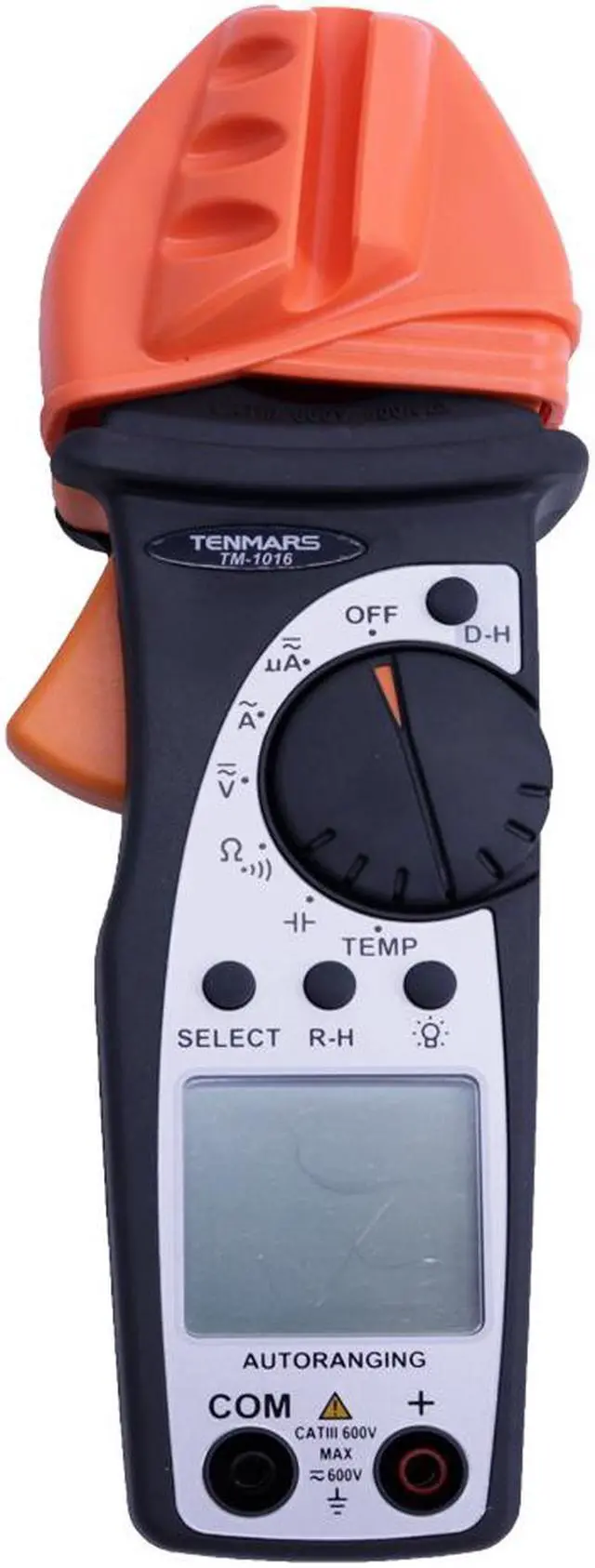

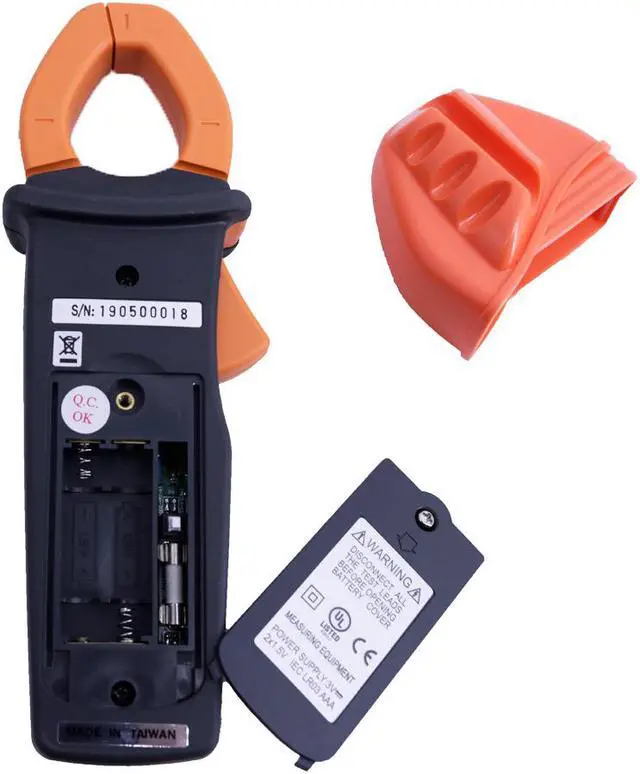

TENTARS AC-HVAC TM-1016 Clamp Meter Continuity, Capacitance, Temperature
- TENTARS AC-HVAC TM-1016 Clamp Meter Continuity, Capacitance, Temperature
+
+
Overview
Specs
Reviews
TM-1016 AC-HVAC Clamp Meter
CAT III 600V
3-3/4 digit LCD Backlit Display, with Analog Bargraph.
Display Counts: 4000.
Auto Ranging.
AC/DC current: 0.1µA to 4000µA. (using test leads).
AC current: 0.01A to 400A (using jaw measurement).
Ranges: ACV, ACA, DCV, DCA, Resistance, Continuity, Capacitance, and Temperature.
Maximum conductor size 30mm.
Continuity test below 40 ohms, buzzer will sound.
Auto Power off.
Double injection outer case.
Battery not included
Specification
Max measuring current 400A
Display counts 4000 Count Backlit LCD
Max conductor size 30 mm (11.8)
AC Current 0.1~4000µ/0.01A~400A ±(2.0%+10)
DC Current 0.1~4000µA±(1.0%+2)
AC Voltage 1mV~600V±(1.0%+3)
DC Voltage 1mV~600V±(0.8%+2)
Resistance 0.1O~40MO±(0.8%+2)
Temperature (K-Type)
(Thermocouple:optional) -50°C
CAT III 600V
3-3/4 digit LCD Backlit Display, with Analog Bargraph.
Display Counts: 4000.
Auto Ranging.
AC/DC current: 0.1µA to 4000µA. (using test leads).
AC current: 0.01A to 400A (using jaw measurement).
Ranges: ACV, ACA, DCV, DCA, Resistance, Continuity, Capacitance, and Temperature.
Maximum conductor size 30mm.
Continuity test below 40 ohms, buzzer will sound.
Auto Power off.
Double injection outer case.
Battery not included
Specification
Max measuring current 400A
Display counts 4000 Count Backlit LCD
Max conductor size 30 mm (11.8)
AC Current 0.1~4000µ/0.01A~400A ±(2.0%+10)
DC Current 0.1~4000µA±(1.0%+2)
AC Voltage 1mV~600V±(1.0%+3)
DC Voltage 1mV~600V±(0.8%+2)
Resistance 0.1O~40MO±(0.8%+2)
Temperature (K-Type)
(Thermocouple:optional) -50°C
