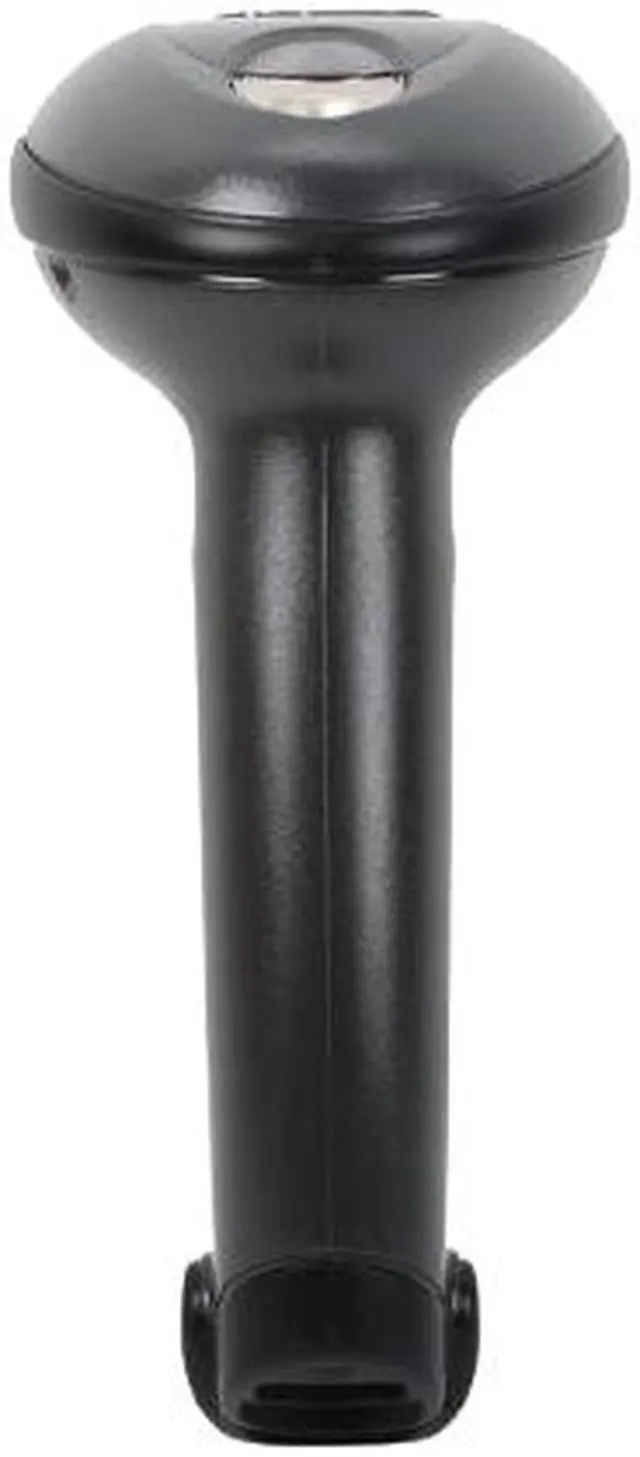

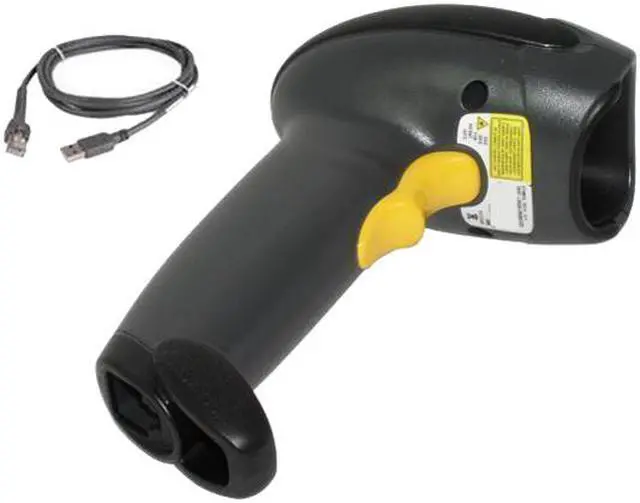

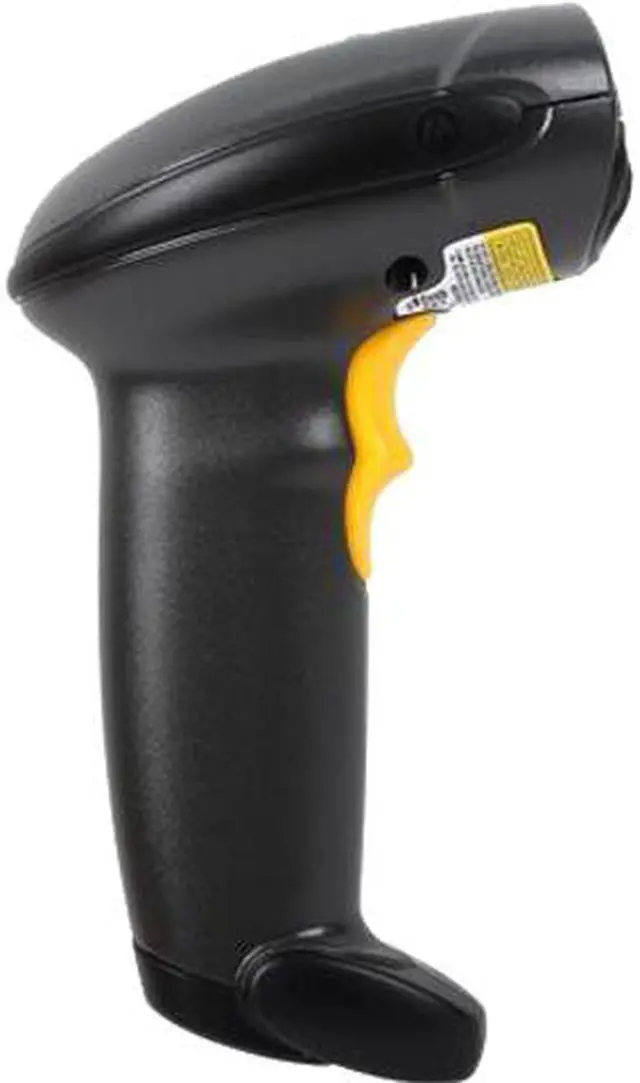

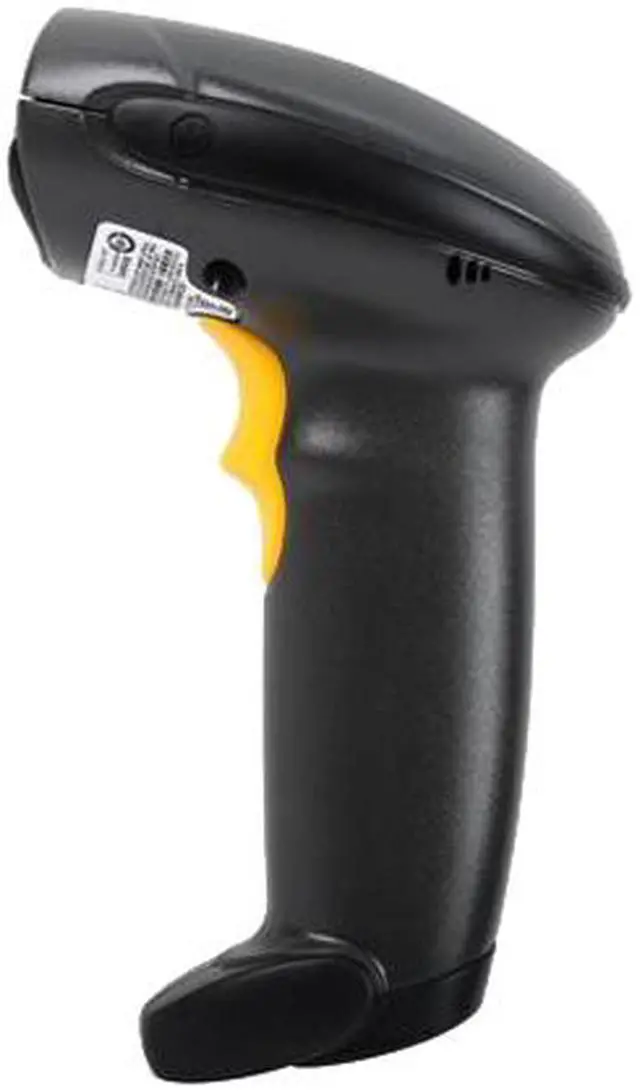

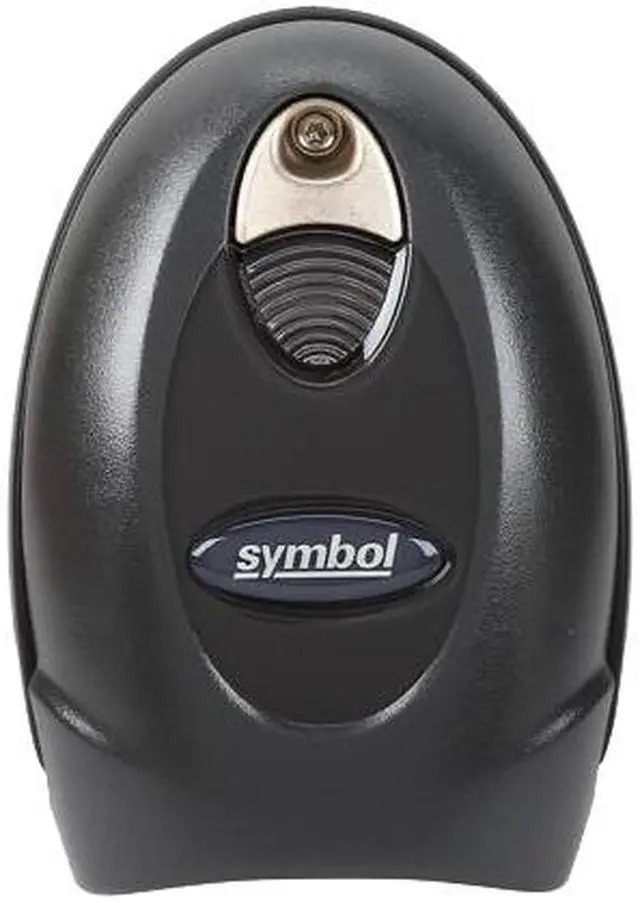

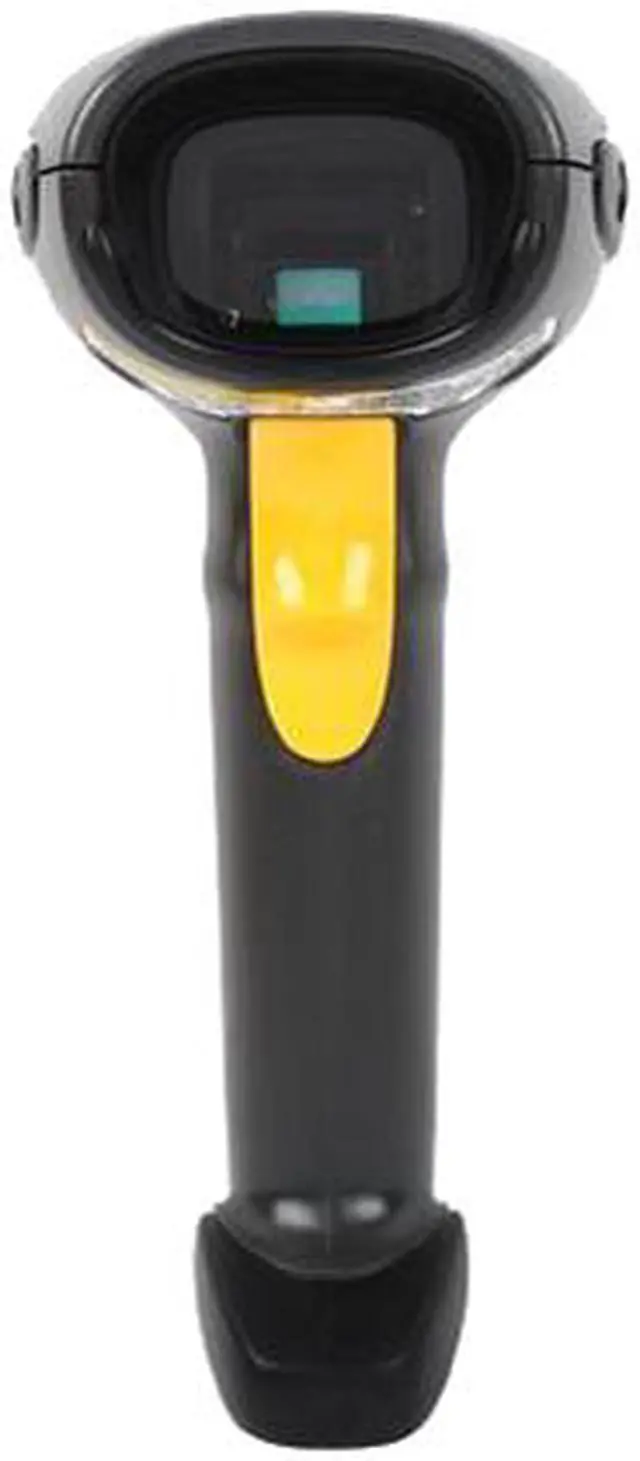

Symbol Motorola LS4208 USB Wired Barcode Reader Scanner LS4208-SR Dark Gray Scanner LS4208-SR20007ZZR + USB Cable

Features 1D, PDF and Composite Code Scanning Available in both 1D only (SR) and PDF/Composite (PR) configurations to support a wide range of productivity-enhancing applications Multi-Line Rastering Scan Pattern Improves productivity by reducing the need to rescan bar codes or key in data, resulting in shorter lines at the retail point of sale Superior Motion Tolerance Enables end users to quickly move from one bar code to the next without hesitation Wide Working Range Reads good quality as well as poor quality codes at similar ranges, reducing the need for the user to move the scanner back and forth Checkpoint Electronic Article Surveillance (EAS) Offers dual functionality to improve return on investment and save critical counter space Durable Construction and Patented, Single Circuitboard Design Able to Withstand Multiple 6-foot ( 1.8 m) Drops to Concrete Lowers the total cost of ownership by protecting against downtime from accidental drops Plug-and-Play Setup, Intuitive Scanning Enables rapid deployment and immediate use without formal training, allowing new and experienced employees to immediately help improve operational efficiency Remote Management-Ready Reduces total cost of ownership by enabling remote, network-based device management Optional Hands-Free Intellistand Enables presentation scanning and automatic switching between handsfree and handheld modes GS1 DataBar (Formerly RSS) Bar Code Support Supports the latest symbologies to future-proof your investment Specifications Physical Characteristics
Dimensions (H x L x W): 6.7 x 3.7 x 2.7 in. (17 x 9.3 x 6.8 cm)
Weight: Approximately 6.4 oz (181g)
Voltage and current: 5VDC ± 10%@ 140mA (Stand by: <35mA)
Color: Cash Register White or Twilight Black Performance Characteristics Light Source 650nm laser diode
Motor frequency: 50Hz
Decode rate: 200 decodes per second Roll ± 35° Pitch ± 60° Yaw ± 60°
Print Contrast: 25% minimum reflectance
Motion Tolerances: Horizontal
velocity: 200in.
/second (508cm/s) Vertical velocity: 200in.
/second (508cm) Angular velocity: 200in.
/second (508cm/s) Decode Capability: UPC/EAN and with supplementals, Code 39, Code 39 Full ASCII, Tri-optic Code 39, GS1 DataBar (formerly RSS) Variants, UCC/EAN 128, Code 128, Code 128 Full ASCII, Code 93, Codabar (NW1), Interleaved 2 of 5, Discrete 2 of 5 MSI, Codell, IATA, Bookland EAN, Code 32
Interfaces Supported: On-board
multiple interface with: RS-232C (Standard, Nixdorf, ICL, & Fujitsu); IBM 468x/469x; Keyboard Wedge; USB (Standard, IBM SurePOS, Macintosh); Laser/Wand Emulation. In addition, Synapse Adaptive Connectivity allows for connectivity to all of the above, plus many non-standard interfaces
