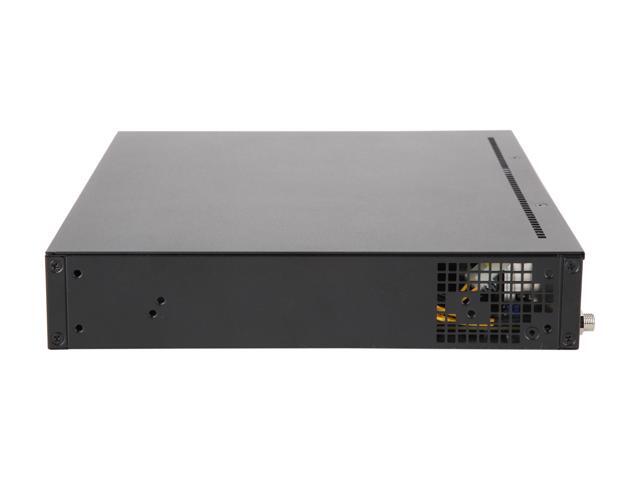

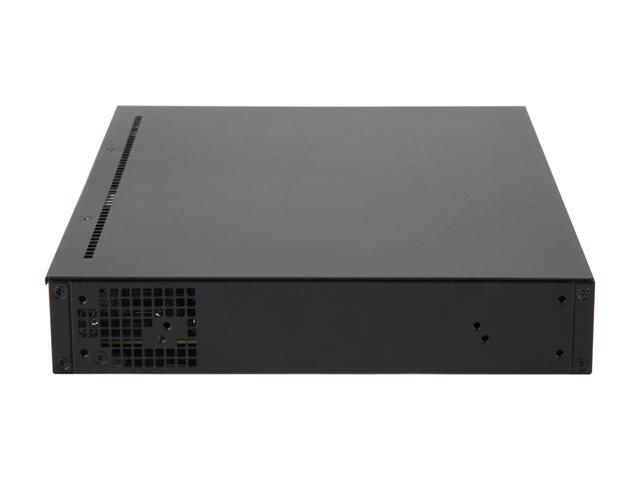

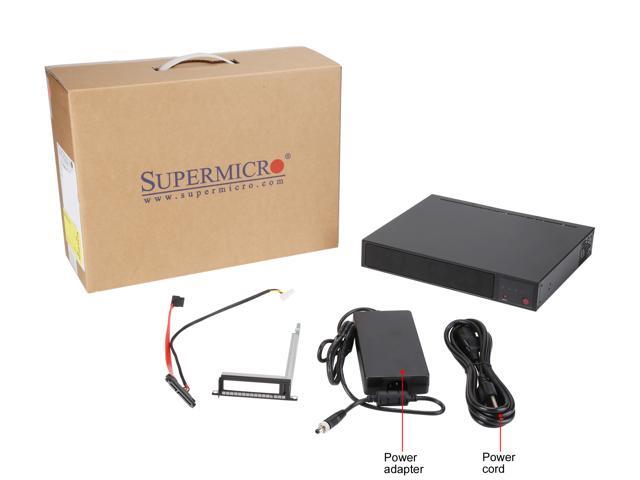

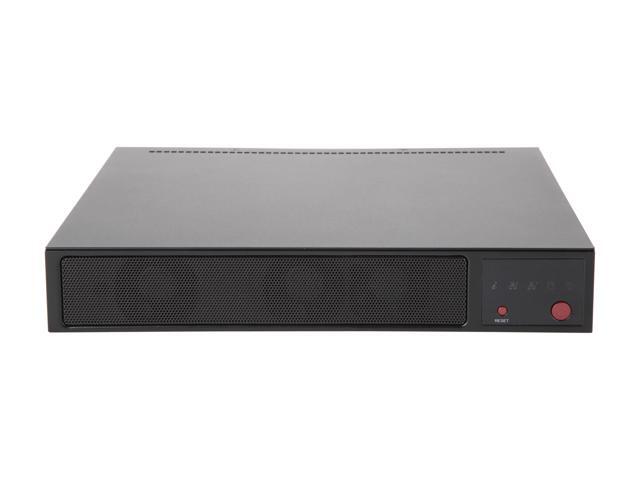

SUPERMICRO SYS-E300-9D-4CN8TP Compact Server Barebone

(2) Write a Review
  • Intel Xeon processor D-2123IT, 4-Core, 8 Threads, 60W
  • 1 x Fixed 2.5" drive bay with bracket
  • Up to 512GB ECC LRDIMM, up to 256GB ECC / non-ECC RDIMM DDR4-2666 MHz; in 4 x DIMM slots
  • 4 x 1 GbE, 2 x 10GBase-T, 2 x 10G SFP and 1 x dedicated LAN for IPMI 2.0
  • 1 x VGA, 2 x USB 3.0
  • 3 x 40 x 28mm 4-PIN PWM Fan
  • Low-noise DC Power Supply
Specs
Reviews (2)

Learn more about the Supermicro SYS-E300-9D-4CN8TP

Model
Brand SUPERMICRO
Model SYS-E300-9D-4CN8TP
CPU Supported
CPU Type Intel Xeon processor D-2123IT, CPU TDP support 60W
Memory Supported
Max Memory Supported Up to 512GB DDR4 ECC LRDIMM
Up to 256GB DDR4 ECC / non-ECC RDIMM
Memory Type Supported 2666 / 2400 / 2133 MHz ECC DDR4 ECC LRDIMM and ECC / Non-ECC RDIMM
Operating speed up to 2400 MHz
Storage Supported
Serial ATA SoC controller for 4 SATA3 (6 Gbps) ports, (or 2 NVMe U.2 / 8 SATA3 through two Port Eight Intel PCH SATA 3.0 Ports or Two MINI-SAS HD ports)
Graphics
GPU/VPU Aspeed AST2500 BMC
Expansion Slots
PCI Express 1 x PCI-E 3.0 x8 slot
Communications
Number of LAN Quad 1 GbE with Intel I350-AM4
Dual 10GBase-T with Intel X557
Dual 10G SFP+ via SoC

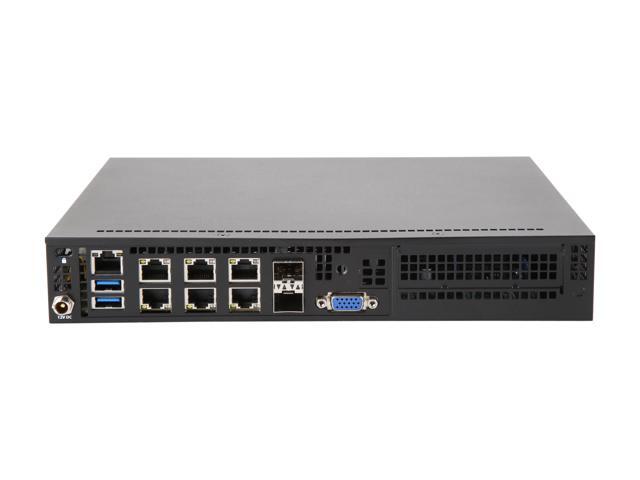

Panel Ports
Rear USB 2 x USB 3.0 ports
RJ45 2 x 10G SFP+ ports
2 x 10GBase-T LAN ports
4 x 1GbE LAN ports
1 x Dedicated IPMI LAN port
Power Supply
Max. Power DC Power Adapter with PFC
Features
Features Intel Xeon processor D-2123IT, 4-Core, 8 Threads, 60W

System on Chip

1 x Fixed 2.5" drive bay with bracket

1 x M.2 slot M key for SSD, 2242/8, 1 x M.2 B Key for SSD/ WAN card, 1 x Mini-PCI-E with mSATA Support, 1 x PCI-E 3.0 x8 slot

Up to 512GB ECC LRDIMM, up to 256GB ECC / non-ECC RDIMM DDR4-2666 MHz; in 4 DIMM slots

4 x 1 GbE, 2 x 10GBase-T, 2 x 10G SFP+ and 1 x dedicated LAN for IPMI 2.0

1 x VGA, 2 x USB 3.0

3 x 40 x 28mm 4-PIN PWM Fan

Low-noise DC Power Supply

Compatible tested memory list:
MEM-DR464L-SL01-LR26, 64GB, LRDIMM, 2666
MEM-DR480L-HL02-ER26, 8GB, RDIMM, 2666
MEM-DR416L-HL03-ER26, 16GB, RDIMM, 2666
MEM-DR432L-SL03-ER26, 32GB, RDIMM, 2666
Details
Form Factor Compact
Dimensions & Weight
Dimensions 1.70" x 10.00" x 8.90"
Weight 3.45 lbs.
Additional Information
First Listed on Newegg January 11, 2019
