SUPERMICRO SYS-7047A-T 4U Rackmountable / Tower Server Barebone Dual LGA 2011 Intel C602 DDR3 1600/1333/1066/800

(6) Write a Review
  • Dual LGA 2011
  • Support Dual Intel Xeon E5-2600 Series
  • 16 x 240Pin Memory Slots (Max 1TB)
  • 1200W high-efficiency power supply w/ PMBus, 80PLUS Platinum Certified
Overview
Specs
Reviews (6)

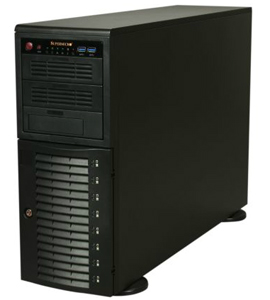

SUPERMICRO SYS-7047A-T 4U Rackmountable / Tower Server Barebone

Key Features


PHILIPS
  1. 1. Dual socket R (LGA 2011) supports Intel® Xeon® processor E5-2600 and E5-2600 v2 family†
  2. 2. Up to 1TB ECC DDR3, up to 1866MHz; 16x DIMM sockets
  3. 3. Expansion slots: 3 (x16) PCI-E 3.0, 2 (x8) PCI-E 3.0 & 1 (x4) PCI-E 3.0
  4. 4. Intel® i350 Dual port Gigabit Ethernet
  5. 5. 2x SATA3 and 8x SATA2 ports
  6. 6. 8x Hot-swap 3.5" SATA HDD Bays
  7. 7. 1200W High Efficiency Power Supply Platinum Level (94%)
  8. 8. Tower or Rackmount


Specifications

Product SKUs
SuperWorkstation
  • SYS-7047A-T (Black)
Motherboard
Super X9DRW-iF
Processor/Cache
CPU
  • Dual Socket R (LGA 2011)
  • Intel® Xeon® processor E5-2600 and E5-2600 v2 family†
Note † BIOS version 3.0 or above is required
Cache
  • Up to 30MB
System Bus
  • QPI up to 8 GT/s
System Memory
Memory Capacity
  • 16x 240-pin DDR3 DIMM sockets
  • Up to 1TB DDR3 ECC LRDIMM
  • Up to 512GB DDR3 ECC Registered memory (RDIMM)
  • Up to 128GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type
  • 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
  • 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage
  • 1.5 V, 1.35 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel® C602 Chipset
SATA
  • SATA 2.0 3Gbps with RAID 0, 1, 5, 10
  • SATA 3.0 6Gbps with RAID 0, 1
Network Controllers
  • Intel® i350 Gigabit Ethernet Controller
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Audio
  • RealTek ALC889 7.1 High Definition Audio with S/PDIF header
Super I/O
  • Nuvoton W83627
Input / Output
SATA
  • 2x SATA 3.0 ports (6Gbps)
  • 8x SATA 2.0 ports (3Gbps)
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 4x USB 3.0 ports
    (2 front + 2 rear)
  • 7x USB 2.0 ports
    (4 rear + 2 via header + 1 Type A)
Audio
  • Line-in / Line-out / Microphone Ports
Keyboard/Mouse
  • PS/2 Keyboard/Mouse port
Serial Port / Header
  • 1x Fast UART 16550 ports
IEEE 1394a
  • 2x Headers
TPM
  • 20pin Header v1.2
Expansion Slots
PCI-Express
  • 3 (x16) PCI-E 3.0 slots
  • 2 (x8) PCI-E 3.0 slots
  • 1 (x4) PCI-E 3.0 slot
System BIOS
BIOS Type
  • 64Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • DMI 2.3
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
  • UEFI

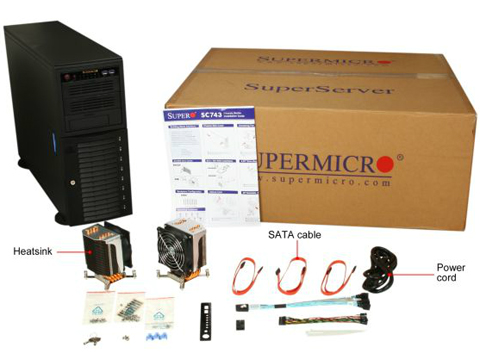

What's in the Box

PHILIPS
  • neweggDual Intel Xeon E5 CPU SupportAdopting Super X9DAi motherboard equipped with dual LGA2011 sockets and Intel C602 chipset, the SUPERMICRO SYS-7047A-T Barebone server supports up to two Intel Xeon E5-2600 processors to address the demanding needs for high performance and balanced architecture by modern business. The Intel Xeon E5 processor packs more cores, larger cache, greater memory, and new technologies like Intel Turbo Boost Technology 2.0, delivering up to 80% performance boost, reduced I/O network latency and increased energy efficiency.
  • neweggMemoryThe Super X9DAi has sixteen DIMM slots that can support up to 512 GB of registered/unbuffered ECC DDR3-1600/1333/1066/800 LRDIMMs (load-reduced DIMMs), delivering ample capacity for demanding applications.
  • neweggDual Gigabit LAN PortsIncorporating Intel i350 Dual port GbE controller in the motherboard, the SUPERMICRO SYS-7047A-T Barebone server is outfitted with two Gigabit Ethernet LAN ports to optimize network bandwidth, data throughput and communication efficiency.
  • neweggEasy ExpandabilityThree PCIe 3.0 x16 slots, two PCIe 3.0 x 8 slots and one PCIe 3.0 x4 slot support a range of I/O expansion cards and discrete graphics cards for flexible expansion.
  • neweggHot-swappable 3.5” Drive Bays2x SATA 3.0 ports (6Gbps) with RAID 0, 1, 5, 10 support and 8x SATA 2.0 ports (3Gbps) with RAID 0, 1, 5, 10 support enable flexible storage solution. The SUPERMICRO SYS-7047A-T features eight hot-swap 3.5" drive bays for easy installation and replacement of hard drives in a 24/7 computer system.
  • newegg1200W Power Supply Unit with 80 PLUS Platinum CertificationThe 1200W 80 PLUS Platinum Certified power supplies provides robust power for all components installed with high power efficiency of 89-94% at any load between 20% and 100%, saving your money on your electrical bill, reducing heat in your computer's system and prolonging its life.
