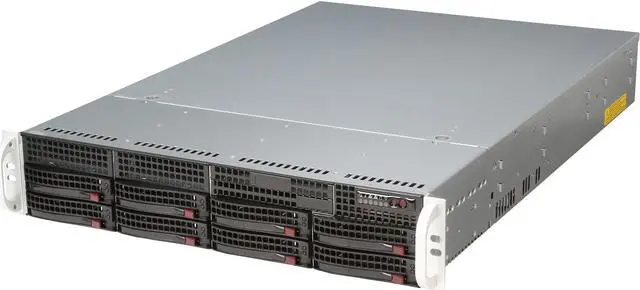

SUPERMICRO SYS-6028R-WTR 2U Rackmount Server Barebone Dual Socket R3 (LGA 2011) Intel C612 DDR4 2400 / 2133 / 1866 / 1600 MHz ECC SDRAM 72-bit

(2) Write a Review
  • Dual Socket R3 (LGA 2011)
  • Intel Xeon processor E5-2600 v3 family (up to 145W TDP)
  • 16 x 288Pin Memory Slots
  • 740W
Overview
Specs
Reviews (2)
SYS-6028R-WTR

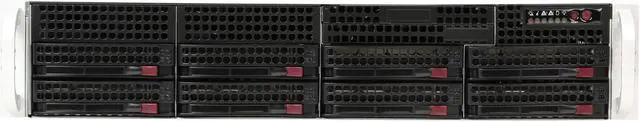

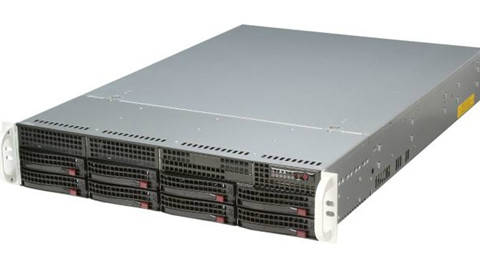

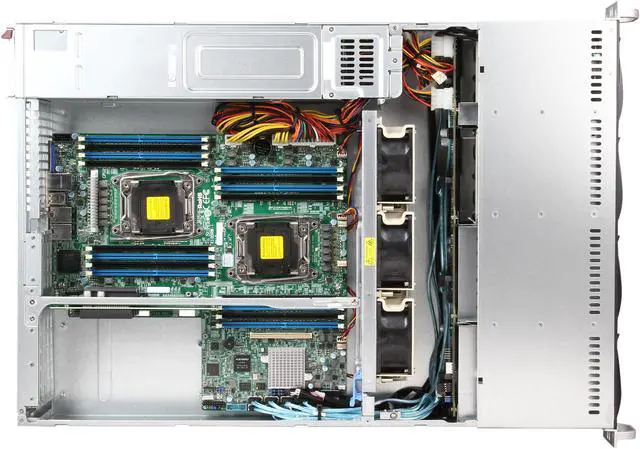

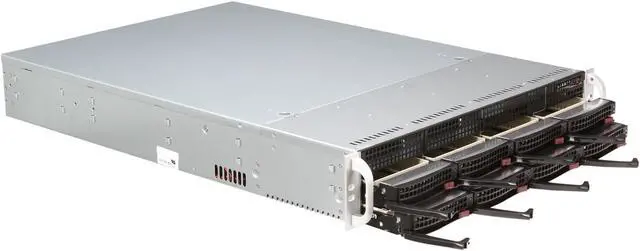

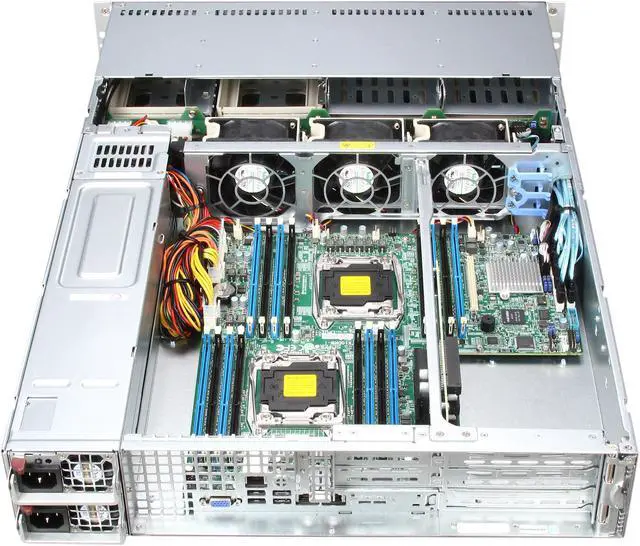

SUPERMICRO SYS-6028R-WTR 2U Rackmount Server Barebone

Features

SYS-6028R-WTR
  • Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3 family; QPI up to 9.6GT/s
  • 8x 3.5" Hot-swap SAS/SATA HDD bays for Customizable Storage
  • Up to 1TB ECC DDR4 2133MHz; 16x DIMM slots
  • Riser card support up to: 4x PCI-E 3.0 x8 (2 FHFL, 2 FHHL) 2x PCI-E 3.0 (Low-profile) slots
  • Intel® i350 Dual port GbE LAN
  • Integrated IPMI 2.0 and KVM with Dedicated LAN
  • I/O ports: 2x SuperDOM, 1x VGA, 2x COM, TPM 1.2, 6x USB 3.0 (4 rear, 2 via header)
  • 740W Redundant Power Supplies Platinum Level (94%+)

Specifications

Product SKUs
SYS-6028R-WTR SuperServer 6028R-WTR (Black)
Motherboard
Motherboard Super X10DRW-i
Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v3 family (up to 145W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache Up to 18 Cores / Up to 45MB Cache
System Bus QPI up to 9.6 GT/s
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
System Memory
Memory Capacity
  • 16x 288-pin DDR4 DIMM slots
  • Up to 1TB ECC LRDIMM, 512GB ECC RDIMM
Memory Type 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
Memory Voltage 1.2 V
Error Detection Corrects single-bit errors
On-Board Devices
Chipset Intel® C612 chipset
SATA SATA3 (6Gbps); RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Intel® i350 Dual Port Gigabit Ethernet Controller
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 1GBASE-T, RJ45 output
  • 1x Realtek RTL8211E PHY (dedicated IPMI)
Video ASPEED AST2400 BMC

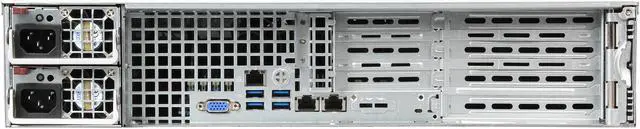

Input / Output
SAS/SATA Customizable storage
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB 6x USB 3.0 ports (4 rear + 2 via header)
Video 1x VGA port
Serial Port / Header 1x Fast UART 16550 port / 1 Header
DOM 2x SuperDOM (Disk on Module) ports
System BIOS
BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.2
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • BIOS resuce hot keys
  • USB Keyboard support
  • SMBIOS 2.3
  • UEFI

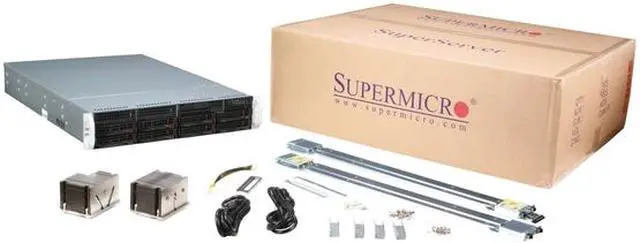

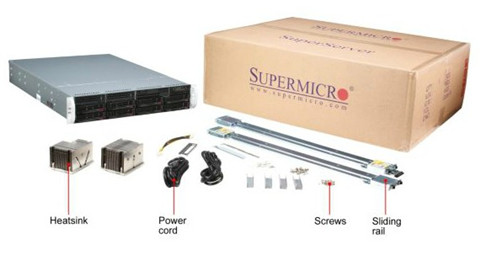

Whats in the Box

SYS-6028R-WTR
  • Supermicro's New Generation X10 Haswell DP SuperServer® offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 3 years
  • Read full details

Return Policies

  • Return for refund within: Non-refundable
  • Return for replacement within: 30 days
  • This item is covered by Newegg.ca's Replacement Only Return Policy.
  • Read full return policy for details.
