SUPERMICRO SYS-6028R-TR 2U Rackmount Server Barebone Dual Socket R3 (LGA 2011) Intel C612 DDR4 2400 / 2133 / 1866 / 1600 MHz

(1) Write a Review
  • Dual Socket R3 (LGA 2011)
  • Intel Xeon processor E5-2600 v4 / v3 family (up to 145W TDP)
  • BIOS version 2.0 or above is required
  • 16 x 288Pin Memory Slots
  • 740W
Overview
Specs
Reviews (1)
SYS-6028R-TR

SUPERMICRO SYS-6028R-TR 2U Rackmount Server Barebone

Features

SYS-6028R-TR
  • Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3 family; QPI up to 9.6GT/s
  • Up to 1TB ECC DDR4 2133MHz; 16x DIMM slots
  • 3 PCI-E 3.0 x16, 3 PCI-E 3.0 x8 slots
  • Intel® i350 Dual port GbE LAN
  • Intel C612 controller for 8 SATA3 ports; RAID 0, 1, 5, 10

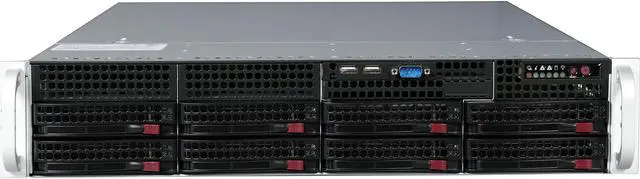

  • 8x 3.5" Hot-swap SATA3 HDD Bays
  • 740W Redundant Power Supplies Platinum Level (94% efficiency)

Specifications

Product SKUs
SYS-6028R-TR SuperServer 6028R-TR (Black)
Motherboard

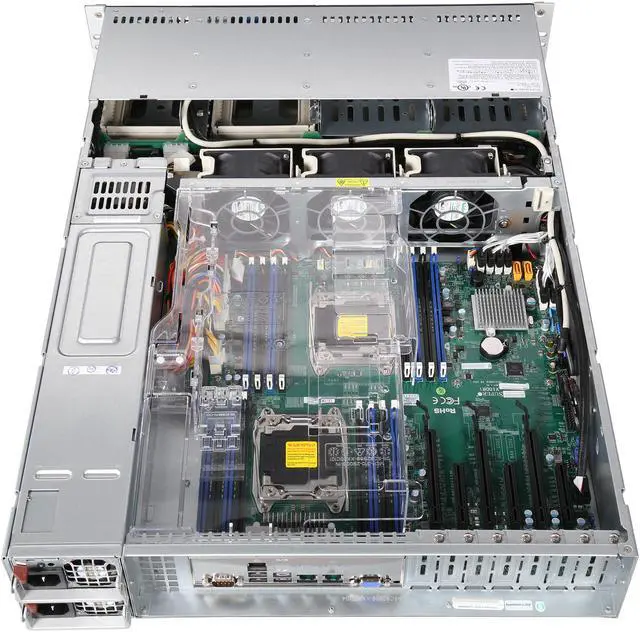

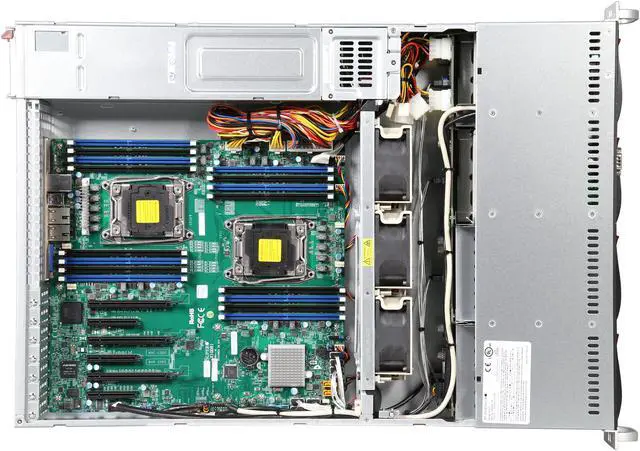

Motherboard Super X10DRi
Key Features
Key Features
  • Cloud and Virtualization needs
  • Compute Intensive Application
  • Database Processing and Storage
  • High Availability Storage
  • Mission-critical Applications
Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v3 family (up to 145W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache Up to 18 Cores / Up to 45MB Cache
System Bus QPI up to 9.6 GT/s
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
System Memory
Memory Capacity
  • 16x 288-pin DDR4 DIMM slots
  • Up to 1TB ECC LRDIMM, 512GB ECC RDIMM
Memory Type 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
Memory Voltage 1.2 V
Error Detection Corrects single-bit errors
On-Board Devices
Chipset Intel® C612 chipset
SATA SATA 3.0 (6Gbps) with RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Intel® i350 Dual Port Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics ASPEED AST2400 BMC
Input / Output
Serial ATA
  • 8x SATA3 (6Gbps) ports
  • 2x SATA3 powered ports that support SATA DOM
LAN

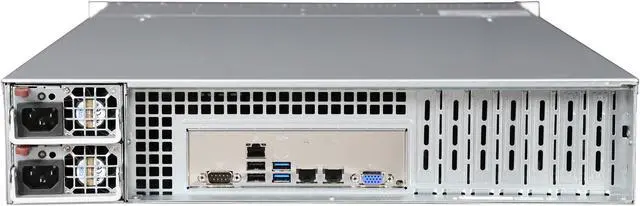

  • 2x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • Rear USB: 2x USB 3.0 + 2x USB 2.0
  • Front USB: 2x USB 2.0
  • USB Header: 2x 3.0, 2x 2.0, 1x Type A
VGA 1x VGA port
Serial Port / Header
  • 2x Fast UART 16550 serial
  • 2x COM Ports (1 rear, 1 header)
DOM 2x SuperDOM (Disk on Module) ports
Management
Software
  • SuperDoctor® 5
  • Watch Dog
  • NMI, SPM, SUM
  • IPMI 2.0
  • Intel Node Manager
Power Configurations
  • ACPI / APM Power Management
  • Power-on mode for AC power recovery
System BIOS
BIOS Type 128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI 2.3.1

Whats in the Box

SYS-6028R-TR

MAIN OVERVIEW FEATURES:

  • Number of Processors Supported: 2
  • Processor Socket: Socket LGA 2011-v3
  • Processor Supported: Xeon
  • 64-bit Processing: Yes
  • Chipset Manufacturer: Intel
  • Chipset Model: C612 Express
  • Maximum Memory: 1 TB
  • Memory Technology: DDR4 SDRAM
  • Memory Standard: DDR4-2133/PC4-17000
  • Number of Total Memory Slots: 16
  • Controller Type: Serial ATA/600
  • RAID Supported: Yes
  • Graphics Controller Manufacturer: ASPEED
  • Graphics Controller Model: AST2400
  • Ethernet Technology: Gigabit Ethernet,Fast Ethernet
  • Number of Total Expansion Bays: 8
  • Number of 3.5" Bays: 8
  • Number of Total Expansion Slots: 6
  • Number of PCI Express x8 Slots: 3
  • Number of PCI Express x16 Slots: 3
  • Total Number of USB Ports: 11
  • Number of USB 3.0 Ports: 4
  • Number of SATA Interfaces: 10
  • Input Voltage: 120 V AC,230 V AC
  • Number of Power Supplies Installed: 2
  • Maximum Power Supply Wattage: 740 W
  • Color: Black
  • Form Factor: Rack-mountable
  • Rack Height: 2U
  • Height: 3.5"
  • Width: 17.2"
  • Depth: 25.5"

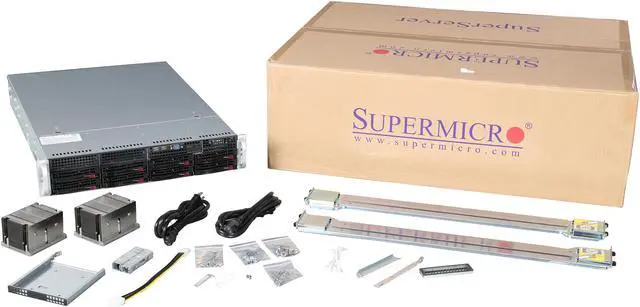

  • Package Contents:
    • SuperServer 6028R-TR (Black)
    • 1 x Super X10DRi Motherboard
    • 1 x 1U Chassis
    • 1 x BPN-SAS-825TQ-O-P
    • 4 x 55cm 30AWG SATA S-S cable
    • 2 x 21cm 30AWG SATA S-S cable
    • 2 x 29cm 30AWG SATA S-S cable
    • 2 x 8 pin to 8 pin round SGPIO cable, 40cm, 28AWG, pinout 1-1,RoHS/REACH
    • 2 x 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB
    • 2 x 1U740W Platinum Redundant Single Output
  • Environmentally Friendly: Yes
  • Environmental Certification: RoHS
  • Limited Warranty: 3 Year
