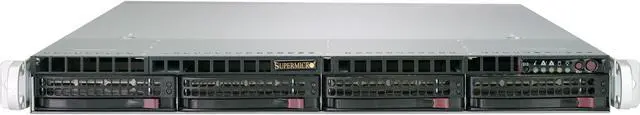

SUPERMICRO SYS-5019C-WR 1U Rackmount Server Barebone, For Customized Please Contact with Newegg B2B.
- For Customized Please Contact with Newegg B2B
- Key Applications
- - HA, High flexibility, VM, Communication
- - Application and data serving
- - Appliance Server
- Key Features
- Single Socket H4 (LGA 1151) supports Intel Xeon processor E-2100 / E-2200 series, 8th/9th Gen. Intel Core i3 Processors, Intel Celeron, Intel Pentium
- Intel C246 chipset
- Up to 128GB ECC UDIMM, up to DDR4-2666MHz; 4 DIMM slots
- 1 PCI-E 3.0 x16 or 2 PCI-E x8, 1 PCI-E 3.0 x4 (in x8) slot

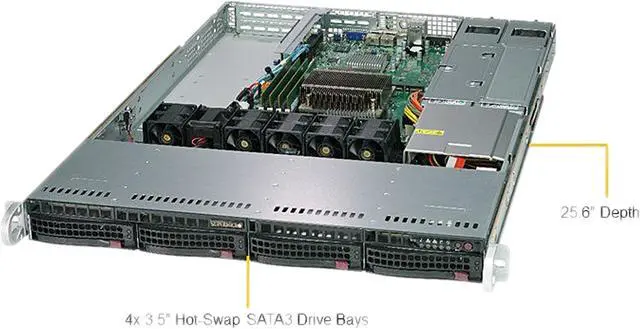

- 4 Hot-swap 3.5" drive bays
- M.2 Interface:
- - 1 SATA/PCI-E 3.0 x4 and 1 PCI-E -
- - M.2 Form Factor: 2260/2280/22110
- - M.2 Key: M-Key
- 2 GbE LAN ports, 1 dedicated IPMI LAN
- 2 USB 3.1 (rear), 2 USB 2.0 (rear)
- 1 VGA, 2 COM, 1 TPM header
- 500W High efficiency (96%) Redundant PSU, 54.5mm wide; Platinum Level
Specs
Reviews
Learn more about the Supermicro SYS-5019C-WR
| Brand | SUPERMICRO |
|---|---|
| Model | SYS-5019C-WR |
| CPU Type | Single Socket H4 (LGA 1151), CPU TDP support up to 95W Support Intel Xeon Processor E-2100 series, 8th Gen. Intel Core i3 / Pentium / Celeron Processors |
|---|---|
| CPU Socket | LGA 1151 |
| North Bridge | Intel C246 |
|---|
| Max Memory Supported | 4 x DIMM slots Up to 128GB Unbuffered ECC UDIMM Up to DDR4-2666 MHz |
|---|---|
| Memory Type Supported | DDR4 2666 / 2400 / 2133 MHz ECC SDRAM |
| ECC Supported | Yes |
| Serial ATA | 6 x SATA 600 |
|---|---|
| SATA RAID | RAID 0/1/5/10 |
| GPU/VPU | Aspeed AST2500 BMC |
|---|
| PCI Express | 1 x PCI-E 3.0 x16 or 2 PCI-E x8 1 x PCI-E 3.0 x4 (in x8) slot |
|---|
| Number of LAN | Dual LAN with Intel I210-AT |
|---|---|
| First LAN | Intel I210-AT |
| Second LAN | Intel I210-AT |
| Hot-Swap Bays | 4 x Hot-swap 3.5" drive bays |
|---|
| COM | 1 |
|---|---|

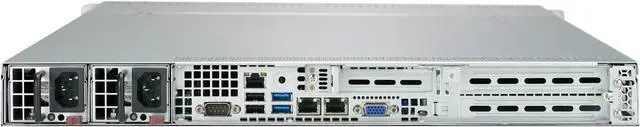

| Rear USB | 2 x USB 3.1 ports (rear) 2 x USB 2.0 ports (rear) |
| RJ45 | 2 x RJ45 Gigabit Ethernet LAN ports 1 x RJ45 Dedicated IPMI LAN port |
| Max. Power | 500W Redundant Power Supplies with PMBus |
|---|
| Features | Single socket H4 (LGA 1151) supports Intel Xeon processor E-2100, 8th Gen. Intel Core i3 Processors, Intel Celeron, Intel Pentium Intel C246 chipset Up to 128GB ECC UDIMM, up to DDR4-2666 MHz; 4 x DIMM slots 1 x PCI-E 3.0 x16 or 2 x PCI-E x8, 1 x PCI-E 3.0 x4 (in x8) slot 4 x Hot-swap 3.5" drive bays M.2 Interface: 1 x SATA/PCI-E 3.0 x4 and 1 x PCI-E 3.0 x4 M.2 Form Factor: 2260/2280/22110 M.2 Key: M-Key 2 x GbE LAN ports, 1 x dedicated IPMI LAN 2 x USB 3.1 (rear), 2 x USB 2.0 (rear) 1 x VGA, 2 x COM, 1 x TPM header 500W High efficiency (96%) Redundant PSU, 54.5mm wide; Platinum Level |
|---|
| Form Factor | 1U Rackmount |
|---|

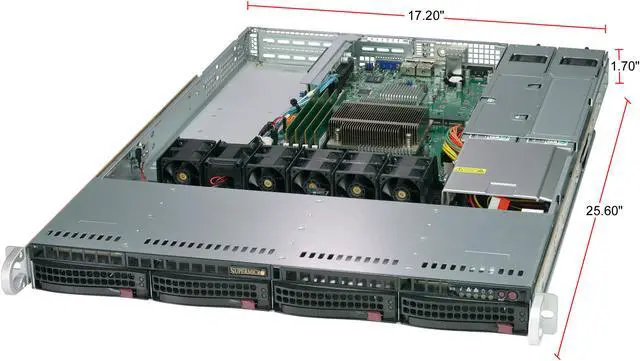

| Dimensions | 1.70" x 17.20" x 25.60" |
|---|---|
| Weight | 25.00 lbs. |
| First Listed on Newegg | February 14, 2019 |
|---|
