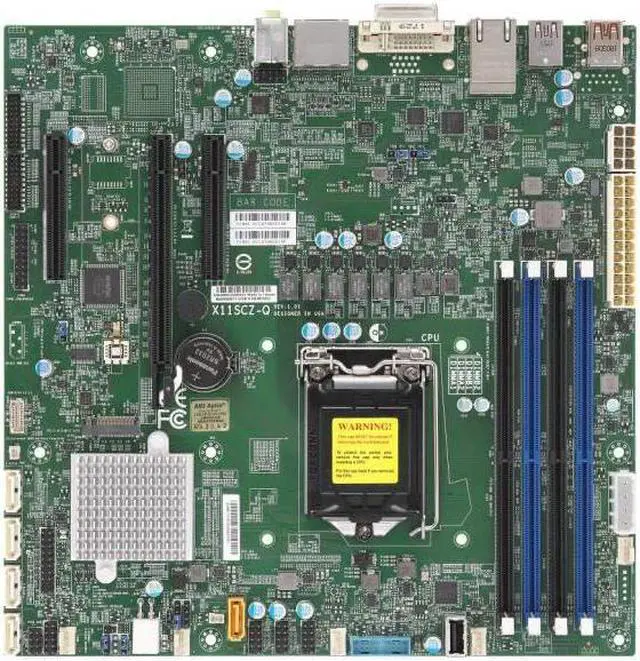

Supermicro MBD-X11SCZ-Q-B LGA1151/ Intel Q370/ DDR4/ USB3.1/ A&2GbE/ MicroATX Motherboard

Specifications

• Mfr Part Number: MBD-X11SCZ-Q-B

• CPU: Single Socket H4 LGA1151
  • Supports Intel 8th/9th Generation Core i9/ i7/ i5/ i3/ Pentium/ Celeron Processors
  • Supports up to 95W TDP
• Chipset: Intel Q370
• Memory: 4x 288pin DDR4-2666/ 2400/ 2133/ 1866/ 1600 MHz DIMM slots, Non-ECC, Unbuffered, Max Capacity of 64GB
• Slots: 1x PCI-Express 3.0 x16 Slot, 2x PCI-Express 3.0 x4 Slots (in x8 slot)

• SATA: 5x SATA3 Ports, Supports RAID 0, 1, 5, 10
• Audio: ALC 888S High Definition Audio CODEC
• LAN: Intel PHY I219LM and Intel I210-AT Gigabit Ethernet Controllers
• Ports: 6x USB 3.1 Gen 2 Ports (3 Type A Rear, 1 Type C Rear, 2 via headers), 2x USB 3.1 Gen 1 Ports (via header), 7x USB 2.0 Ports (6 via headers, 1 Type A), 1x DVI-I Port, 2x Display Ports, 3x Independent Displays Ports, 2x RJ45 LAN Ports
• Form Factor: MicroATX, 9.6 x 9.6 inch / 24.38 x 24.38 cm
• RoHS Compliant
