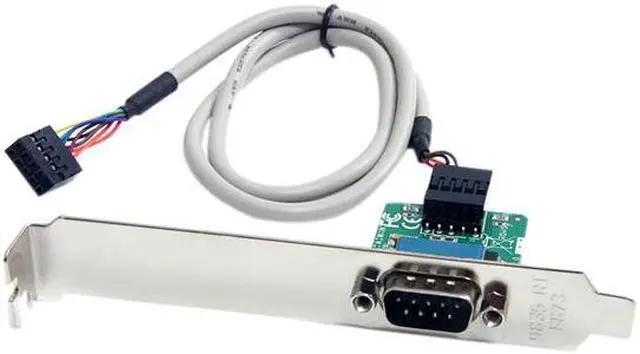

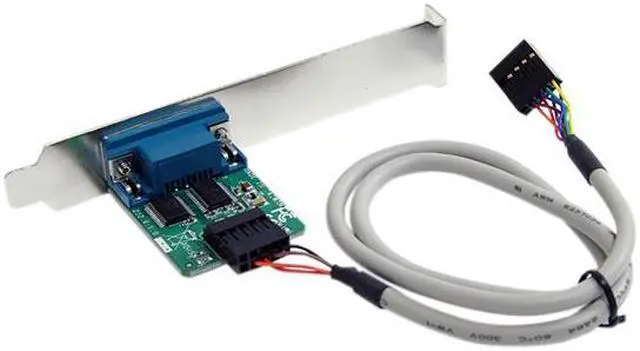

StarTech.com ICUSB232INT1 24in Internal Motherboard USB Header to Serial RS232 Adapter

Be the first to review this product...

Overview

Specs

Reviews

The ICUSB232INT1 USB to RS232 Serial Adapter lets you add an RS232 port to any desktop system that is equipped with an available USB motherboard header.

Unlike standard USB to serial cables, this cable is designed for use inside the PC case, affording an entirely internal solution with no mess or extra adapters needed.

This compact and simple USB adapter offers a cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Model
Brand	StarTech.com
Model	ICUSB232INT1

Details
Changer Type	USB to DB9 (RS-232)
Specifications	Cable Length: 24" Connector Types: 1 - DB9 Male Internal Ports: 1 - 9 pin IDC (Motherboard Header) Female Number of Ports: 1 Card Type: Low / Standard Profile Max Baud Rate: 115200 Kbps Data Bits: 7, 8 Stop Bits: 1, 2 Parity: None, Odd, Even, Space, Mark Bus Type: USB 2.0 Chipset ID: FTDI FT232R Microsoft WHQL Certified: Yes OS Compatibility: Windows 98/ 98SE/ 2000/ XP(32/64bit)/ Server 2003(32/64bit)/ Vista(32/64bit)/ 7(32/64bit)/ Server 2008 R2, Windows XP Embedded/ CE 4.2/ CE 5.0/ CE 6.0, Mac OS 8, 9, 10.4.x/ Linux 2.4, 2.6 Applications: Perfect for system builders looking to add legacy functionality to newer motherboards that lack an integrated RS232 port Connect, monitor and control industrial/automotive sensors and equipment Connect bar code scanners, receipt printers and other serial devices to an internal USB motherboard header Connect a satellite receiver, serial modem, or PDA with serial sync Connect and program LED and Digital signage boards with serial communication ports Product Dimensions: 0.47" x 1.77" x 4.84" Product Weight: 1.09 oz (31 g) Operating Temperature: -40°C to 85°C (-40°F to 185°F) Storage Temperature: -65°C to 85°C (-85°F to 185°F)

Features
Features	Supports COM port retention Bus-Powered – no separate power supply or battery required Single chip USB to asynchronous serial data transfer interface UHCI/OHCI/EHCI host controller compatible USB 2.0 Full Speed compatible Synchronous and asynchronous bit bang interface options with RD# and WR# strobes FIFO receive and transmit buffers for high data throughput

Dimensions & Weight
Weight	0.35

Additional Information
First Listed on Newegg	November 08, 2012

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies

Return for refund within: 45 days

Return for replacement within: 1 year

This item is covered by Newegg.ca's 45/1 Return Policy.
Read full return policy for details.
