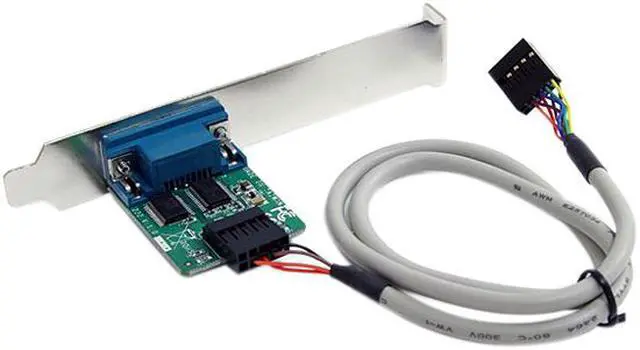

Motherboard USB Header to Serial Adapter The ICUSB232INT1 USB to RS232 Serial Adapter lets you add an RS232 port to any desktop system that is equipped with an available USB motherboard header. SHIP ONLY
Learn more about the STARTECH ICUSB232INT1
Model
Brand
StarTech.com
Model
ICUSB232INT1
Details
Changer Type
USB to DB9 (RS-232)
Specifications
Cable Length: 24" Connector Types: 1 - DB9 Male Internal Ports: 1 - 9 pin IDC (Motherboard Header) Female Number of Ports: 1
Card Type: Low / Standard Profile Max Baud Rate: 115200 Kbps Data Bits: 7, 8 Stop Bits: 1, 2 Parity: None, Odd, Even, Space, Mark Bus Type: USB 2.0
Chipset ID: FTDI FT232R Microsoft WHQL Certified: Yes OS Compatibility: Windows 98/ 98SE/ 2000/ XP(32/64bit)/ Server 2003(32/64bit)/ Vista(32/64bit)/ 7(32/64bit)/ Server 2008 R2, Windows XP Embedded/ CE 4.2/ CE 5.0/ CE 6.0, Mac OS 8, 9, 10.4.x/ Linux 2.4, 2.6
Applications: Perfect for system builders looking to add legacy functionality to newer motherboards that lack an integrated RS232 port Connect, monitor and control industrial/automotive sensors and equipment Connect bar code scanners, receipt printers and other serial devices to an internal USB motherboard header Connect a satellite receiver, serial modem, or PDA with serial sync Connect and program LED and Digital signage boards with serial communication ports
Product Dimensions: 0.47" x 1.77" x 4.84" Product Weight: 1.09 oz (31 g)
Operating Temperature: -40°C to 85°C (-40°F to 185°F) Storage Temperature: -65°C to 85°C (-85°F to 185°F)
Features
Features
Supports COM port retention
Bus-Powered – no separate power supply or battery required
Single chip USB to asynchronous serial data transfer interface
UHCI/OHCI/EHCI host controller compatible
USB 2.0 Full Speed compatible
Synchronous and asynchronous bit bang interface options with RD# and WR# strobes
FIFO receive and transmit buffers for high data throughput
