Easily connect and hot swap two 2.5". SATA hard drives or SSDs through a single 3.5" front bay
Increase drive capacity or performance or data redundancy with multiple RAID options: RAID 0 / RAID 1 / spanning or JBOD
Trayless and hot-swappable
Supports SATA I / II and III (up to 6 Gbps)
Durable aluminum
HDD Rack / hard drive tray / SATA backplane / Removable hard drive bay for 3.5 bay / Hot swap cage / hard drive backplane / hdd mounting kit / Hot swap drive tray / Hot swap mobile rack
Overview
Specs
Reviews
Easily connect and hot swap two 2.5 SATA hard drives or SSDs through a single 3.
Learn more about the STARTECH HSB225S3R
Model
Brand
StarTech.com
Model
HSB225S3R
Color
Black
Details
Mobile Rack Drives Support
2 x 2.5" Drives to 3.5" Bay
Mobile Rack Interface
Drive Connectors: 1 x 22 pin SATA Data + Power (7 + 15 pin) Receptacle

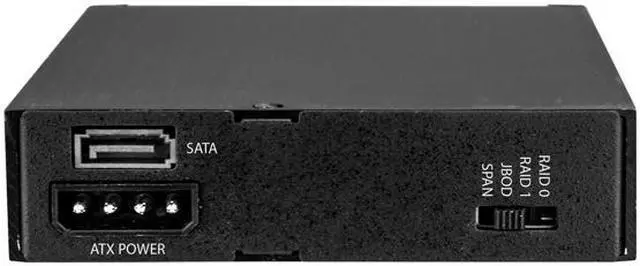

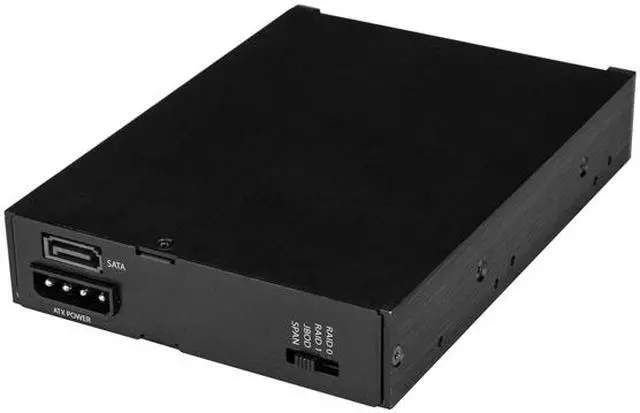

Host Connectors: 1 x Molex (4 pin, PWM) + 1 x 7 pin SATA Data Receptacle
Compatible Products
2.5"
Specifications
Chipset ID: ASMedia - ASM1092R
Compatible Drive Types: SATA
Drive Installation: Removable
Drive Size: 2.5in
Interface : SATA
Number of 2.5 inch bays: 2
Number of Drives: 2
Supported Drive Height(s): 5mm / 7mm / 9.5mm
Hot Swap Capability: Yes Insertion Rating: 50,000 Port Multiplier: Yes RAID: Yes S.M.A.R.T. Support: Yes Supported RAID Modes: RAID 0 (Striped Disks) RAID 1 (Mirrored Disks) BIG (Spanning or Concatenation) JBOD - (Just a Bunch of Disks)
TRIM Support: Yes
Type and Rate: SATA III (6 Gbps)
Features
Features

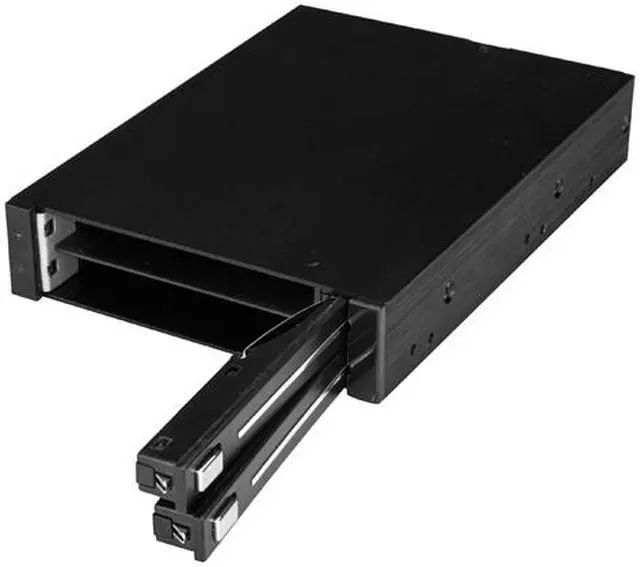

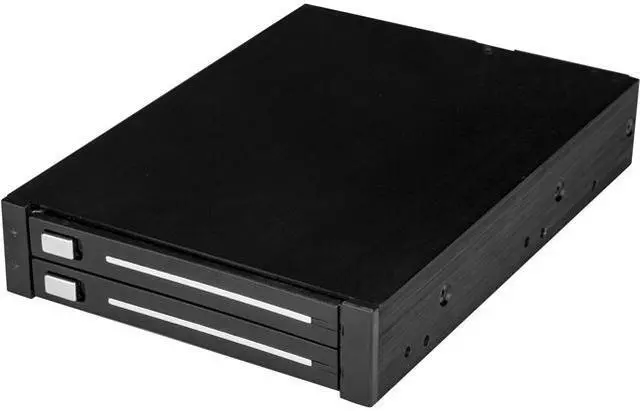

This HDD rack lets you install two 2.5" SATA hard drives or solid-state drives into a single 3.5" front bay. With configurable RAID support, the SATA drive rack provides an ideal data storage solution.
Increase performance and data redundancy Configure and arrange your drives for increased drive capacity, performance, or data redundancy, with built-in RAID functionality. With multiple RAID options, such as RAID 0, RAID 1, spanning, or JBOD, you can build the data storage solution that works best for you.
Hot swap your SATA drives This SATA backplane is trayless and hot-swappable, which makes it easy to install and remove your drives from your computer system when required, without having to open the case every time. It also provides a more convenient way to create backups for data recovery and archiving.
Designed for durability and trouble-free use The removable hard-drive bay/backplane features durable aluminum construction for long-lasting performance. The SATA backplane also has LED indicators for power and hard drive activity, and drive status, which makes it easy to monitor the status of your hard drives and RAID array.
Package Contents
1 - mobile rack 1 - SATA data cable 1 - SATA to Molex adapter 1 - installation screw kit 1 - quick-start guide
