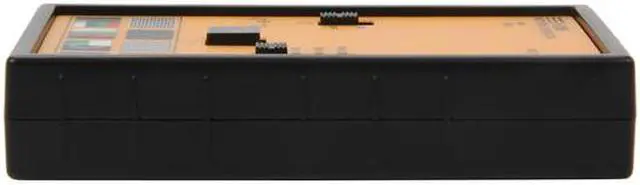

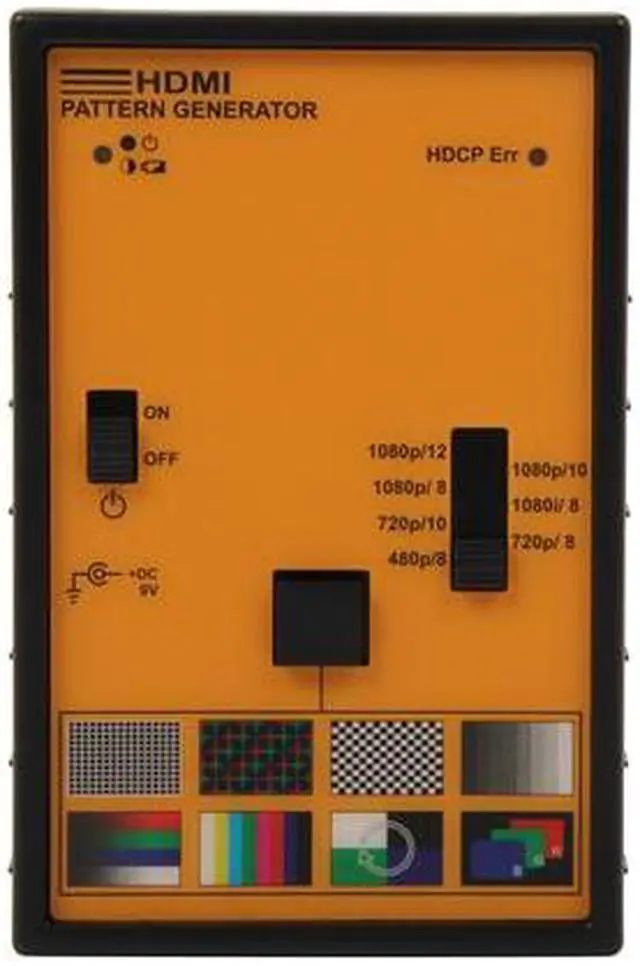

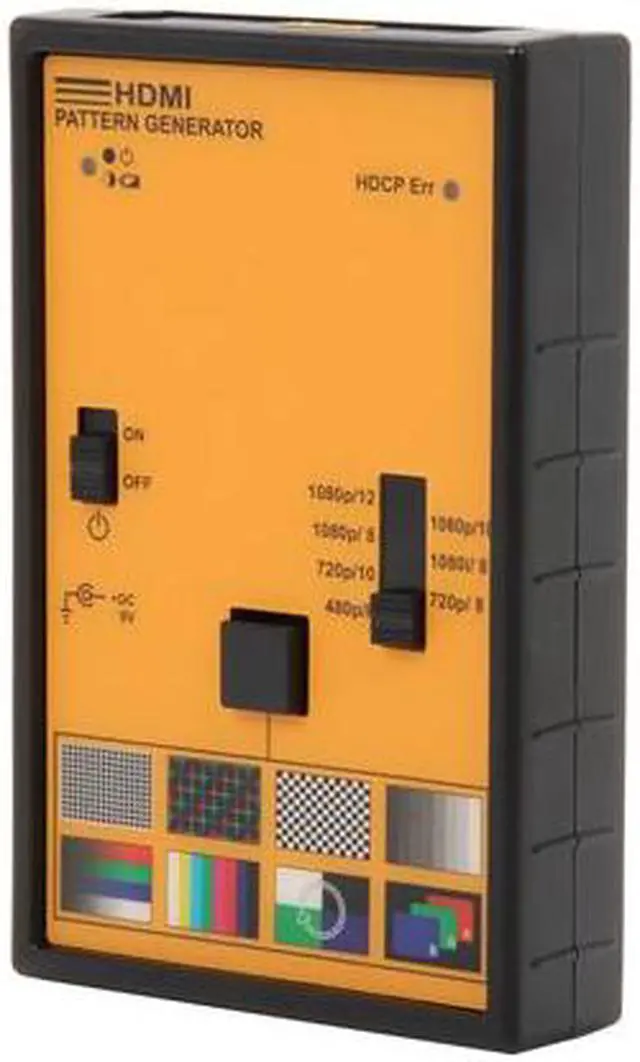

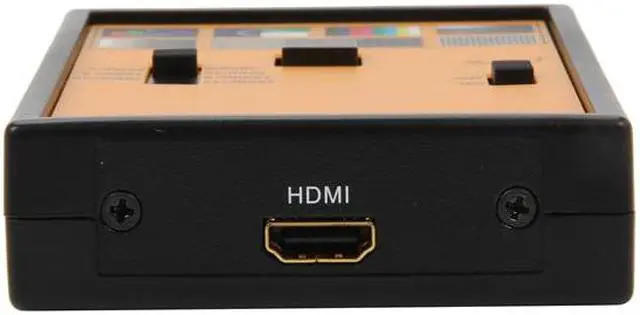

StarTech.com HDMIPATTERN2 HDMI / DVI Video Test Pattern Signal Generator
- HDMI Interface
Specs
Reviews
Learn more about the STARTECH HDMIPATTERN2
| Brand | StarTech.com |
|---|---|
| Model | HDMIPATTERN2 |
| Type | Video Adapter/Converter |
|---|---|
| Specifications | Industry Standards: High Speed HDMI, HDCP 1.2 Connector Type(s): 1 x HDMI (19 pin) Female Supported Resolutions: 1080p (60Hz - 12 bit), 1080p (60Hz - 10 bit), 1080p (60Hz - 8 bit), 1080i (60Hz - 8 bit), 720p (60Hz - 10 bit), 720p (60Hz - 8 bit), and 480p (60Hz - 8 bit) General Specifications: 8, Yes LED Indicators: 1 x HDCP Error indicator (On indicates HDCP verification fail) 1 x Power indicator (Solid - power on, Flashing - low battery) Power Adapter Included Input Voltage: 115 AC Input Current: 15mA Output Voltage: 9 DC Output Current: 0.6A Center Tip Polarity: Positive Plug Type: M Operating Temperature: 0 to 70 degree Storage Temperature: -20 to 85 degree Humidity: 0%~95% Enclosure Type: Plastic Product Length: 5.2 in [132 mm] Product Width: 3.4 in [87 mm] Product Height: 1.1 in [28 mm] Product Weight: 5.3 oz [150 g] |
| Interface | HDMI |
|---|
| Features | 8 built-in video test patterns Supports resolutions up to 1080p @ 60Hz High Speed HDMI, HDCP 1.2 compliant Test color, linear, and HDCP functionality Easy to use resolution selector switch and pattern selection button Powered using the supplied AC adapter or a 9V battery Applications - Can be used with both HDMI and DVI displays using an HDMI to DVI cable - Save time and money by quickly determining what may need to be corrected with an HDTV - Use to test and maintain studio equipment such as HDTV displays, cabling, and recording equipment - Great for Digital Signage installers, TV engineers or technicians looking to test and calibrate a DTV display - As an educational tool, teachers can use this device to train their students about the latest DTV quality test technologies - Use in a retail setting to show side-by-side comparisons of quality - Perfect for an installer, integrator, or A/V enthusiast calibrating to get them most out of equipment |
|---|
| Package Contents | 1 x HDMI Test Pattern Generator 1 x 9V Battery 1 x HDMI Cable 1 x Power Adapter 1 x Instruction Manual |
|---|
| First Listed on Newegg | January 31, 2013 |
|---|
