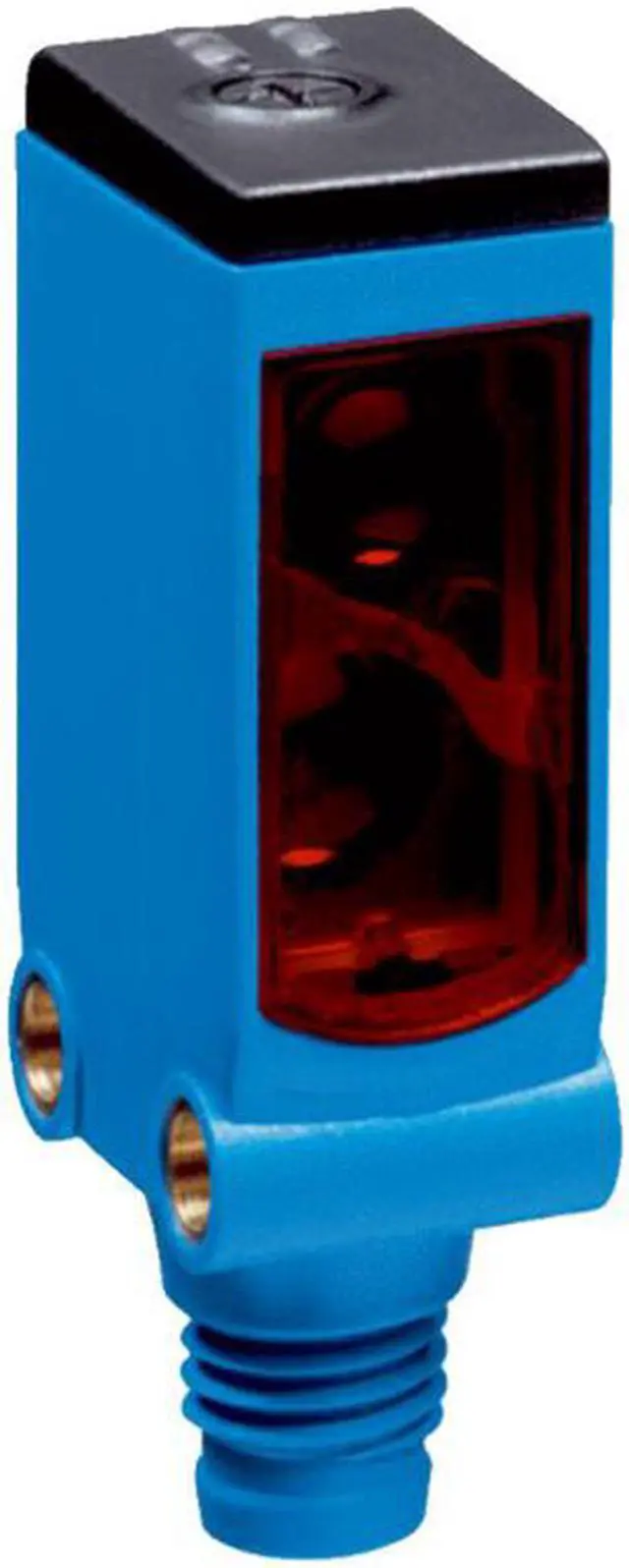

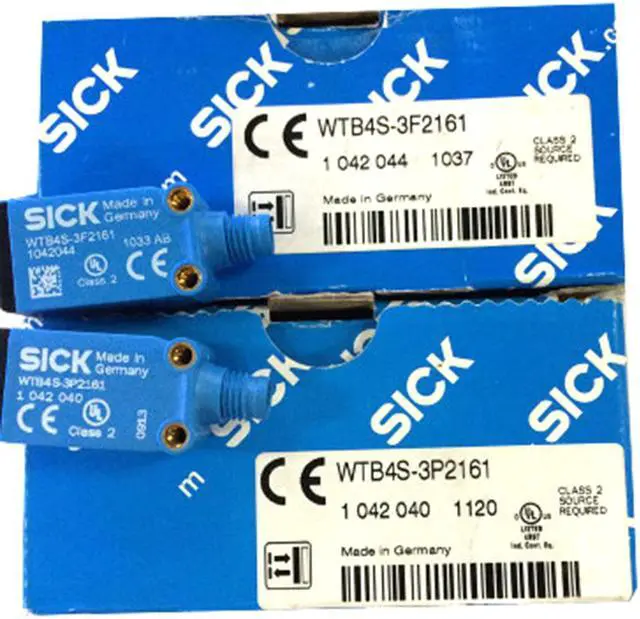

SICK WTB4S-3P2161 Miniature photoelectric sensors ,PNP,New

FEATURES
Sensor/ detection principle Photoelectric proximity sensor, Background suppression

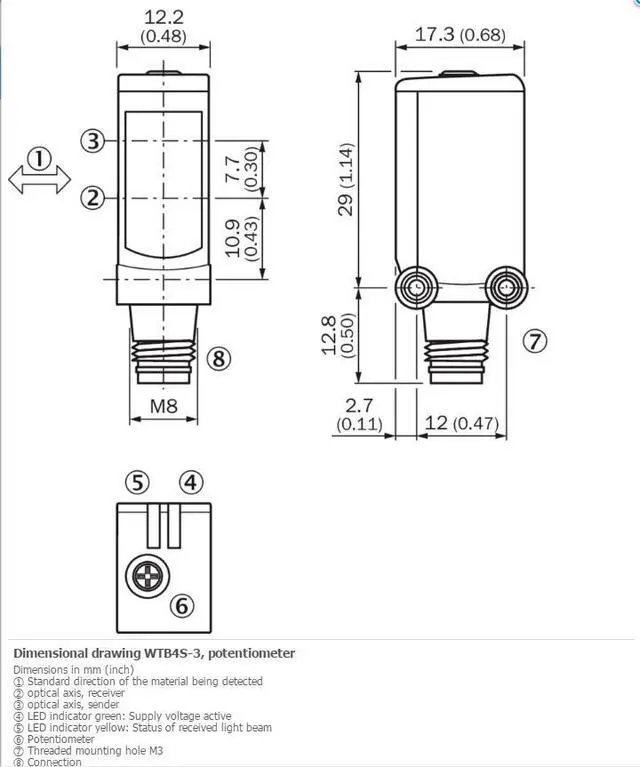

Dimensions (W x H x D) 12.2 mm x 41.8 mm x 17.3 mm
Housing design (light emission) Rectangular
Sensing range max. 4 mm ... 180 mm 1)
Sensing range 10 mm ... 180 mm 1)
Type of light Visible red light
Light source PinPoint LED 2)
Light spot size (distance) Ø 6.5 mm (150 mm)
Wave length 650 nm
Adjustment Potentiometer, 5 turns

MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple < 5 Vpp 2)
Power consumption 20 mA 3)
Switching output PNP
Switching mode Light switching
Output current Imax. = 100 mA
Response time < 0.5 ms 4)
Switching frequency 1,000 Hz 5)
Connection type Connector M8, 3-pin
Circuit protection
A 6)
C 7)
D 8)
Protection class III
Weight 30 g
Housing material Plastic, ABS
Optics material Plastic, PMMA
Enclosure rating
IP67
IP66
Ambient operating temperature –40 °C ... +60 °C
Ambient storage temperature –40 °C ... +75 °C
UL File No. NRKH.E181493 & NRKH7.E181493
