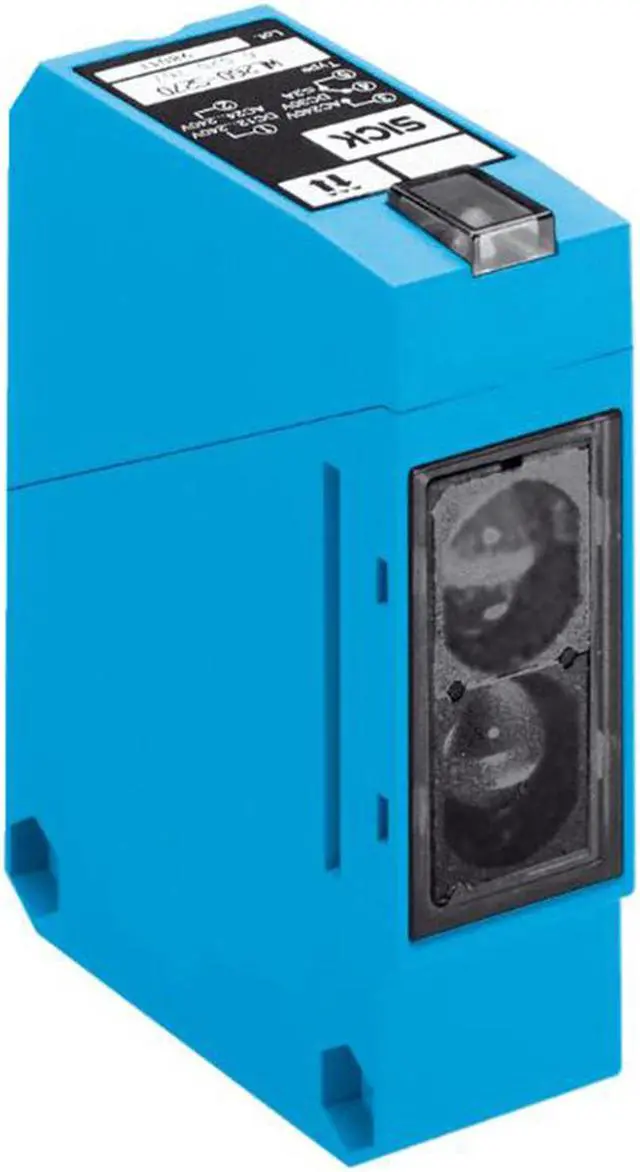

SICK WT260-F470 Photoelectric proximity sensor ,PNP,New
- SICK WT260-F470 Photoelectric proximity sensor ,PNP,New
+
+
Overview
Specs
Reviews
FEATURES
Sensor/ detection principle Photoelectric proximity sensor, energetic

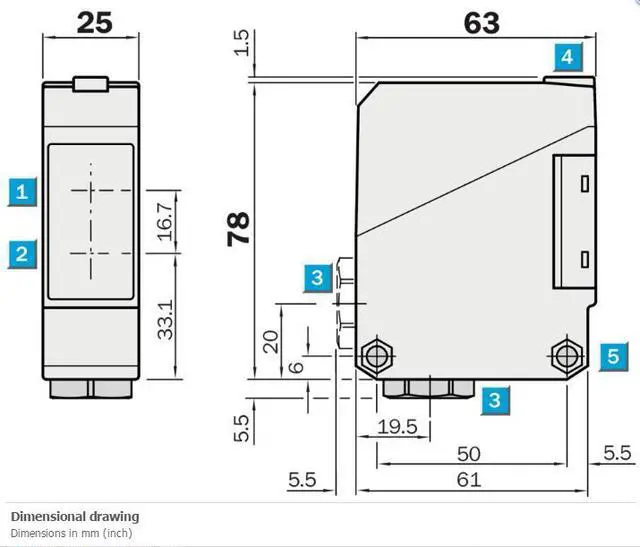

Dimensions (W x H x D) 25 mm x 78 mm x 63 mm
Housing design (light emission) Rectangular
Sensing range max. 5 mm ... 1,500 mm 1)
Sensing range 5 mm ... 1,000 mm
Type of light Visible red light
Light source LED 2)
Light spot size (distance) Ø 45 mm (1,000 mm)
Angle of dispersion Approx. 2.5°
Adjustment Potentiometer, 270°
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple = 5 Vpp 2)
Power consumption 35 mA 3)
Switching output PNP
Switching mode Light/dark switching
Switching mode selector Selectable via light/dark selector
Output current Imax. 100 mA
Response time = 0.5 ms 4)
Switching frequency 1,000 Hz 5)
Connection type Male connector M12, 4-pin
Circuit protection
A 6)
B 7)
C 8)
D 9)
Protection class II 10)
Weight 120 g
Housing material Plastic, ABS
Optics material Plastic, PC
Enclosure rating IP67
Items supplied Mounting bracket BEF-W260
Test input sender off TE to VS
Ambient operating temperature –25 °C ... +55 °C
Ambient storage temperature –40 °C ... +70 °C
UL File No. NRNT2.E128350 & NRNT8.E128350
Sensor/ detection principle Photoelectric proximity sensor, energetic
Dimensions (W x H x D) 25 mm x 78 mm x 63 mm
Housing design (light emission) Rectangular
Sensing range max. 5 mm ... 1,500 mm 1)
Sensing range 5 mm ... 1,000 mm
Type of light Visible red light
Light source LED 2)
Light spot size (distance) Ø 45 mm (1,000 mm)
Angle of dispersion Approx. 2.5°
Adjustment Potentiometer, 270°
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple = 5 Vpp 2)
Power consumption 35 mA 3)
Switching output PNP
Switching mode Light/dark switching
Switching mode selector Selectable via light/dark selector
Output current Imax. 100 mA
Response time = 0.5 ms 4)
Switching frequency 1,000 Hz 5)
Connection type Male connector M12, 4-pin
Circuit protection
A 6)
B 7)
C 8)
D 9)
Protection class II 10)
Weight 120 g
Housing material Plastic, ABS
Optics material Plastic, PC
Enclosure rating IP67
Items supplied Mounting bracket BEF-W260
Test input sender off TE to VS
Ambient operating temperature –25 °C ... +55 °C
Ambient storage temperature –40 °C ... +70 °C
UL File No. NRNT2.E128350 & NRNT8.E128350
