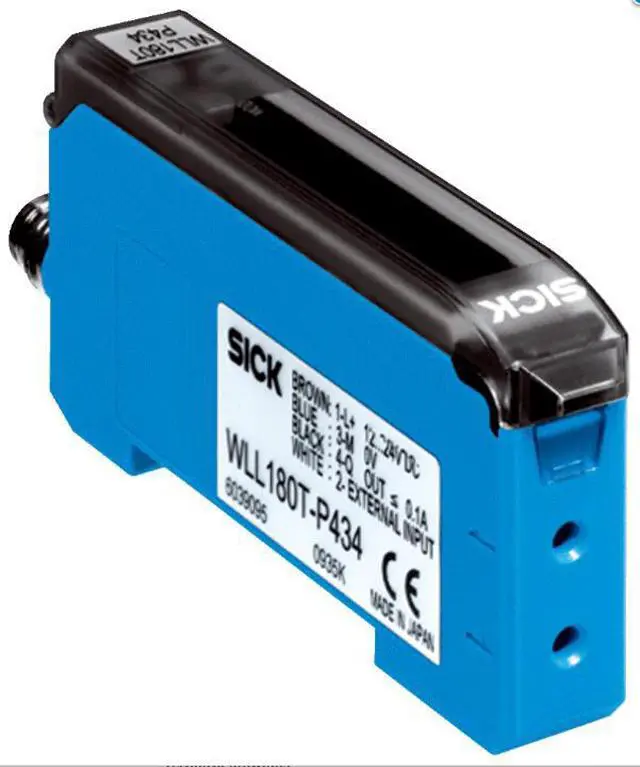

SICK WLL180T-P432 Fiber-optic sensors ,PNP,New

Features
Device type Stand-alone

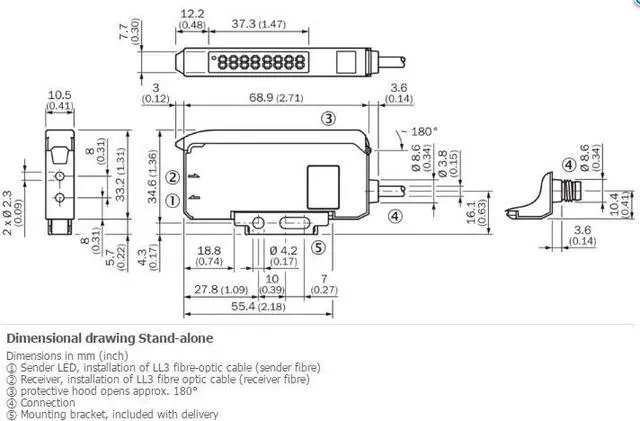

Dimensions (W x H x D) 10.5 mm x 34.6 mm x 71.9 mm
Housing design (light emission) Rectangular
Sensing range max. 0 m ... 20 m, Through-beam system 1) 2)
Sensing range
0 mm ... 1,400 mm, Proximity system 3) 4)
0 ... 18 m, Through-beam system 1) 2)
Focus 5)
Type of light Visible red light
Light source LED 6)
Angle of dispersion Approx. 65° 5)
Wave length 650 nm
Adjustment
Menu-controlled
Single teach-in button
Cable
Time type
Without time delay
Off delay
On delay
ON and OFF delay
One shot
Delay time Programmable, 0 ms, 9,999 ms
Indication Display
Display LED status display / 2x 4-character digital dual displays, Set value (green indicator) and actual value (red indicator) are displayed simultaneously, display of parameters

MECHANICS/ELECTRONICS
Mechanics/electronics
Supply voltage 12 V DC ... 24 V DC 1)
Ripple = 10 % 2)
Power consumption 50 mA 3)
Switching output PNP
Number of switching outputs 1
Switching mode Light/dark switching
Switching mode selector Manually selectable
Output current Imax. = 100 mA
Response time = 16 µs, = 70 µs, = 250 µs, = 2,000 µs, = 8,000 µs 4)
Switching frequency
31.2 kHz
7.1 kHz
2 kHz
250 Hz
62.5 Hz
Input Multifunctional input MF
Connection type Cable, 4-wire, 2 m 5)
Cable material PVC
Conductor cross-section 0.2 mm2
Circuit protection
A 6)
B 7)
C 8)
D 9)
Protection class III
Weight 25 g
Housing material Plastic, ABS/PC
Enclosure rating IP50 10)

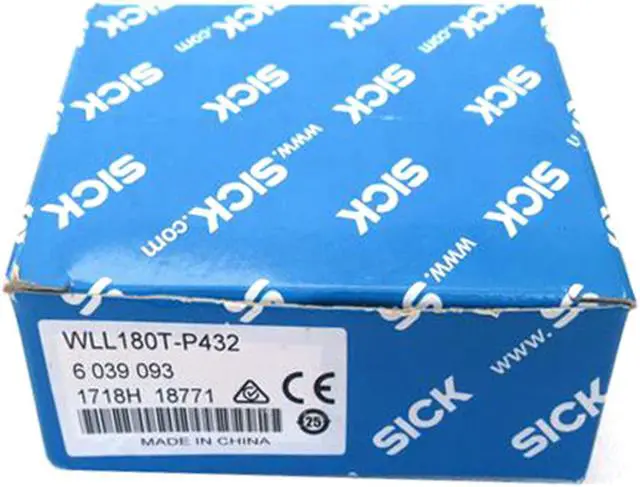

Items supplied BEF-WLL180 mounting bracket
Ambient operating temperature –25 °C ... +55 °C
Ambient storage temperature –40 °C ... +70 °C
UL File No. NRKH.E300503
