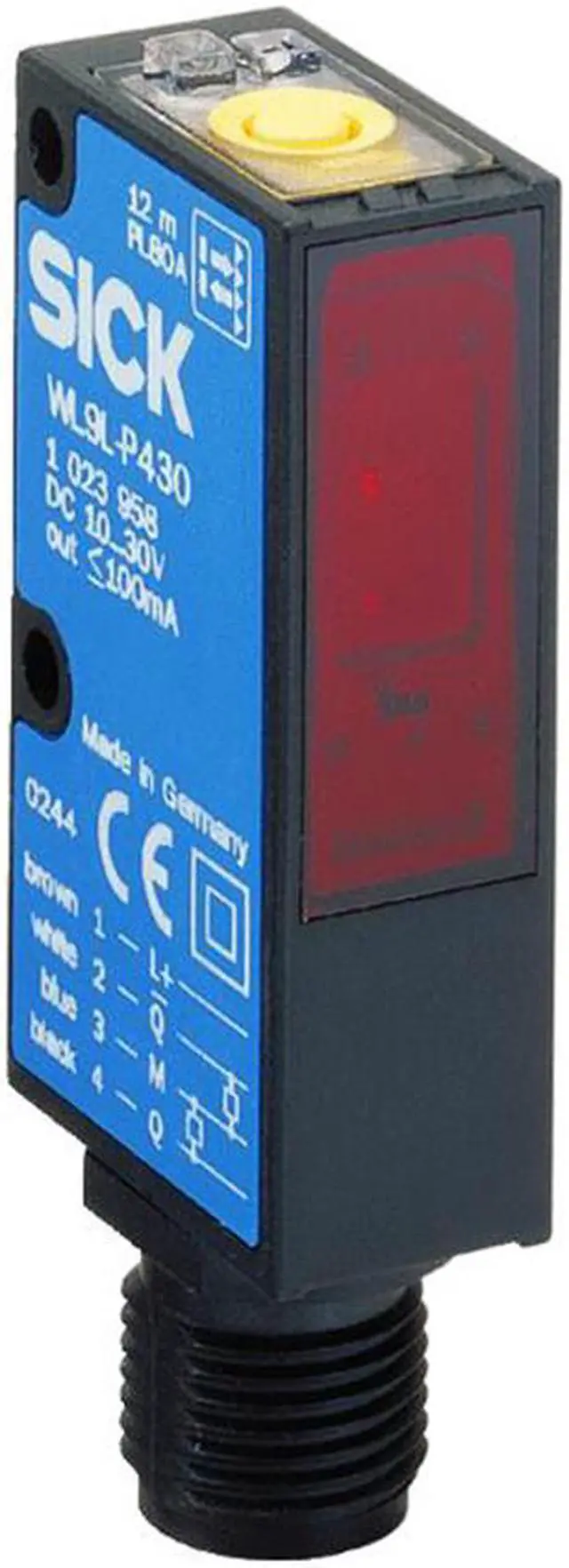

SICK WL9L-P330 Photoelectric Retro-reflective Sensor ,PNP,New
- SICK WL9L-P330 Photoelectric Retro-reflective Sensor ,PNP,New
+
+
Overview
Specs
Reviews
FEATURES
Sensor/ detection principle Photoelectric retro-reflective sensor, Dual lens

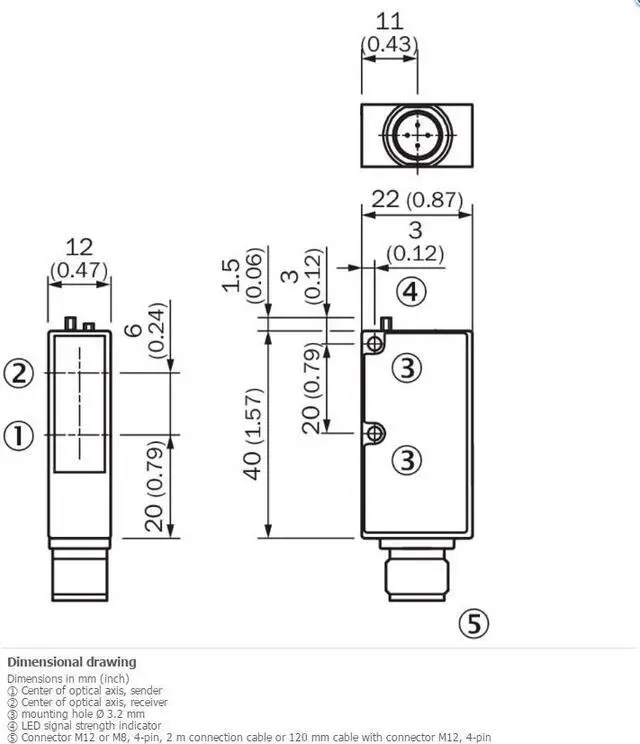

Dimensions (W x H x D) 12 mm x 40 mm x 22 mm
Housing design (light emission) Rectangular
Sensing range max. 0.1 m ... 12 m 1)
Sensing range 0.1 m ... 8 m 1)
Type of light Visible red light
Light source Laser 2)
Light spot size (distance) Ø 1 mm (500 mm)
Laser class 2 (IEC 60825-1 / CDRH 1040.10)
Adjustment Single teach-in button
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple = 5 Vpp 2)
Power consumption 35 mA
Switching output PNP
Output function Complementary
Switching mode Light/dark switching
Signal voltage PNP HIGH/LOW Approx. VS – 2.0 V / 0 V
Output current Imax. < 100 mA
Response time < 0.6 ms 3)
Switching frequency ± 1,000 Hz 4)
Connection type Male connector M8, 4-pin
Circuit protection
A 5)
B 6)
C 7)
Protection class III 8)
Weight 20 g
Polarisation filter ?
Housing material Plastic, ABS
Enclosure rating IP67
Ambient operating temperature –10 °C ... +50 °C
Ambient storage temperature –25 °C ... +70 °C
UL File No. 242368, CDRH-conform
Sensor/ detection principle Photoelectric retro-reflective sensor, Dual lens
Dimensions (W x H x D) 12 mm x 40 mm x 22 mm
Housing design (light emission) Rectangular
Sensing range max. 0.1 m ... 12 m 1)
Sensing range 0.1 m ... 8 m 1)
Type of light Visible red light
Light source Laser 2)
Light spot size (distance) Ø 1 mm (500 mm)
Laser class 2 (IEC 60825-1 / CDRH 1040.10)
Adjustment Single teach-in button
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple = 5 Vpp 2)
Power consumption 35 mA
Switching output PNP
Output function Complementary
Switching mode Light/dark switching
Signal voltage PNP HIGH/LOW Approx. VS – 2.0 V / 0 V
Output current Imax. < 100 mA
Response time < 0.6 ms 3)
Switching frequency ± 1,000 Hz 4)
Connection type Male connector M8, 4-pin
Circuit protection
A 5)
B 6)
C 7)
Protection class III 8)
Weight 20 g
Polarisation filter ?
Housing material Plastic, ABS
Enclosure rating IP67
Ambient operating temperature –10 °C ... +50 °C
Ambient storage temperature –25 °C ... +70 °C
UL File No. 242368, CDRH-conform
