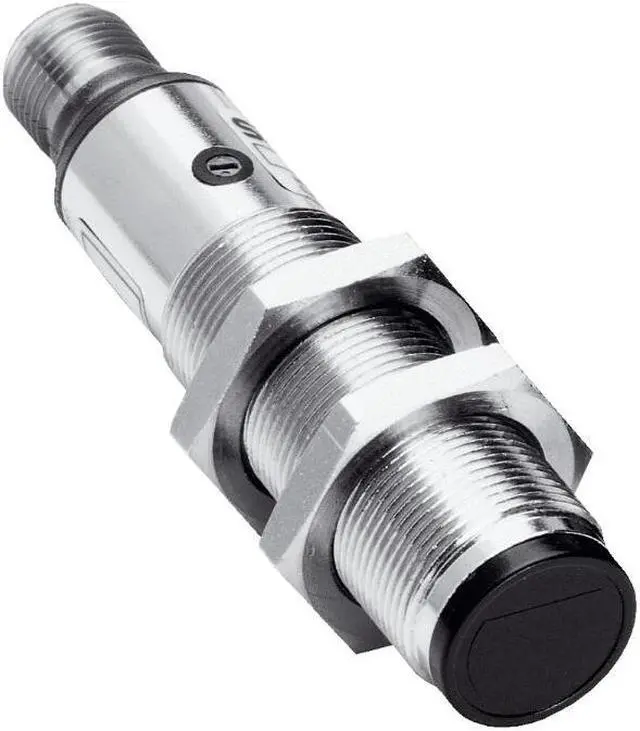

SICK VTE18-4N8240 Photoelectric proximity sensor ,NPN New
- SICK VTE18-4N8240 Photoelectric proximity sensor ,NPN New
+
+
Overview
Specs
Reviews
FEATURES
Sensor/ detection principle Photoelectric proximity sensor, energetic
Housing design (light emission) Cylindrical
Housing length 78 mm
Thread diameter (housing) M18 x 1
Optical axis Axial
Sensing range max. 10 mm ... 800 mm 1)
Sensing range 10 mm ... 700 mm
Type of light Infrared light
Light source LED 2)
Light spot size (distance) Ø 40 mm (800 mm)
Angle of dispersion Approx. 2.8°
Adjustment Potentiometer, 270° (Sensing range)
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple = 10 % 2)
Power consumption 30 mA 3)
Switching output NPN 4)
Switching mode Light/dark switching 4)
Switching mode selector Selectable via L/D control cable
Output current Imax. 100 mA
Response time = 2 ms 5)
Switching frequency 250 Hz 6)
Connection type Male connector M12, 4-pin
Circuit protection
A 7)
B 8)
C 9)
D 10)
Protection class III
Weight 120 g
Housing material Metal, Nickel-plated brass
Optics material Plastic, PMMA
Enclosure rating IP67
Ambient operating temperature –25 °C ... +70 °C
UL File No. NMFT2.E175606
Sensor/ detection principle Photoelectric proximity sensor, energetic
Housing design (light emission) Cylindrical
Housing length 78 mm
Thread diameter (housing) M18 x 1
Optical axis Axial
Sensing range max. 10 mm ... 800 mm 1)
Sensing range 10 mm ... 700 mm
Type of light Infrared light
Light source LED 2)
Light spot size (distance) Ø 40 mm (800 mm)
Angle of dispersion Approx. 2.8°
Adjustment Potentiometer, 270° (Sensing range)
MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC 1)
Ripple = 10 % 2)
Power consumption 30 mA 3)
Switching output NPN 4)
Switching mode Light/dark switching 4)
Switching mode selector Selectable via L/D control cable
Output current Imax. 100 mA
Response time = 2 ms 5)
Switching frequency 250 Hz 6)
Connection type Male connector M12, 4-pin
Circuit protection
A 7)
B 8)
C 9)
D 10)
Protection class III
Weight 120 g
Housing material Metal, Nickel-plated brass
Optics material Plastic, PMMA
Enclosure rating IP67
Ambient operating temperature –25 °C ... +70 °C
UL File No. NMFT2.E175606
