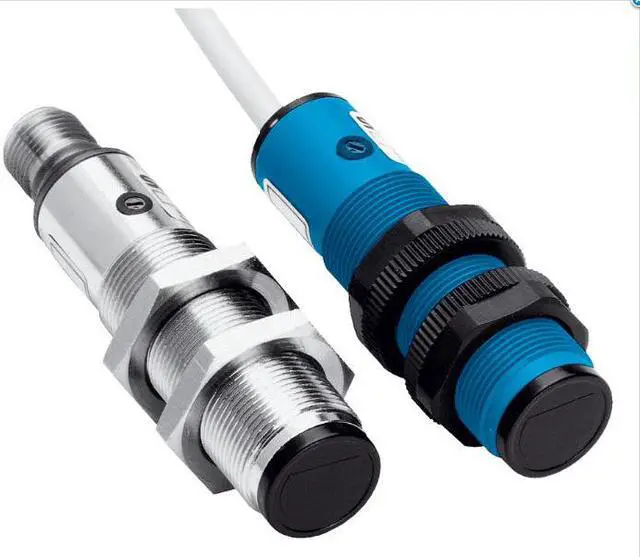

SICK VTE18-4N2140 Photoelectric proximity sensor ,NPN New

Be the first to review this product...
  • SICK VTE18-4N2140 Photoelectric proximity sensor ,NPN New
+
+
Overview
Specs
Reviews
FEATURES
Sensor/ detection principle Photoelectric proximity sensor

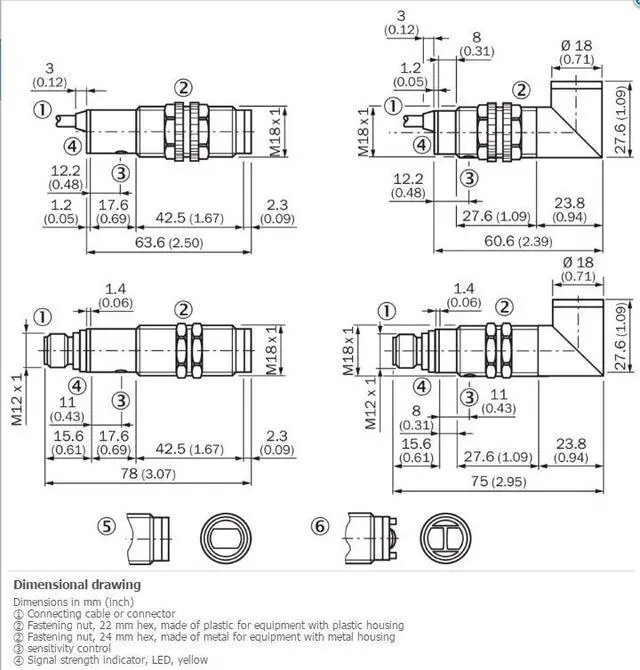

Dimensions (W x H x D) 78 mm
Housing design (light emission) Cylindrical, straight
Sensing range max. 3 mm ... 200 mm 1)
Sensing range 3 mm ... 170 mm 1)
Type of light Infrared light
Light source LED
Angle of dispersion 2.8°
Adjustment Potentiometer

MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 V DC
Ripple = 10 %
Power consumption = 30 mA 1)
Switching output NPN
Switching mode Light/dark switching
Switching mode selector Selectable via L/D control cable
Response time = 2 ms 2)
Connection type Male connector M12, 4-pin
Housing material Metal, Brass nickel-plated, plastic
Optics material Plastic, PMMA
Enclosure rating IP67
Ambient operating temperature –25 °C ... +70 °C
Ambient storage temperature –25 °C ... +70 °C
UL File No. NMFT2.E175606
