SICK MM18-70APS-ZUK Magnetic proximity sensors ,PNP,New

Features
Housing Cylindrical thread design
Housing Short-body
Thread size M18 x 1
Diameter Ø 18 mm
Sensing range Sn 0 mm ... 70 mm 1)
Safe sensing range Sa 56.7 mm
Magnetic sensitivity 0.7 mT
Switching frequency 1,000 Hz
Connection type Cable, 3-wire, 2 m 2)
Switching output PNP
Output function NO
Electrical wiring DC 3-wire
Magnetic alignment Axial
Enclosure rating IP67 3)

MECHANICS/ELECTRONICS
Mechanics/electronics
Supply voltage 10 V DC ... 30 V DC
Ripple = 10 % 1)
Voltage drop = 2 V 2)
Current consumption 10 mA 3)
Time delay before availability = 20 ms
Hysteresis 1 % ... 10 %
Reproducibility = 1 % 4)
Temperature drift (of Sr) ± 10 %
EMC According to EN 60947-5-2
Continuous current Ia = 200 mA
Cable material PUR
Short-circuit protection ? 5)
Reverse polarity protection ?
Power-up pulse protection ?
Shock and vibration resistance 30 g, 11 ms / 10 ... 55 Hz, 1 mm
Ambient operating temperature –25 °C ... +75 °C
Housing material Metal, Nickel-plated brass

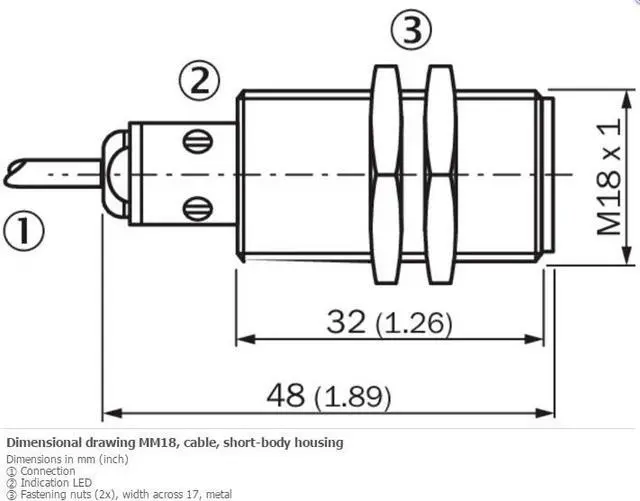

Housing length 48 mm
Thread length 32 mm
Tightening torque, max. 40 Nm
Items supplied Fastening nuts (2 x)
Special feature Short-body
