SICK MM12-60APS-ZUK Magnetic proximity sensors PNP,New

Features Housing Cylindrical thread design Housing Short-body Thread size M12 x 1 Diameter Ø 12 mm Sensing range Sn 0 mm... 60 mm 1) Safe sensing range Sa 48.6 mm Magnetic sensitivity 1 mT Switching frequency 1, 000 Hz Connection type Cable, 3-wire, 2 m 2) Switching output PNP Output function NO Electrical wiring DC 3-wire Magnetic alignment Axial Enclosure rating IP67 3) MECHANICS/ELECTRONICS Mechanics/electronics Supply voltage 10 V DC... 30 V DC Ripple = 10 % 1) Voltage drop = 2 V 2) Current consumption 10 mA 3) Time delay before availability = 20 ms Hysteresis 1 %.

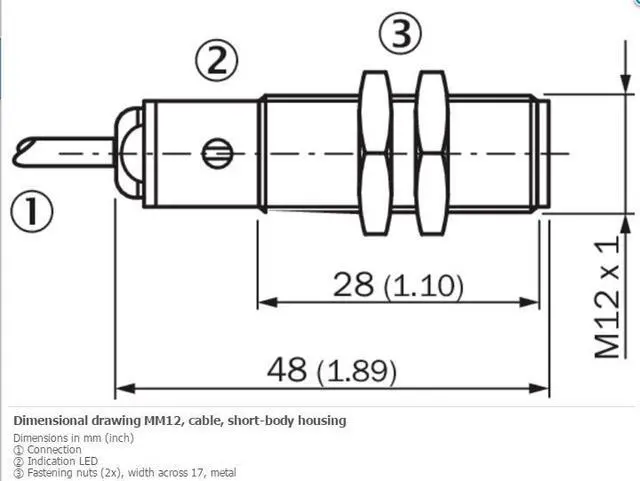

.. 10 % Reproducibility = 1 % 4) Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia = 200 mA Cable material PUR Short-circuit protection? 5) Reverse polarity protection? Power-up pulse protection? Shock and vibration resistance 30 g, 11 ms / 10... 55 Hz, 1 mm Ambient operating temperature –25 °C... +75 °C Housing material Metal, Nickel-plated brass Housing length 48 mm Thread length 28 mm Tightening torque, max. 15 Nm Items supplied Fastening nuts (2 x) Special feature Short-body
