SICK MHT15-N2317 Photoelectric proximity sensor ,NPN,New

FEATURES
Sensor/ detection principle Photoelectric proximity sensor, energetic
Housing design (light emission) Cylindrical

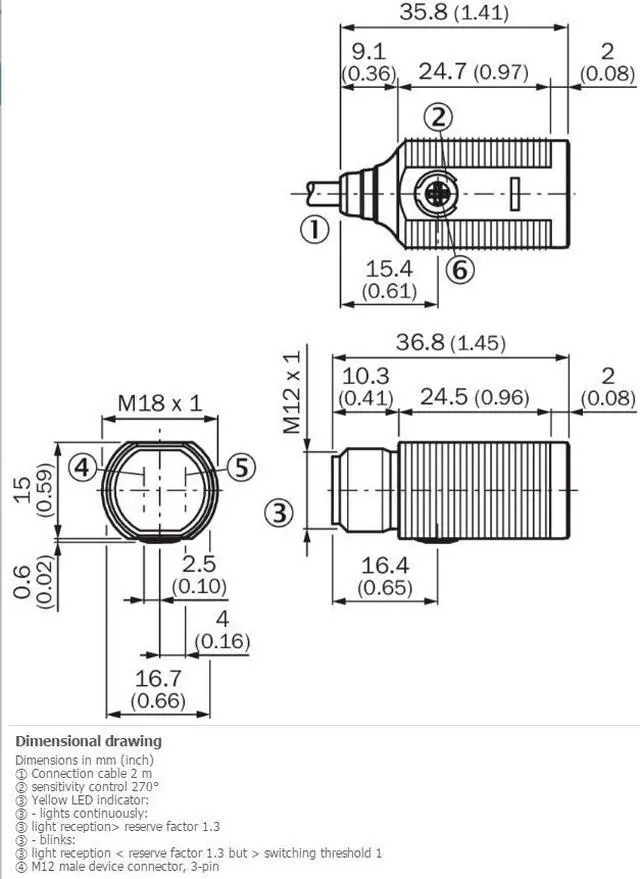

Housing length 35.8 mm
Thread diameter (housing) M18 x 1
Optical axis Axial
Sensing range max. 10 mm ... 100 mm 1)
Sensing range 10 mm ... 90 mm
Type of light Infrared light
Light source LED 2)
Light spot size (distance) Ø 20 mm (100 mm)
Angle of dispersion Approx. 4.5°
Wave length 950 nm
Adjustment Potentiometer, 270° (Sensing range)

MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 1)
Ripple = 5 Vpp 2)
Power consumption 30 3)
Switching output NPN
Switching mode Light switching
Signal voltage NPN HIGH/LOW Uv / < 2,9 V
Output current Imax. 100
Response time = 1.25 ms 4)
Switching frequency 400 Hz 5)
Connection type Cable, 3-wire, 2 m 6)
Cable material PVC
Conductor cross-section 0.14 mm²
Cable diameter Ø 3.7 mm
Circuit protection
A 7)
C 8)
D 9)
Protection class III
Weight 90 g
Housing material Plastic, ABS
Optics material Plastic, PMMA
Enclosure rating
IP67
IP69K
Ambient operating temperature –25 ... +55 °C
Ambient storage temperature –25 ... +70 °C
UL File No. NRKH.E189383 & NRKH7.E189383
