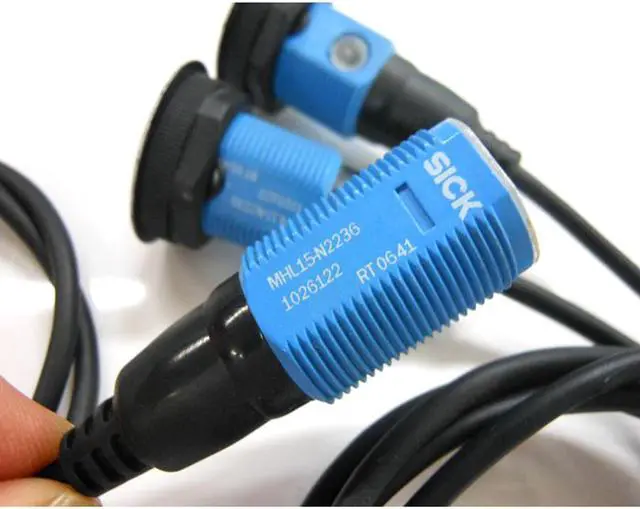

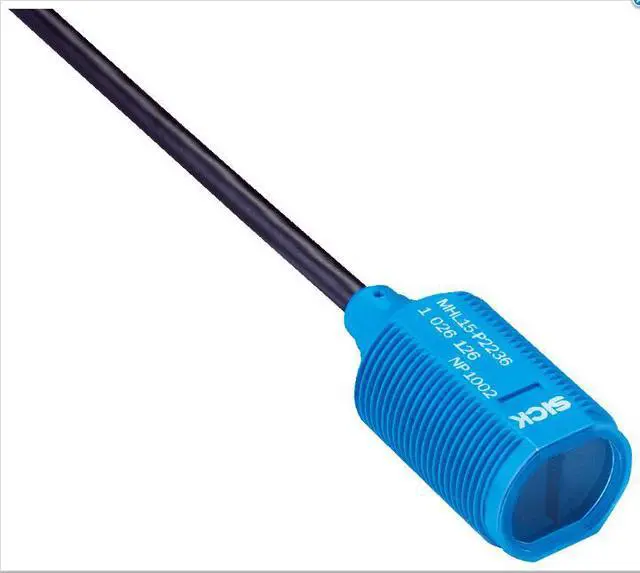

SICK MHL15-N2236 Photoelectric retro-reflective sensor ,NPN ,New

FEATURES
Sensor/ detection principle Photoelectric retro-reflective sensor
Housing design (light emission) Cylindrical

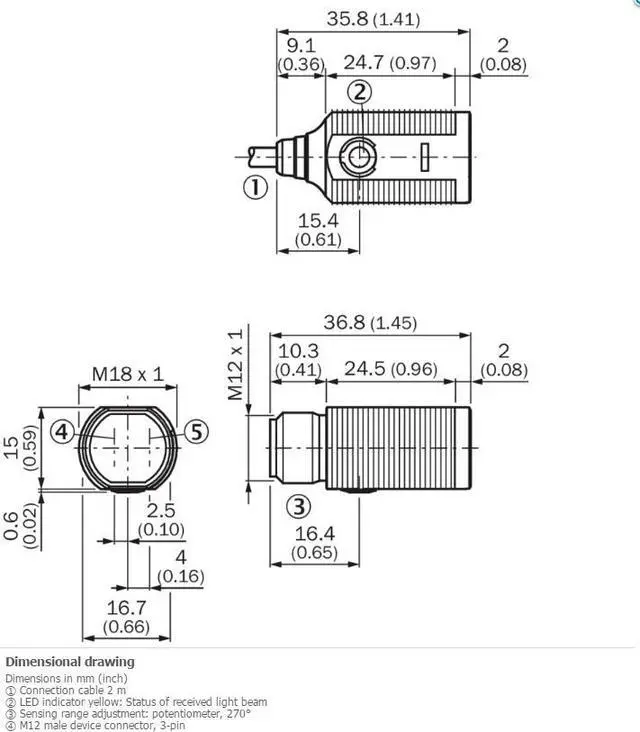

Housing length 35.8 mm
Thread diameter (housing) M18 x 1
Optical axis Axial
Sensing range max. 0.035 m ... 5 m 1)
Sensing range 0.035 m ... 3.5 m 1)
Type of light Visible red light
Light source LED 2)
Light spot size (distance) Ø 80 mm (3.5 m)
Angle of dispersion Approx. 1.5°
Wave length 650 nm
Adjustment None

MECHANICS/ELECTRONICS
Supply voltage 10 V DC ... 30 1)
Ripple = 5 Vpp 2)
Power consumption 30 3)
Switching output NPN
Switching mode Dark switching
Signal voltage NPN HIGH/LOW Uv / < 2,9 V
Output current Imax. 100
Response time = 1.25 ms 4)
Switching frequency 400 Hz 5)
Connection type Cable, 3-wire, 2 m 6)
Cable material PVC
Conductor cross-section 0.14 mm²
Cable diameter Ø 3.7 mm
Circuit protection
A 7)
C 8)
D 9)
Protection class III
Weight 90 g
Polarisation filter ?
Housing material Plastic, ABS
Optics material Plastic, PMMA
Enclosure rating
IP67
IP69K
Ambient operating temperature –25 ... +55 °C
Ambient storage temperature –25 ... +70 °C
UL File No. NRKH.E189383 & NRKH7.E189383
