SICK LL3-TR02 For fiber-optic sensor New

Features
Device type Fibers
Detection principle Through-beam system
For fiber-optic sensor GLL170(T), WLL180T
Fiber length 2 m
Fiber material Polymethylmethacrylat (PMMA)
Jacket material Polyethylen (PE)
Fiber head material Stainless steel 1)

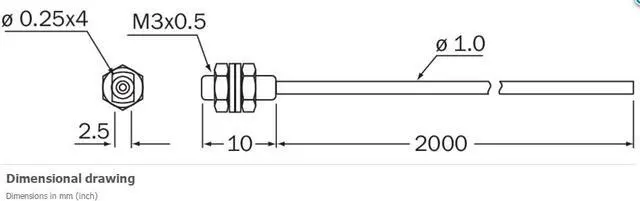

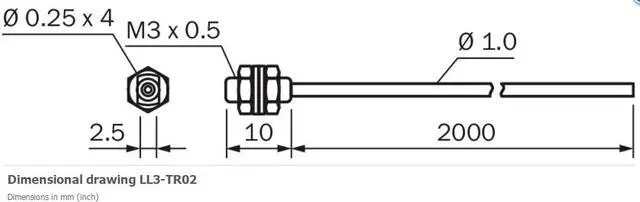

Outer diameter, fiber-optic cable connection 1 mm
Fiber-optic cable cuttable ? 2)
Thread size M3

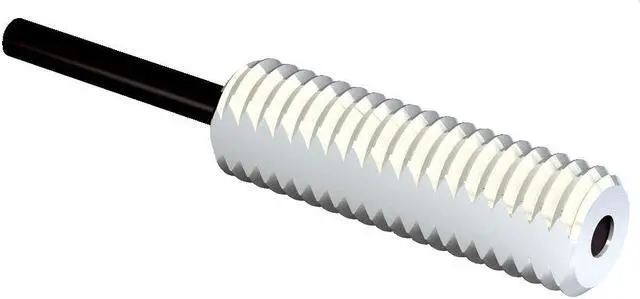

Fiber-optic head design Threaded sleeve
Fiber arrangement Multi-fiber – fiber bundle
Core structure 4 x Ø 0.25 mm Multi-fiber – fiber bundle
Bend radius, fibre-optic cable 4 mm
Angle of dispersion < 60° No
Compatibility with infrared light (1,450 nm) No
Ambient operating temperature –40 °C ... +70 °C
Application High flexible (static), Robotics (dynamic flexible)
Highly flexible/elastic fibers (bend radius 1–4 mm) Yes
Adapter end sleeves required Yes
Angle of dispersion 60°
Integrated lens No
Minimal object diameter 0.1 mm 3)
Special features Flexible fiber-optic cable, extra-small end sleeve

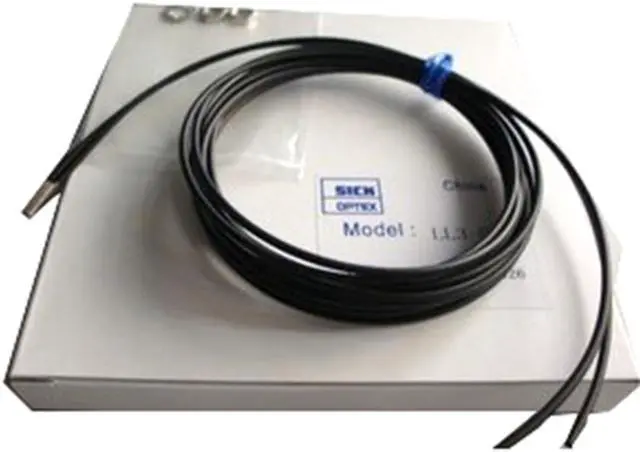

Included with delivery Mounting, 4 x M3 hexagon nut, 4 x washer, adapter sleeves, BF-WLL160-10 (1.0 mm) adapter sleeves, FC fiber cutter (5304141)
Compatibility tip adapters No

MECHANICS/ELECTRONICS
Mechanics/electronics
Bend radius, fibre-optic cable 4 mm
Ambient operating temperature –40 °C ... +70 °C
