SICK LL3-DB03 Fibers New

Features
Device type Fibers
Detection principle Proximity system
For fiber-optic sensor GLL170(T), WLL180T, WLL24 Ex
Fiber length 2 m
Fiber material Polymethylmethacrylat (PMMA)
Jacket material Polyethylen (PE)
Fiber head material Stainless steel 1)

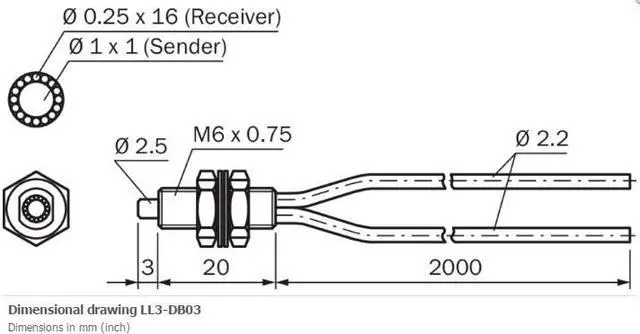

Outer diameter, fiber-optic cable connection 2.2 mm
Fiber-optic cable cuttable ? 2)
Thread size M6
Fiber-optic head design Threaded sleeve
Fiber arrangement Coaxial arrangement
Core structure S: Ø 1 mm, R: 16 x Ø 0,25 mm 3) Coaxial arrangement
Bend radius, fibre-optic cable 25 mm
Angle of dispersion < 60° No
Compatibility with infrared light (1,450 nm) No
Ambient operating temperature –40 °C ... +70 °C
Diameter/thread size from 2 mm taper = 2.5 mm
Length of taper = 3 mm
Highly flexible/elastic fibers (bend radius 1–4 mm) No
Adapter end sleeves required No
Angle of dispersion 60°
Integrated lens No
Minimal object diameter 0.015 mm 4)
Special features Coaxial construction for exact switching
Included with delivery Mounting, 2 x M6 hexagon nut, 2 x washer, FC fiber cutter (5304141)
Compatibility tip adapters No

MECHANICS/ELECTRONICS
Mechanics/electronics
Bend radius, fibre-optic cable 25 mm
Ambient operating temperature –40 °C ... +70 °C
